Dip switch settings, 7commissioning – Lenze E94AYCIB User Manual
Page 46
Commissioning
DIP switch settings
EDK94AYCIB DE/EN/FR/ES/IT 1.0
46
l
H1inbet−ueb−rate einstellen
DIP switch settings

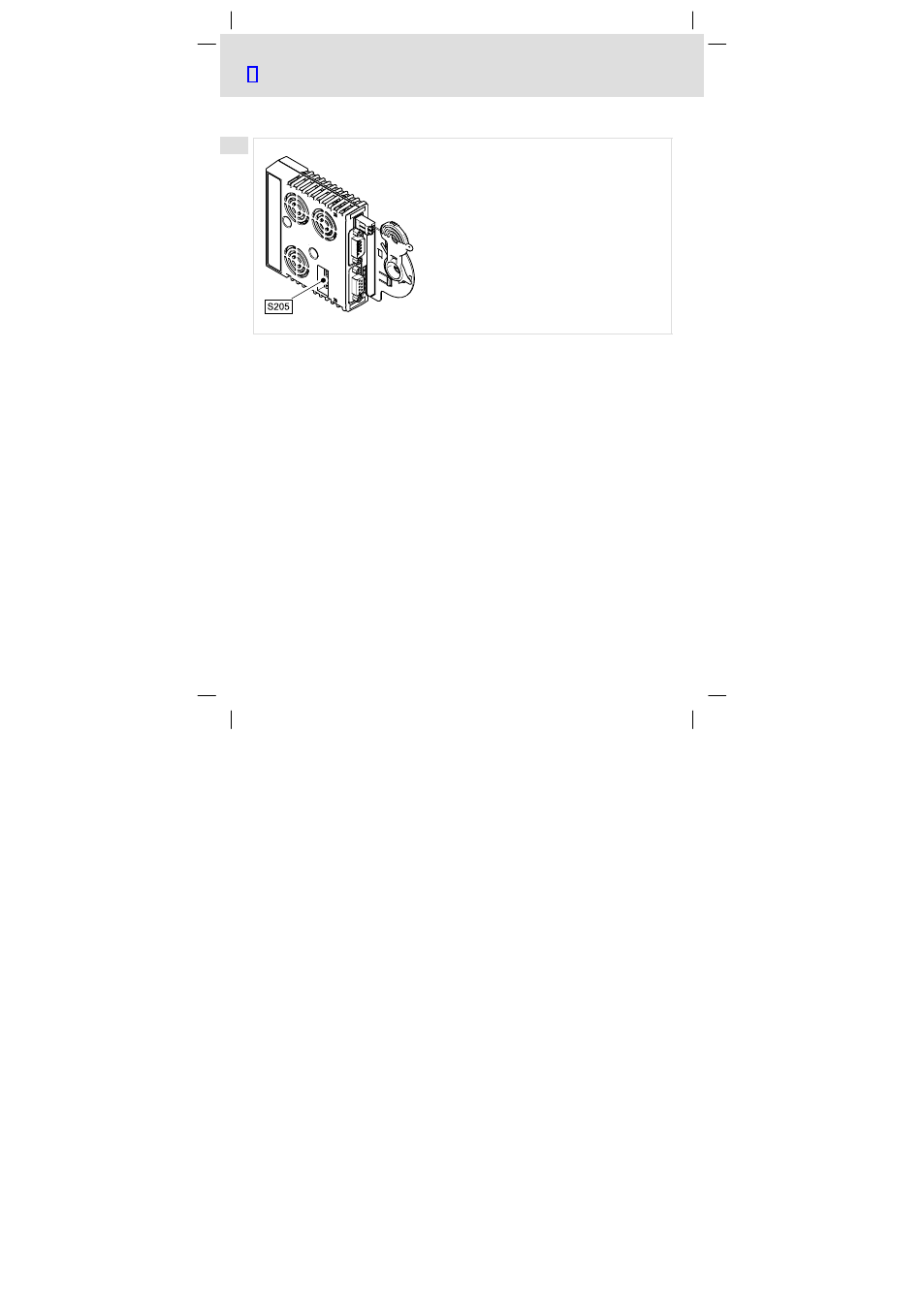

E94YCIB001D
The DIP switches (S205) can be used for adjustment purposes:
ƒ Number of process data words (PD) with switches 1 to 4
ƒ Number of parameter data words (PCP)with switches 5 and 6
ƒ Baud rate with switch 8
Lenze setting: all switches "OFF"
DIP switch 7 does not perform any function.
