Electrical installation
Wiring
Terminal assignment
4
l
44 EDK94ZPS113 DE/EN/FR/ES/IT 4.0
1 0
2 3
a
b
c d
e
M5
U
V
W
BD1/T1
BD2/T2
PE
SSP94MOTL1

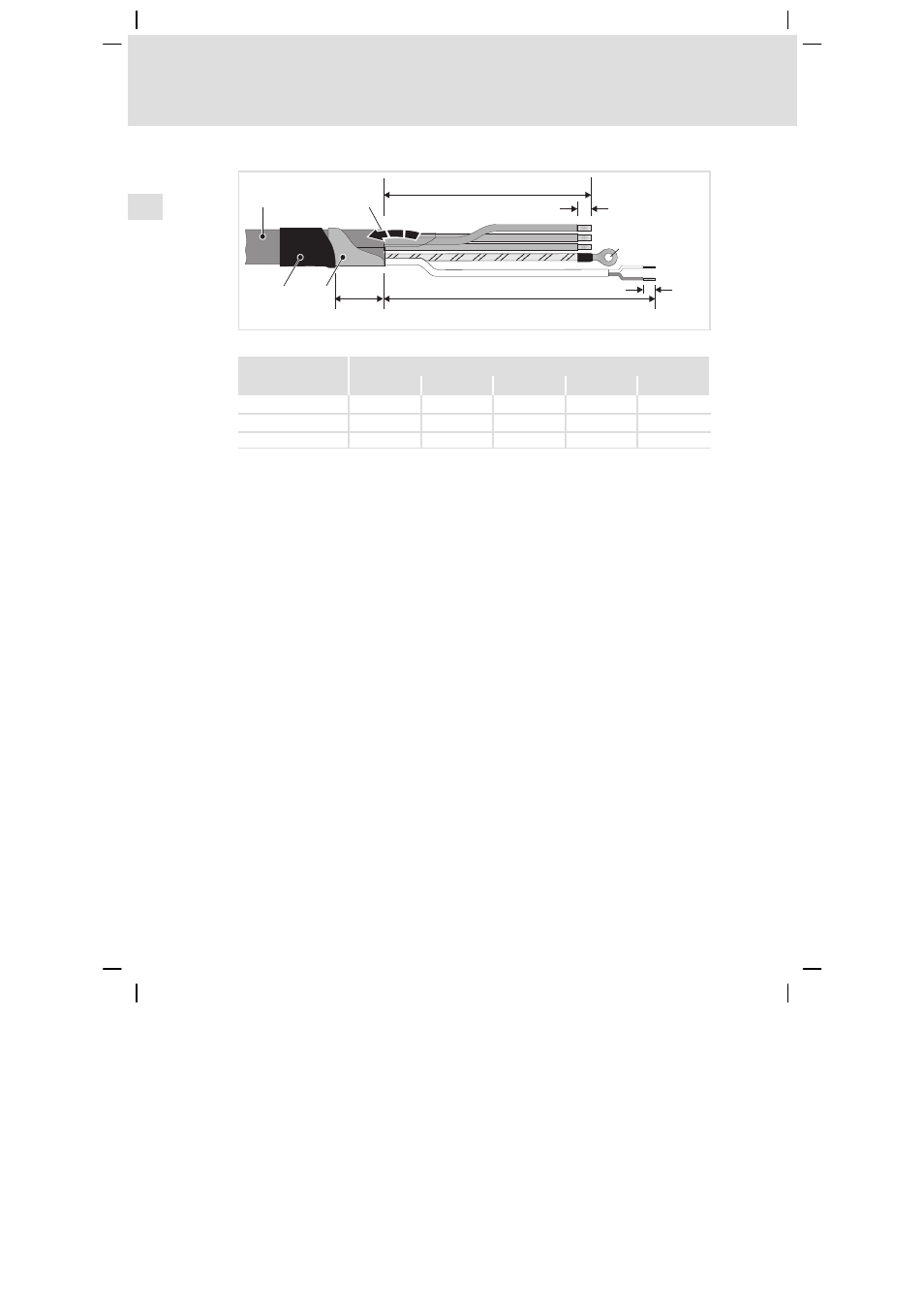

Fig. 4−4 Stripping lengths of the motor cable
Dimensions [mm]
Type a b c d e
Device size 1 80 8 25 150 8
Device size 2 90 8 30 160 8
Device size 3 100 10 30 170 8
How to proceed:
1. Strip the motor cable
0 according to dimensions given.
2. Fold back the shield of the motor cable
1 over the cable sheath.
3. Stabilise the shield with self−adhesive conductive foil 2
(recommendation).
4. Fix the shield and conductive foil with heat−shrinkable tube 3 on the
cable sheath.
5. Fasten cable lugs or wire end ferrules.
6. Connect the shields separately to the shield sheet using shield clamps (no
strain relief).
