OPERATION AND MAINTENANCE

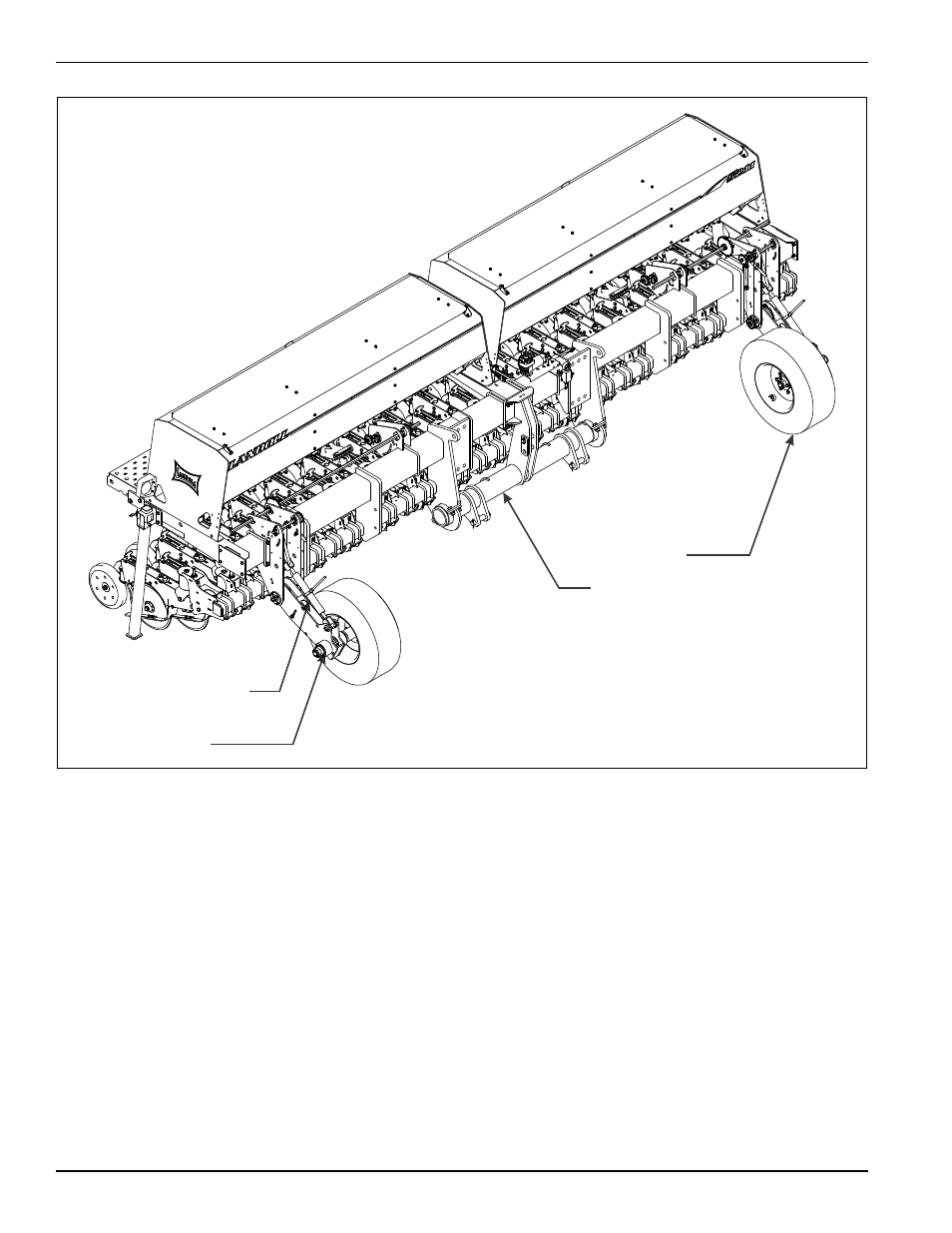

Figure 4-31: 3 Point Hitch
3 Point Hitch (Option)
The 5211 may be equipped with a 3 point hitch versus a
pull hitch. The 3 point hitch is a standard width CAT III
hitch and will attach to any tractor with a CAT III hitch or
quick hitch.
Drills equipped with the 3 point hitch will be equipped
with drive wheels at each end of the main frame. The
drive wheels will be used to gauge the depth of the grain
drill openers when in the field. For initial adjustment, the
bottom of the 4x 4 toolbar should be approximately 19"
above the ground. Seeding depth and ground conditions
can vary this measurement. Raise or lower the seeding
depth by extending/retracting the ratchet jack assembly
on each drive wheel (See Figure 4-31.) Measure the
pin-to-pin length of both ratchet jacks and set them the
same so the unit depth will be even.
Some drills will drive the seed boxes from both drive
wheels, other drills will only drive from one end. It is
important to keep the drive wheels in contact with the
ground while seeding. Failure to maintain ground contact
will result in seeding skips. Raise the drill when turning to
prevent side loading and damage to the openers and
drive wheels.
LEFT DRIVE WHEEL
ASSEMBLY
3 POINT HITCH
RATCHET JACK
RIGHT DRIVE WHEEL
ASSEMBLY
5211-3pt
