Page 35
OPERATION AND MAINTENANCE
4-5

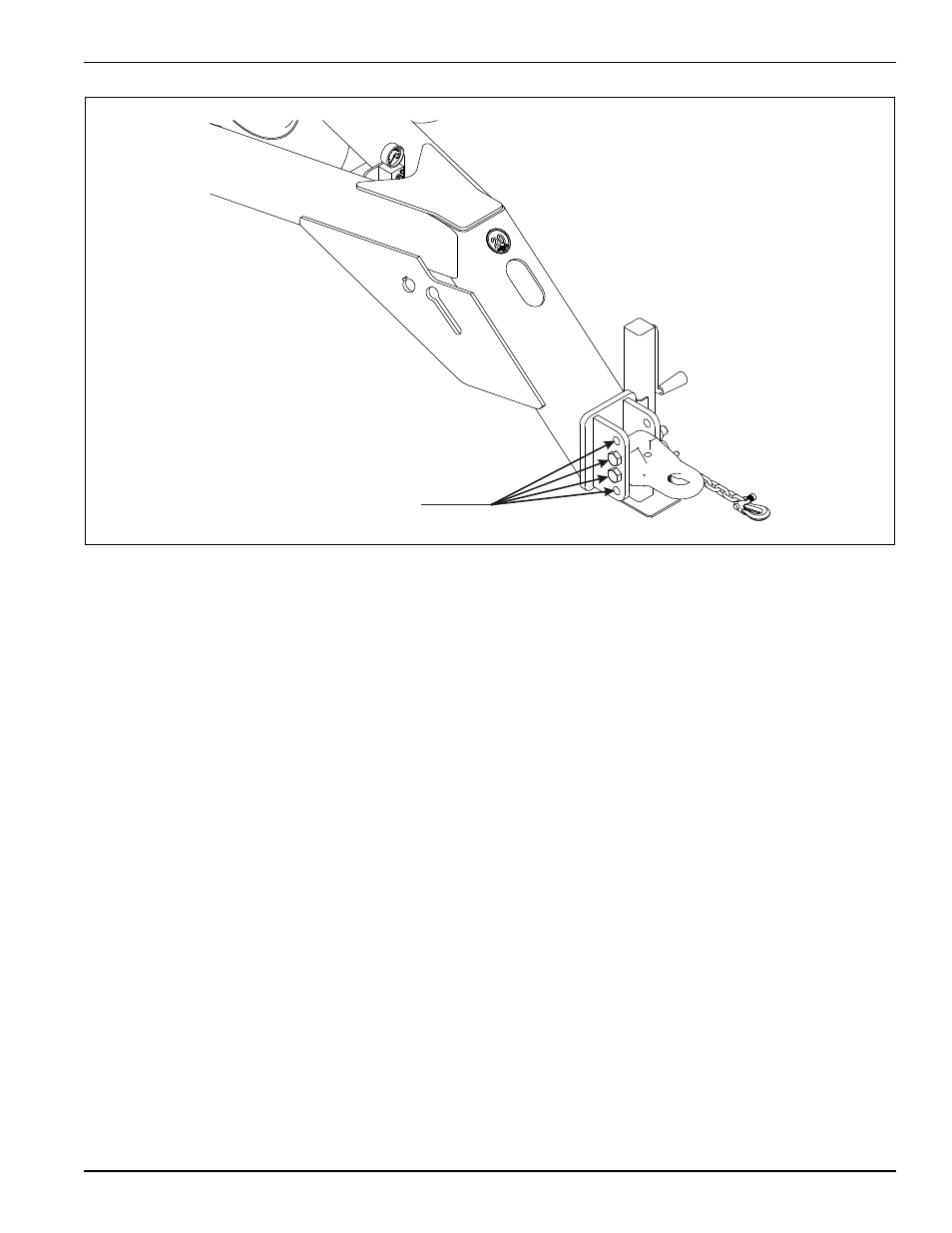

Figure 4-3: Hitch Clevis Height
Leveling the Hitch Clevis
1.
The hitch clevis height should be adjusted to match
the drawbar height of the tractor. This will allow the
hitch to operate through its most efficient range and
level throughout the field (See Figure 4-3.)
2.
On a level surface, measure from the ground to the
top side of the tractor drawbar. For drawbar heights
18” or lower use the lower hitch clevis holes. For
drawbars 20” tall use the middle hitch clevis holes,
and for 22” or greater use the top mounting holes.
HITCH CLEVIS HEIGHT
ADJUSTMENT
5210-hitch clevis
