2-20 1K965
ASSEMBLY
Light Installation
1. Attach the Brackets to the Rear Frame using U-bolts
1/2” X 7 1/2” X 4 1/2”, Lock Washers and Hex Nuts.
2. Assemble the Dual Lamps to the Brackets using four
1/4” X 1 1/4” Screws and Lock Nuts. Make sure the
Amber light is on top.
3. Assemble the wires and attach the Harness to the
Frame using Cable and Hose Ties. See Figure 2-25.

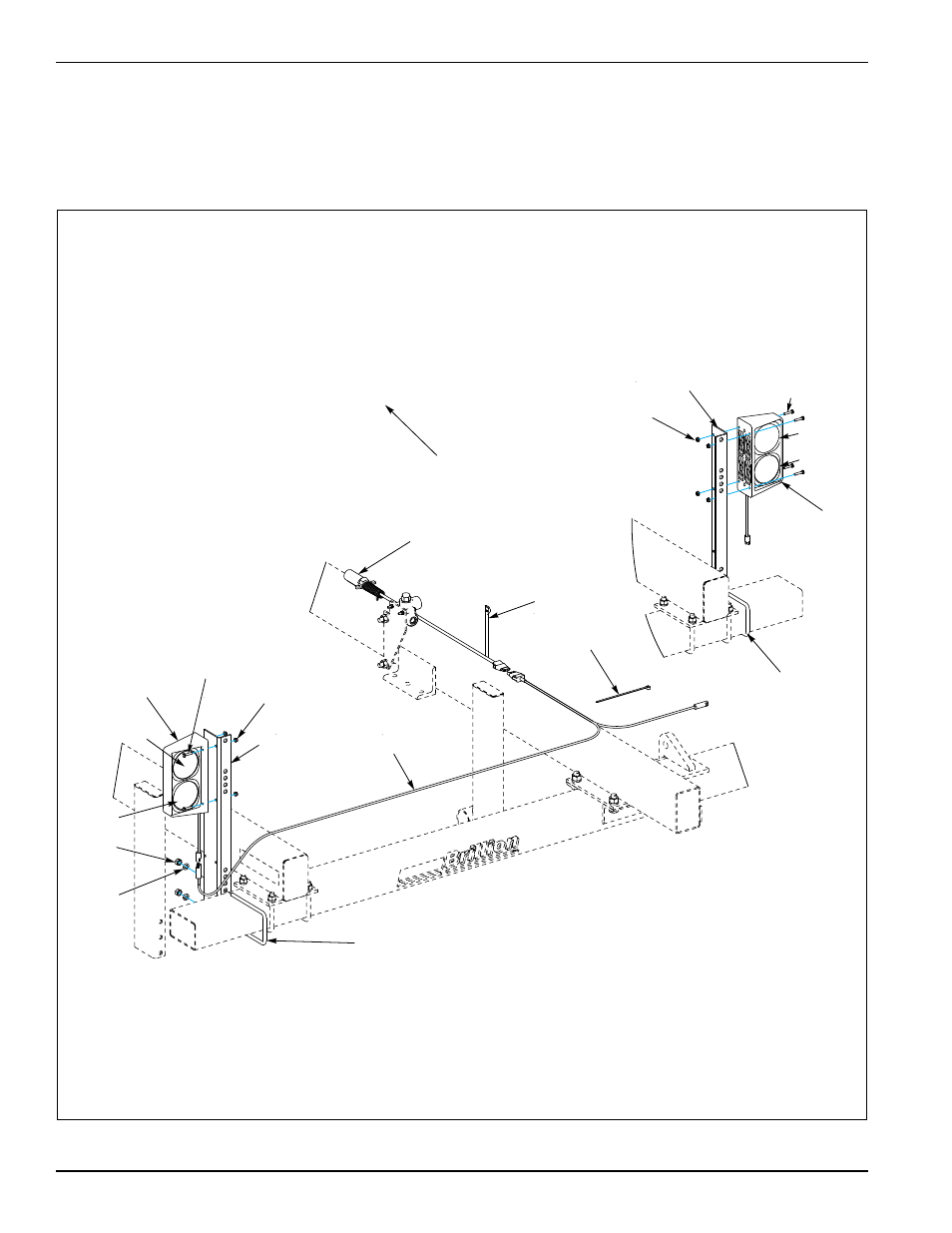

Figure 2-25: Light Installation
AMBER
RED
AMBER
RED
FRONT
30’ AG Harness
10’ Wishbone
AG Harness
Hose Tie
Cable Tie
U-bolt,
Lock Washer,
Hex Nut
U-bolt
Lock
Washer
Hex
Nut
Bracket
Screw,
1/4 X 1 1/4”
Lock Nut
Dual Lamp
Dual
Lamp
Screw,
1/4 X 1 1/4”
Bracket
Lock Nut
