ASSEMBLY
Rockshaft Installation
Install Rockshaft using parts from the 8J676 Rockshaft
Box Assembly.
1.
Coat the bearing surface of the Bearing Assemblies
with grease before fastening Rockshaft to Frame with
5/8-11 x 7" Capscrews, Washers and Hex Nuts.
2.
Install the base end of the 3 1/2 X 16 Hydraulic
Cylinder using one of the pins provided with the
Cylinder. The rod end of the Cylinder will be attached
to the Rockshaft lug at the same time as the linkage.
See Figure 2-7.
3.
Tighten all hardware to the recommended torques.
See Page 4-1.

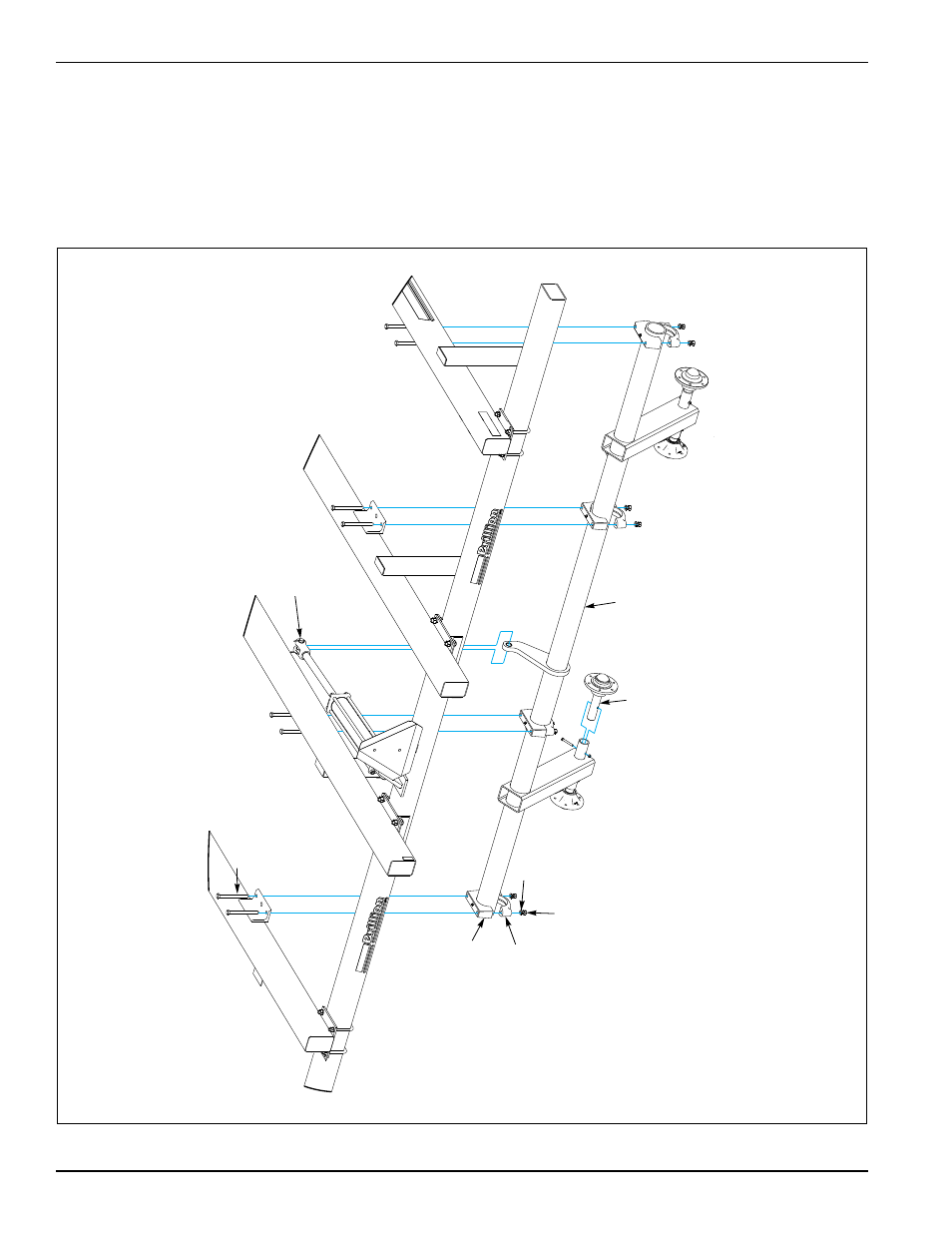

Figure 2-2: Rockshaft
Bolt, 5/8-1
1 X 7
9D653
Axle
Bearing
Assy
.
6D309
Axle
Bearing
Assy
.
W
asher
, 5/8
Hex Nut,
5/8-1
1
Hub & Spindle
Assy
.
Rockshaft
3 ½ X16
Hyd. Cyl.
