Kinze 3600 Lift and Rotate Planter Rev. 6/14 - Manual (Page 4)

(PLTR176)
See “PTO Pump Drive And
Oil Cooler Option” (located in
M0236-02) if equipped with that
option.
ITEM PART NO. QTY. DESCRIPTION
1 --- - See “Vacuum Fan Hydraulic Motor Assembly” (Located in M0236-02)
2 *A12015 1 Hose Assembly, ⅜" x 17"
3 *A8261 1 Hose Assembly, ½" x 13½"
4 *A12019 - Hose Assembly, ⅜" x 322", 12 Row 30" “T” Hitch
5 *A3361 - Hose Assembly, ¾" x 322", 12 Row 30" “T” Hitch
6 *A8269 - Hose Assembly, ½" x 322", 12 Row 30" “T” Hitch
7 GD4086 3 ISO Coupler
8 *A3352 1 Hose Assembly, ¾" x 13½"
9 --- - See “Vacuum Fan Motor Valve Block Assembly (Located Below Vacuum Fan Motor
Assembly)”
(Located in M0236-02)
10 *A12017 1 Hose Assembly, ⅜" x 120"
11 *A3354 1 Hose Assembly, ¾" x 120"
12 *A1467 1 Hose Assembly, ½" x 120"
13 *A12036 - Hose Assembly, ⅜" x 104", 12 Row 30"
14 *A3377 - Hose Assembly, ¾" x 104", 12 Row 30"
15 *A8284 - Hose Assembly, ½" x 104", 12 Row 30"
16 G306-06 1 Lock Nut, 9∕16"-18
17 G2700-06-06 1 Bulkhead Tube Union, 9∕16"-18 Male JIC
18 G306-12 1 Lock Nut, 11∕16"-12
19 G2700-12 1 Bulkhead Tube Union, 11∕16"-12 Male JIC
20 G306-10 1 Lock Nut, ⅞"-14
21 G2700-10 1 Bulkhead Tube Union, ⅞"-14 Male JIC
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis. Call for quote.
TM
M0242 Model 3600
P1 7/11

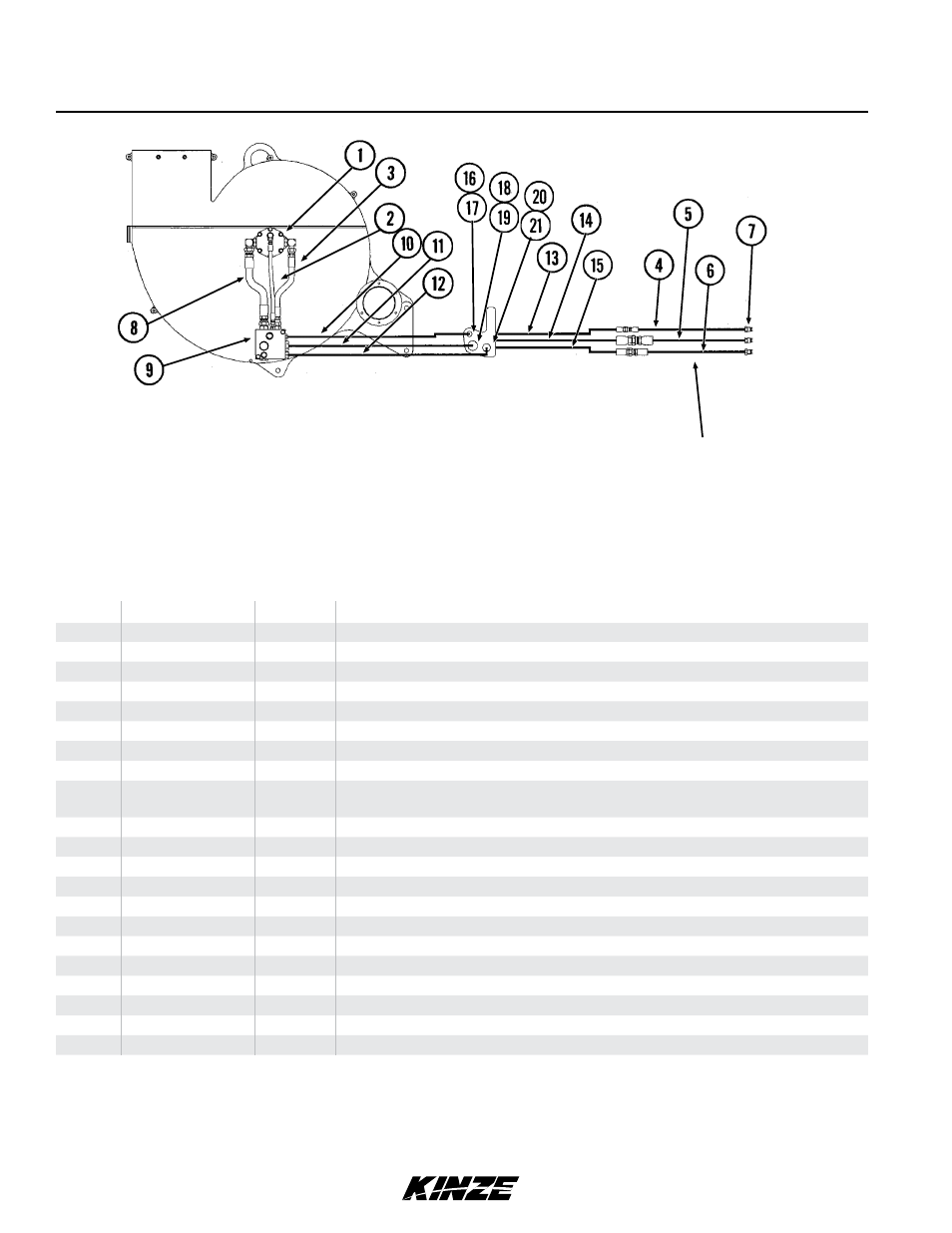

Vacuum Fan Hydraulic Components
