Kinze 3600 Lift and Rotate Planter Rev. 6/14 - Manual (Page 29)

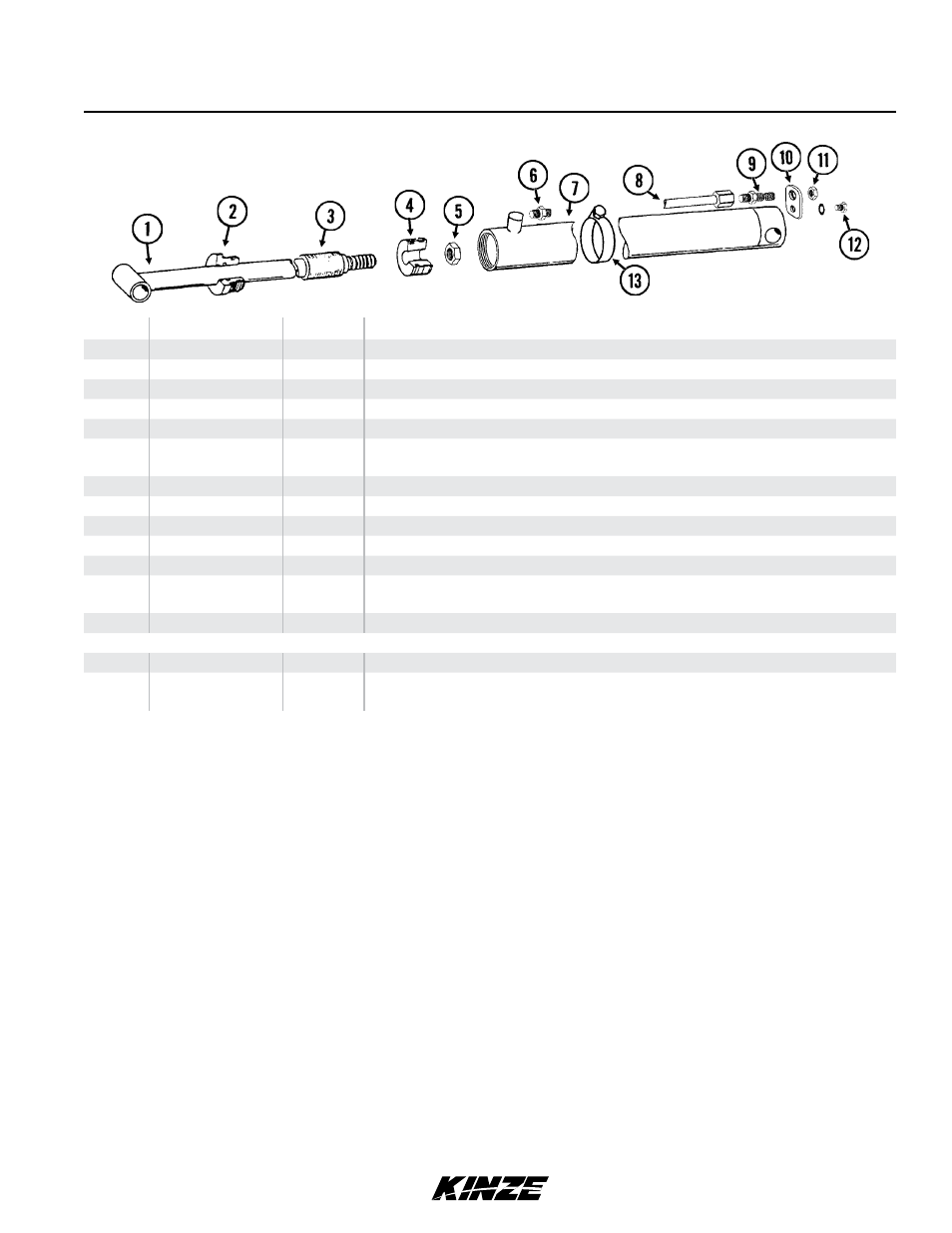

CYL036(CYL12f)
ITEM PART NO. QTY. DESCRIPTION
1 GA8859 1 Rod Assembly
2 GD11984 1 Gland
3 GD7147 1 Spacer
4 GD11970 1 Piston
5 GD27237 1 Nylon Lock Nut, 1¼"-12, Grade 8
6 G6400-08-04
GR1465 1
-
Connector W/O-Ring, ¾"-16 Male JIC To 7∕16"-20 O-Ring
O-Ring
7 GA8861 1 Barrel
8 GA8979 1 Steel Hydraulic Line, 9211∕16"
9 G2700-08 1 Bulkhead Tube Union, ¾"-16 Male JIC
10 GD12597 1 Bracket
11 G306-08 1 Lock Nut, ¾"-16
12 G10328
G10229 1
1 Hex Head Cap Screw, ⅜"-16 x ⅝"
Lock Washer, ⅜"
13 G10990 1 Hose Clamp, No. 52
A GA8862 - Cylinder Complete, 3" x 84" (Part Number Stamped On Barrel)
B GR1519 - Seal Kit, Includes: (2) O-Rings, (1) BU Ring, (1) Wear Ring, (1) Wiper, (1) U-Cup,
(1) T-Seal
¾ "-16 O-Ring Port
7∕16 "-20 O-Ring Port
Tongue Cylinder, 12 Row 30" with “T” Hitch
and 12 Row 36"/38" with “Y” Hitch
Model 3600 M0242
Rev. 6/14 P26
