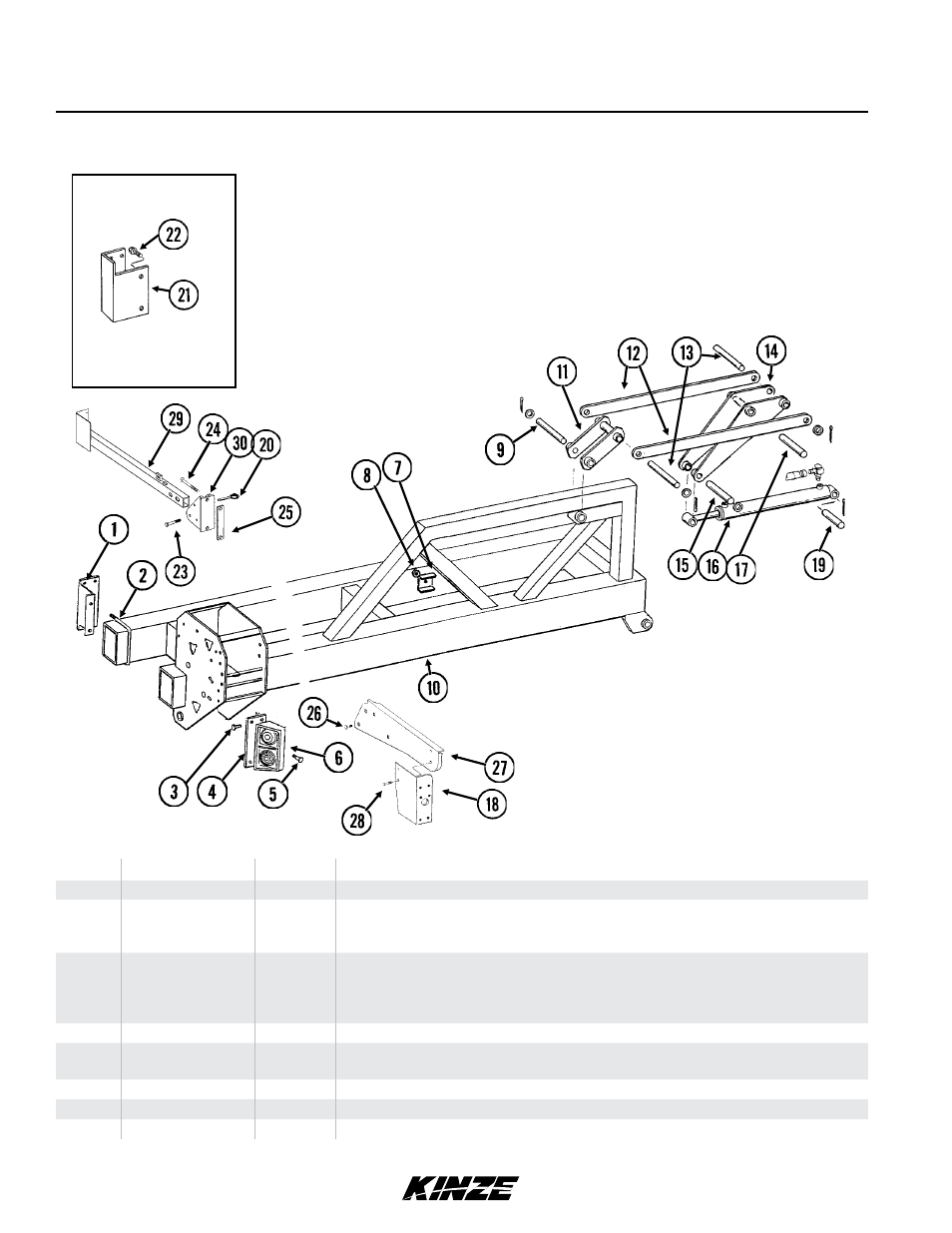

Kinze 3600 Lift and Rotate Planter Rev. 6/14 - Manual (Page 16)

(TWL180a/TWL139g)
NOTE: Installed On
Even-Row Push
Row Unit
WITH INTERPLANT ®
PACKAGE OPTIONS
ITEM PART NO. QTY. DESCRIPTION
1 GA6792 1 Light Bracket (Wide Row Sizes Only)
2 GD1113
G10230
G10104 1
2
2 U-Bolt, 5" x 7" x ⅝"-11
Lock Washer, ⅝"
Hex Nut, ⅝"-11
3 G10001
G11387
G10229
G10101 2
1
2
2 Hex Head Cap Screw, ⅜"-16 x 1"
Flat Washer, ⅜" SAE
Lock Washer, ⅜"
Hex Nut, ⅜"-16
4 GD9681 1 Light Bracket (Wide Row Sizes Only)
5 G10064
G10110 8
8 Hex Head Cap Screw, ¼"-20 x 1"
Lock Nut, ¼"-20, Grade B
6 --- - See “Electrical Components” (Located in M0236-02)
7 GD5875 - Hose Clamp, 9/16" x 2½" x 2"
8 G10108 - Lock Nut, ⅜"-16
Wing Frame
TM
M0242 Model 3600
P13 7/11
