Kinze 3600 Lift and Rotate Planter Rev. 6/14 - Manual (Page 27)

Port Type
Rephasing

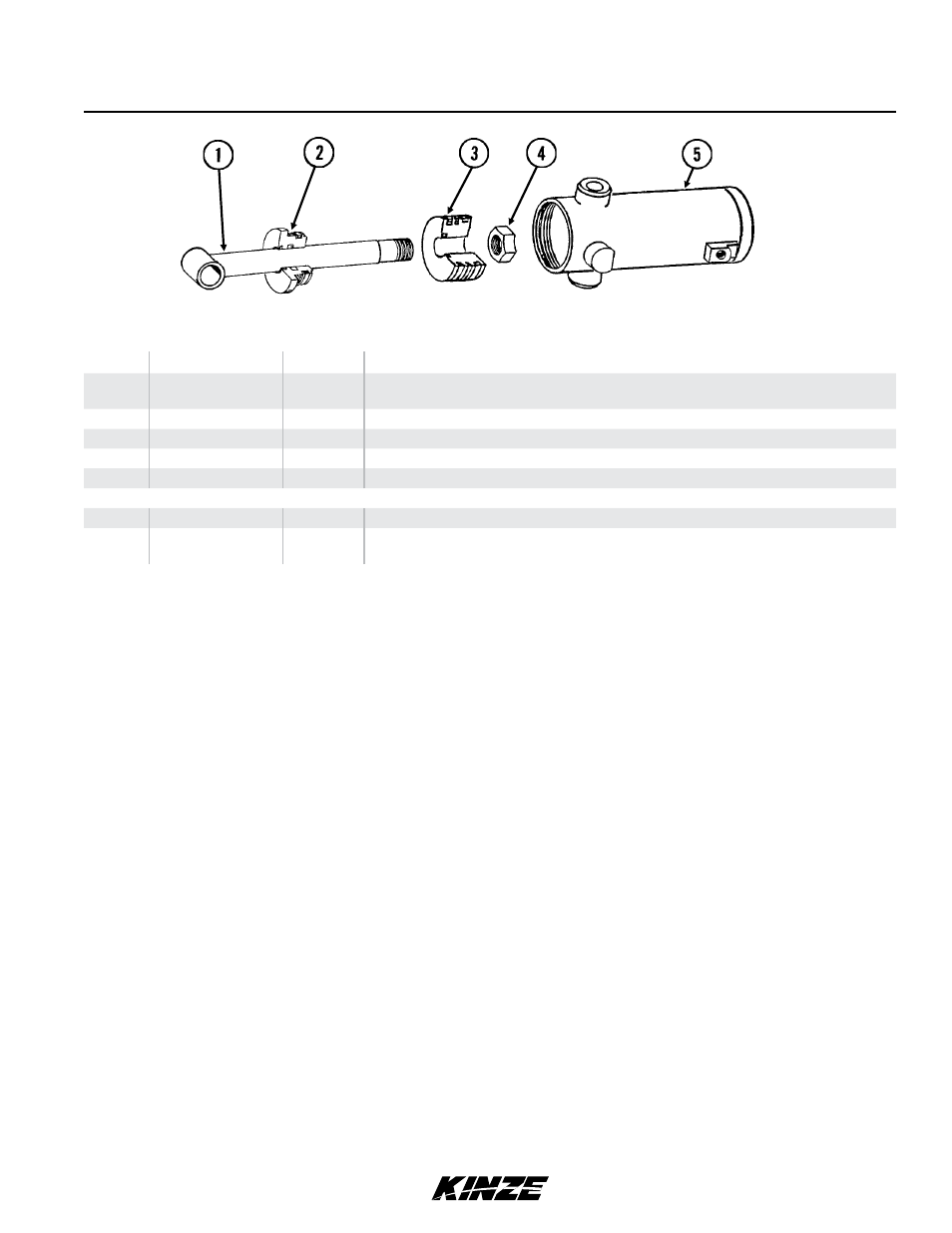

ITEM PART NO. QTY DESCRIPTION
1 GA8320
G10640 1
-
Rod Assembly W/Grease Fitting
Grease Fitting, ¼"-28
2 GD11995 1 Gland
3 GD11994 1 Piston
4 GD27235 1 Nylon Lock Nut, 1"-14, Grade 8
5 A8797 1 Barrel (Non-Stock Item)
A GA8909 - Cylinder Complete, 4¼" x 6" (Part Number Stamped On Barrel)
B GR1523 - Seal Kit, Includes: (1) Wiper, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Seal, (2) Cast
Iron Rings, (1) Expander
CYL031/CYL011(CYL45d)
Wing Lift Cylinder, 12 Row
Model 3600 M0242
Rev. 6/14 P24
