MA

35

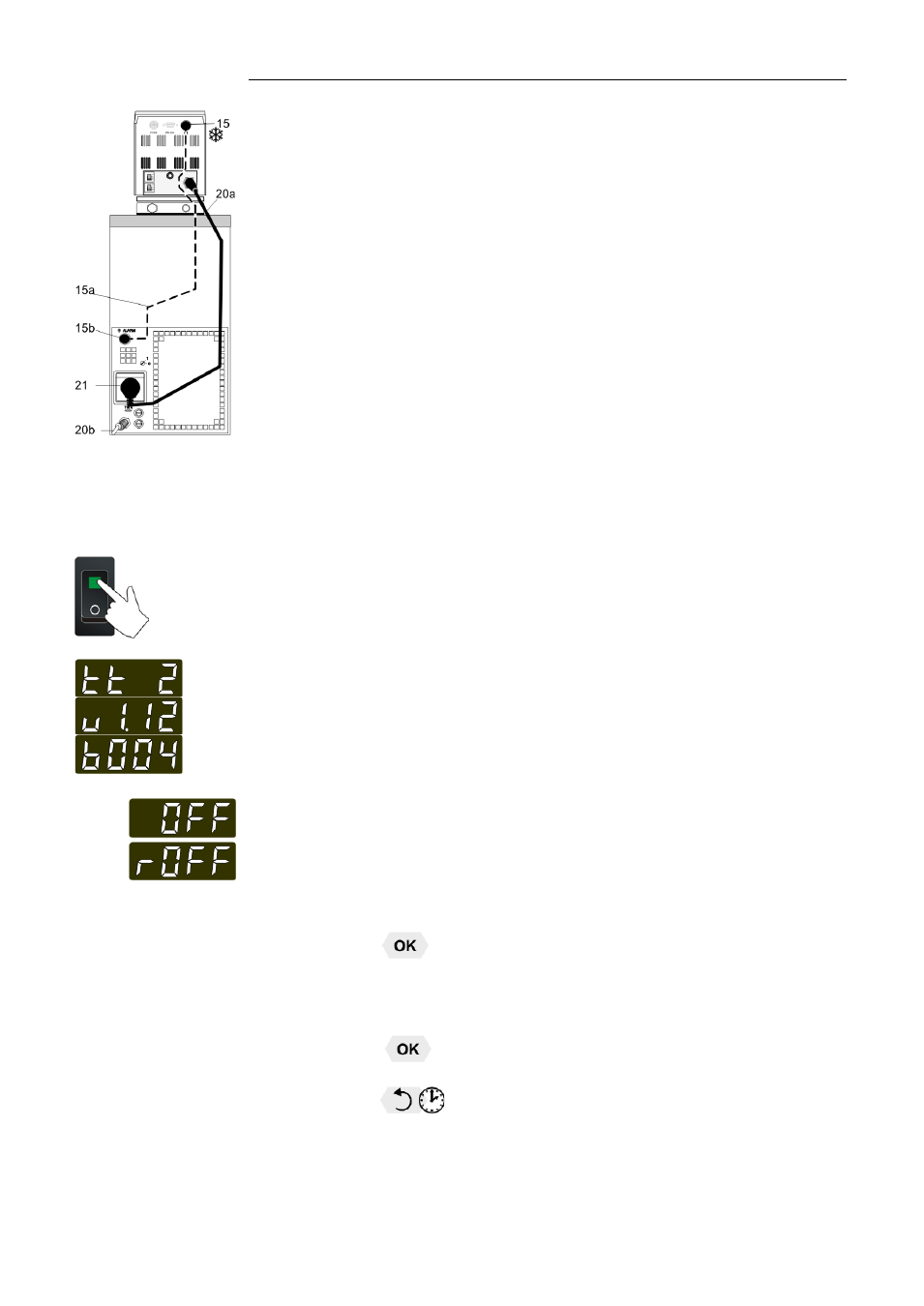

• Connect the circulator with mains power cable (20a) to the

mains outlet (21).

• Connect the control cable (15a) between the connectors  (15,

15b).

• Connect the refrigerated circulator with mains power cable

(20b) to the mains socket.

6.2.

Switching on / Start – Stop

6.2.1. Switching on the circulator

Switching on:
• Turn on the mains power switch (1).

The unit performs a self-test. All segments of the 4-digit MULTI-
DISPLAY (LED) and all indicator lights will illuminate.
Then the software version (example: tt 2, V1.12, b004))
appears. The display „OFF“ or „R OFF“ indicates the unit is
ready to operate.

The circulator enters the operating mode activated before
switching the circulator off:
keypad control mode (manual operation)
or
remote control mode (operation via personal computer).



Start:

• Press

key.

The actual bath temperature is displayed on the LED-
DISPLAY. The circulating pump starts with a slight delay.

Stop:

 Press

key.

or
Keep

key pressed.

The LED -DISPLAY indicates the message "OFF".
