1.2 Configurations
The RSH-600 can be configured with a flat head or a 45º angled head. This allows
for mounting in various locations within your vacuum chamber. Standard head
covers are made of stainless steel. Copper head covers are available for
applications where temperature is a concern (see
Figure 1-2 ). All versions of the
RSH-600 are fixed to their specified lengths, but may be adapted to be adjustable
in length using the optional adjustable mounting flange (see
Chapter 4 ).

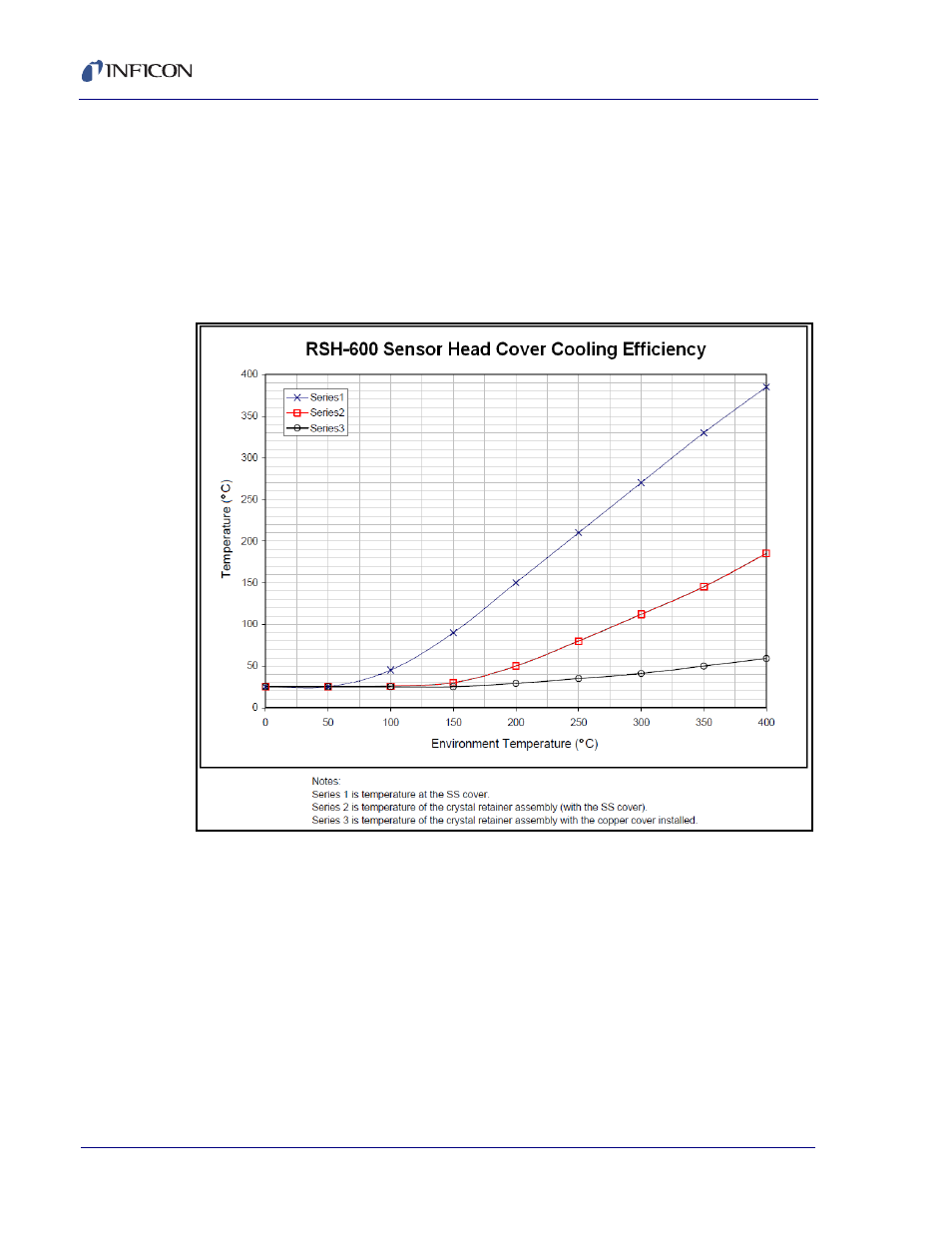

Figure 1-2 RSH-600 Sensor Head Cooling Efficiency.
1.3 Mounting
The RSH-600's smooth sealing surface mounts to an O-ring sealed nipple (not
included). The optional adjustable flange allows for the in-vacuum length to be
adjustable up to the RSH-600's original length. A flat head cover is typically used
for centered top mount applications while the angled heads may be used for either
off-center top mount or side mount applications. The customer must supply
specifications regarding mounting holes, exterior diameter of flange and the
system mating flange.
