Calibrating the 2020ppbpro with a gas bag – INFICON 2020ppbPRO Portable Photoionization Detector User Manual
Page 70

64
ISP-074-576-P1D
64

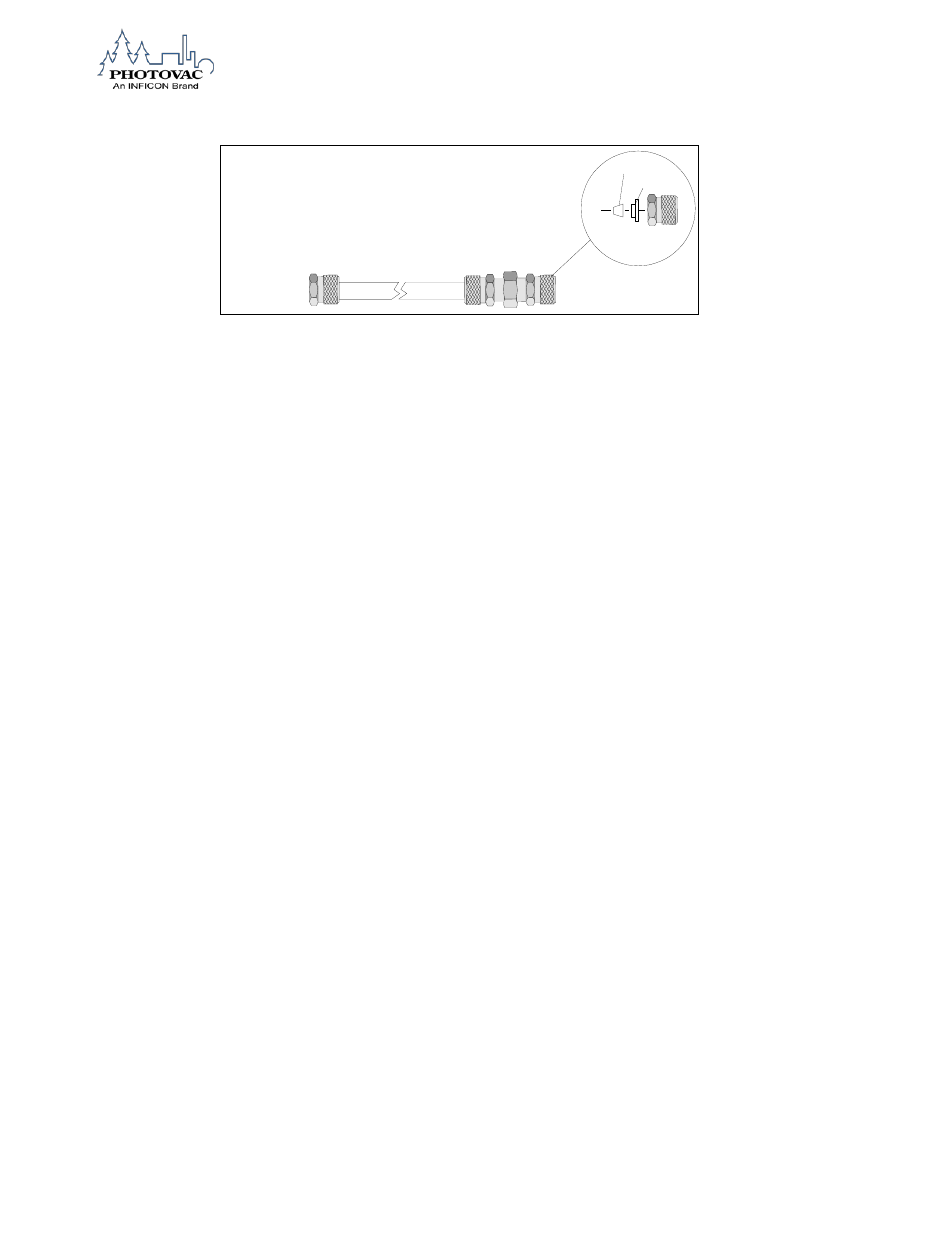

Figure 18.
Gas Bag
Adapter
3.
Loosen the
knurled nut
on the
reducing union of the gas bag adapter.
NOTE: Do not remove the nut from the union, as the Teflon ferrules contained inside the nut
may be lost.
4. Insert the tube stub from the gas bag into the knurled nut. Tighten the
knurled nut and ensure the tube stub is secure. If the gas bag is not
secure, ensure you have inserted the tube stub far enough into the
knurled nut. Do not over-tighten the fitting.
NOTE: Over-tightening the Teflon ferrules will result in damage to the ferrules!
5. The union should be connected to the gas bag adapter. If it is not, then
tighten the nut on the adapter tube to the union.
6. Flush and fill the gas bag. Remove the knurled nut on the adapter tube
from the regulator.
8. Repeat this procedure, if necessary, to prepare a bag of zero air.
NOTE: Do not use the same gas bag or for the bag of zero air. You will contaminate the bag
of zero air.
Calibrating the 2020ppbPRO with a Gas Bag
1. Ensure the short sample probe is connected to the 2020ppbPRO tube
holder inlet. If you are using the long probe for sampling, then ensure the
long probe is connected to the 2020ppbPRO tube holder inlet.
NOTE: Ensure the sample probe is free of any contamination as this will affect the
calibration
2. Press the CAL key.
3. Follow the instructions on the display connect the intake sample conditioner
tube (F1760162) and filter tube holder (A1790500).
NOTE: If using Ultra Zero air, connect the bag of UZ air to the tube.
4.
Then press the “Next” key. The 2020ppbPRO will take 60-90 seconds to set
the zero point for calibration.
5. The 2020ppbPRO
display will show “Zero air calibrated. Continue
calibration?” Press the “Next” key.
1/8" to 3/16"
Union
1/8" Nut
Insert Gas
Bag Tube Stub
1/8" Adapter
Tubing
To Regulator
or 2020
Teflon
Ferrules
Front
Back
To Regulator
or the
2020PRO
