2 I/O Port

7

In

te

rface D

e

scr

ipti

o

n

Ecotec E300

0,

k

ins

22e1

-j

, 1401

2

I/O Port

The I/O part allows communication with external equipment via analog data
(programmable logic control - PLC). Through this connection some functions of the
Ecotec E3000 can be controlled externally or measurement data or the Ecotec E3000
status may be communicated to external equipment. Through relay changeover contacts
the trigger levels as well as the operating mode (Ready) of the Ecotec E3000 may be
monitored.

2.1

Connecting the I/O Port

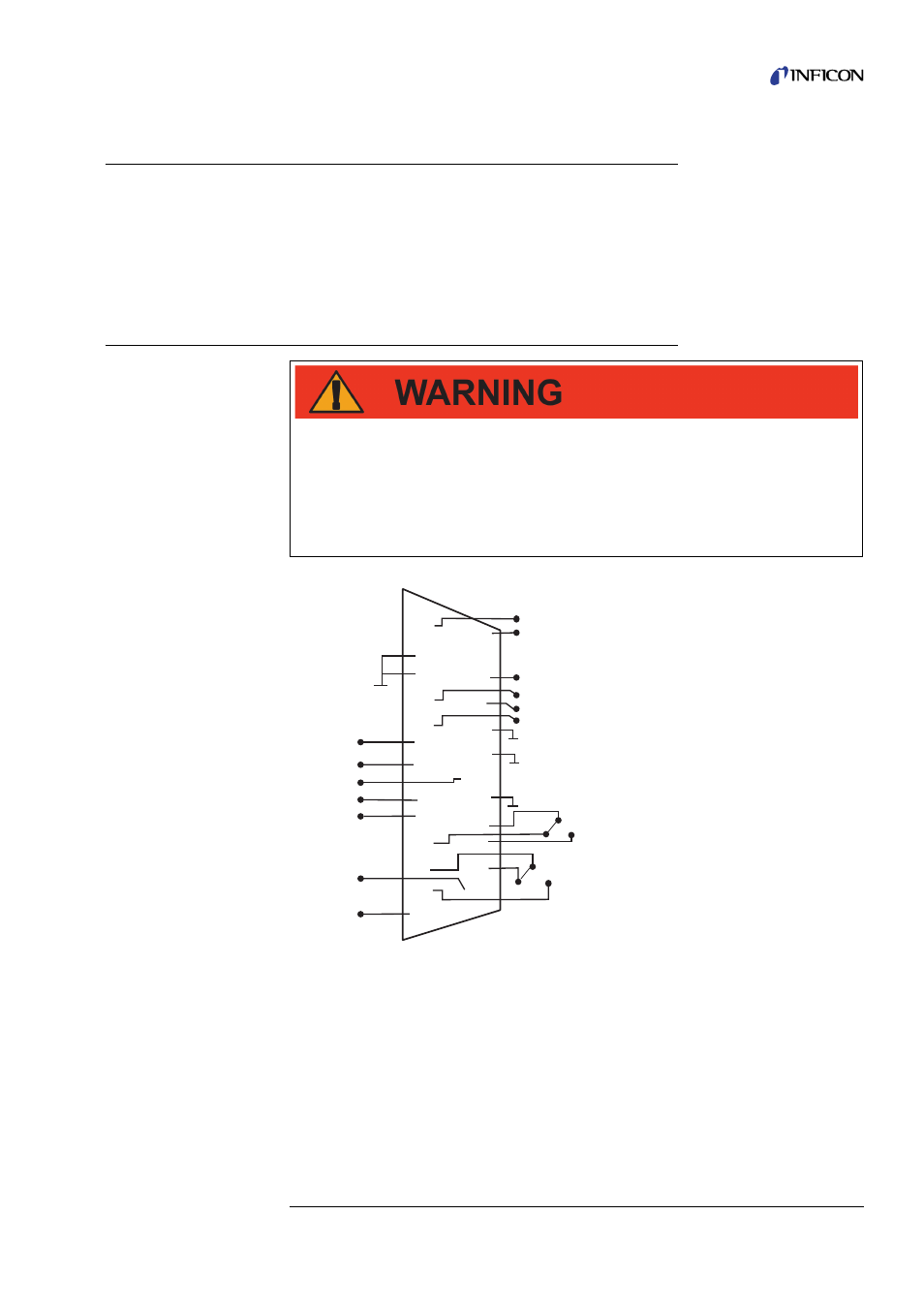

Fig. 1: Default pin assignment

Hazardous voltage.

The wrong voltage may destroy the device and violate people.

For all contacts of the I/O Port a maximum voltage of 60 V DC or 25 V AC must not be
exceeded or reached to ground or ground equipment conductors. According to the
type of in- or outputs lower voltages had to be accepted. For this, please refer to the
information given in the corresponding chapters.

1

2
3
4
5
6
7
8
9
10
11
12
13

14
15
16
17
18
19
20
21
22
23
24
25

Recorder gas no.

Trigger

Error

Trigger

NO

Leak rate

Ready

not used

24V

Sleep

Zero

Gas select

Gas a

Ready

INPUTS

OUTPUTS

not used

NO

Gas b

C

NC

C

NC
