To change these settings select the appropriate pin with the UP and DOWN arrows on the
left side of the display and afterwards select the desired command from the list of
commands with the UP and DOWN buttons on the right side of the display. Press OK to
save your settings. A screen with all selected settings will be displayed for your reference.
Confirm with OK again.

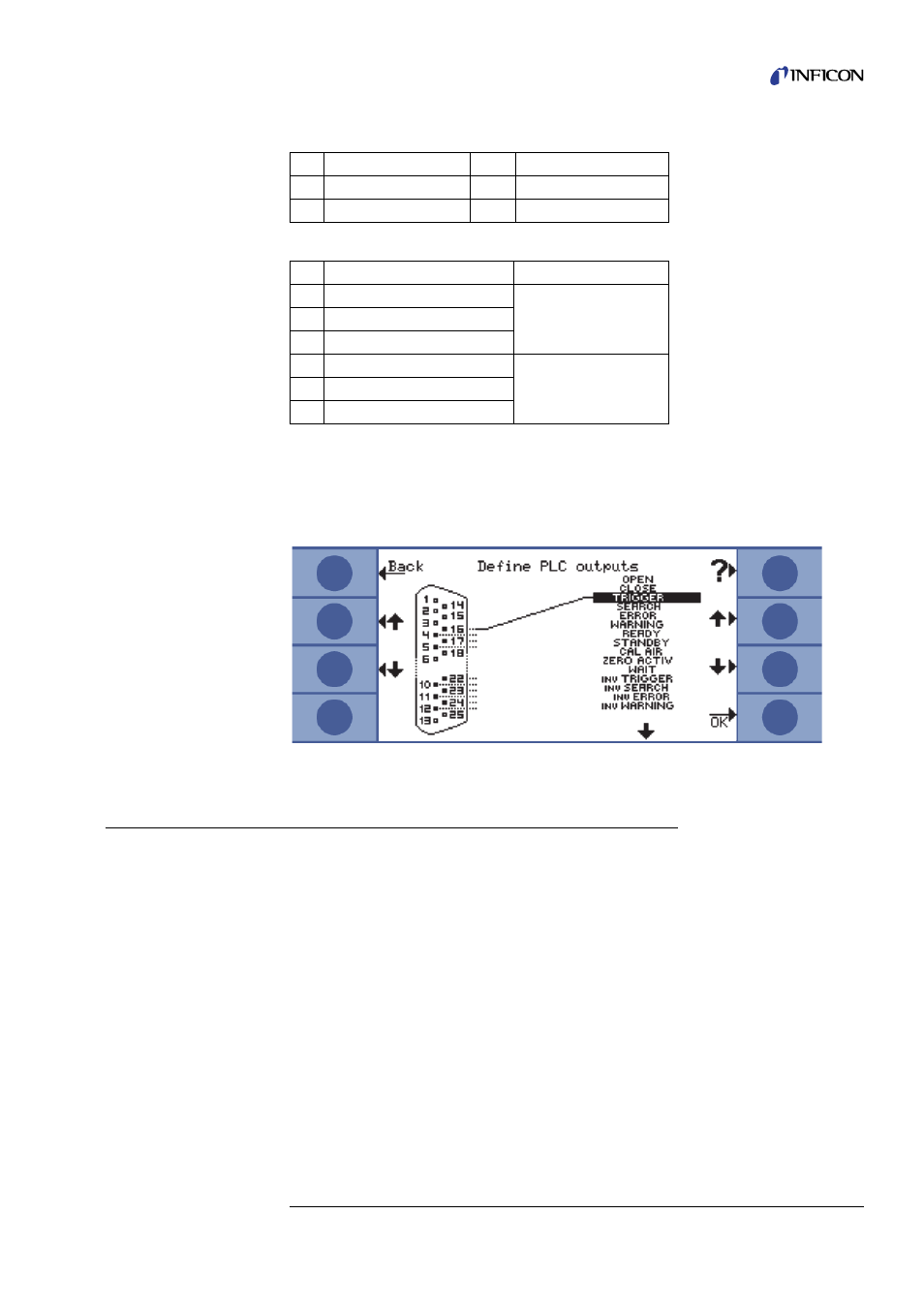

Fig. 4: Defining PLC outputs
2.3 Example: How to perform a calibration
An external calibration may be performed via the PLC inputs and outputs. For this
purpose, one of the inputs needs to be configured to “CAL”, another needs to be set to
“CAL AIR”. The external calibration is always performed for the enabled gas with the
highest gas no. The test leak rate used is the test leak rate which has been used for the last
external calibration performed.
Table 6: PLC Output, pin - command assignment
Pin Command Pin Command
4 READY 16 TRIGGER
5 not used 17 ERROR
Table 7: Relays outputs
Pin Type of contact Relay Output (default)
10 Currentless closed (NC) TRIGGER
22 Common
23 Currentless opend (NO)
24 Currentless closed (NC) READY
11 Common
12 Currentless opend (NO)
