Page 36: Plc in/out
34
Installation
jina
85
e 4
.fm
Tech
ni
ca
l Ha
nd
bo
ok
(1
11
2)
4.6.2
Electrical connection of the PLC inputs
The default setting is as follows:
Signal level:
24 V (low-resistance) means High,
0 V (high-resistance) means Low,
Change from LOW to HIGH:
The programmed command for the input is enabled (edge controlled).
Pin
Command
Explanation
1
Start
2
Stop
3
Cal
4
Proof
5
Clear:
6
Standby
7
Common
Common negative pole for all PLC inputs.
Connect to the negative pole of the power supply.
Caution
Max. permissible input voltage of the digital inputs: 28 V.

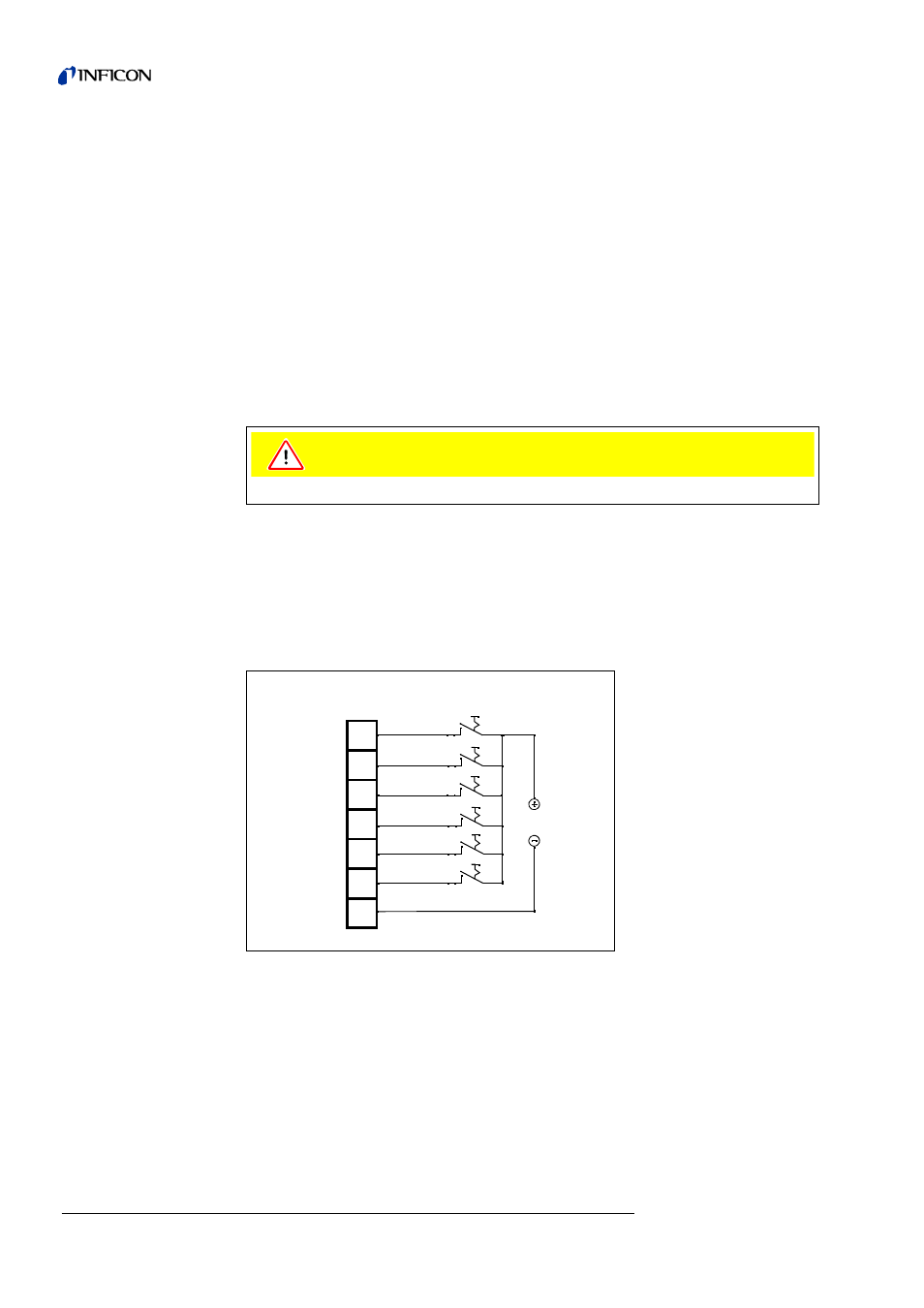

Fig. 5-2 Electrical connection of the PLC inputs
1
2
3
4
5
6
7
PLC IN/OUT
24V
