Page 11: 3description
Description
9
jina
85
e 3
.fm
Tech
ni
ca
l Ha
nd
bo
ok
(1
11
2)
3
Description
This chapter describes the exterior design of the T-Guard™ Leak Detection Sensor,
its accessories and how to use it.
3.1
Housing
The housing of the unit consists of an oval cylinder. On top, there are several
electrical connections and the ventilation opening. On the rear side, there are three
hose connectors.

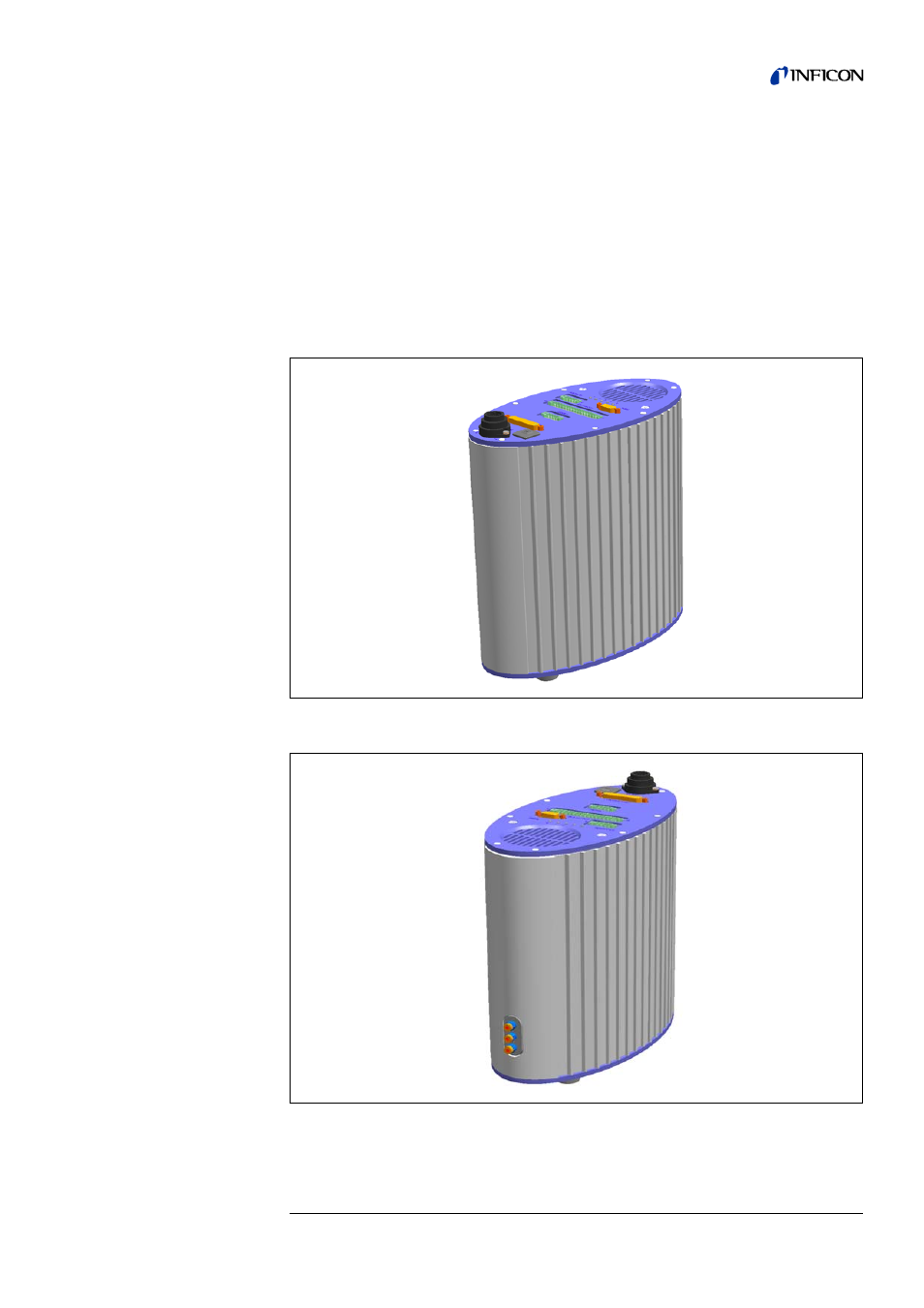

Fig. 4-1 Front view of the T-Guard™ Leak Detection Sensor
Fig. 4-2 Back view of the T-Guard™ Leak Detection Sensor
