DOWN buttons on the right side of the display.
Press OK to save your settings. A screen with all selected settings will be displayed
for your reference.
Confirm with OK again.
Notice
Most PLC functions are activated when the input signal rises. Having a
High-signal when starting the T-Guard™ Leak Detection Sensor is not
enough.

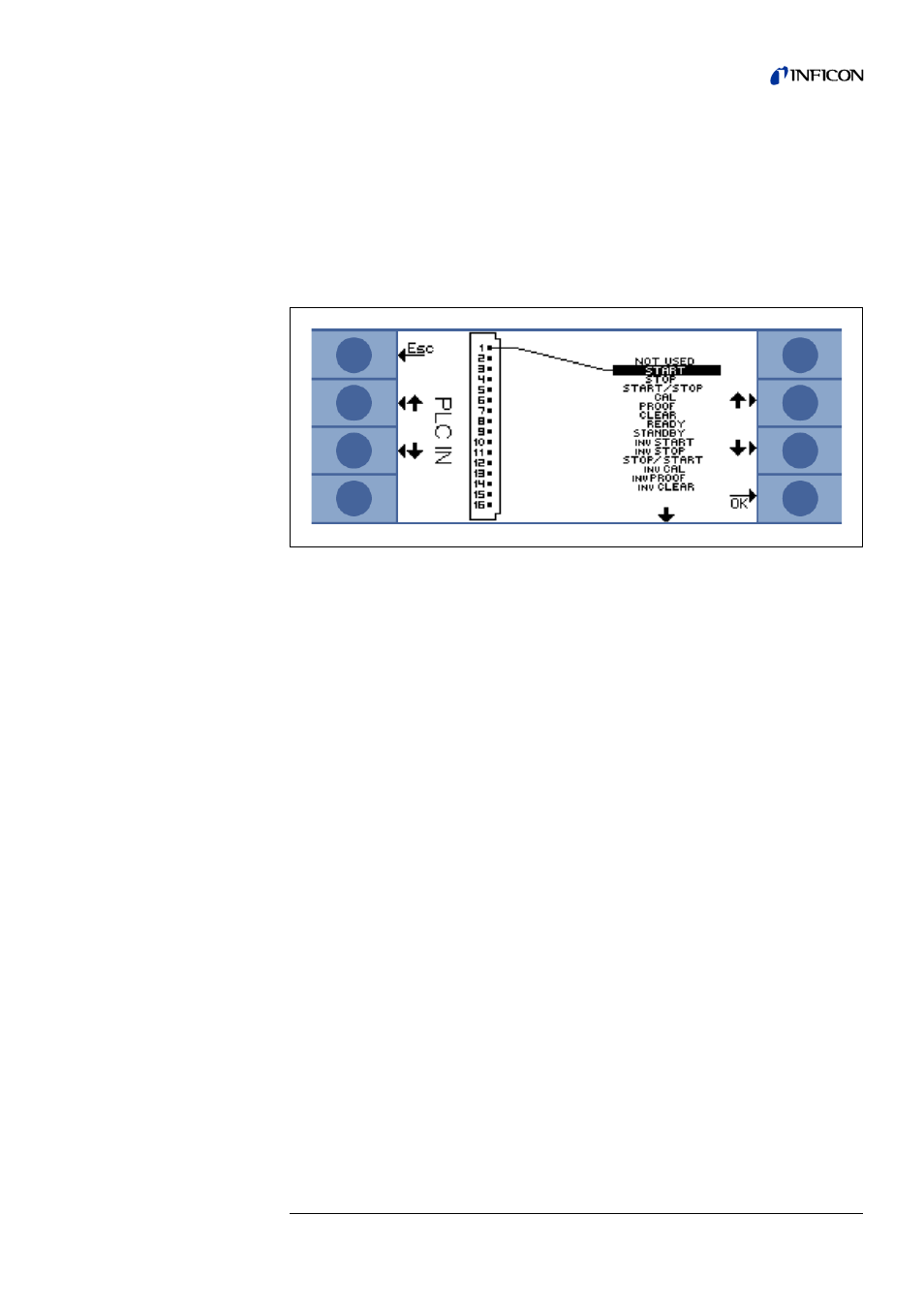

Fig. 5-1 Selecting the PLC Inputs
