Gamber-Johnson 7160-0020 User Manual
Page 9
Installing Lower Tray Assembly - 7160-0020 (cont'd)
Install the tray with the square holes closer to the trunk opening. Tighten the (4)
1/4-20 hex nuts over the external tooth washers & install (4) Black Vinyl Caps
over nuts.
Install 32" Edge Trim over the front edge of the tray.
Slide the tray forward and back verifying it moves freely and that the slides
lock in the closed position (see FIG 23).
The spare tire & jack can be attached to the lower tray using the 7/16" x 8.50"
long Carriage Bolt, 7/16" Washer, & 7/16" Wing Nut.
9 of 9

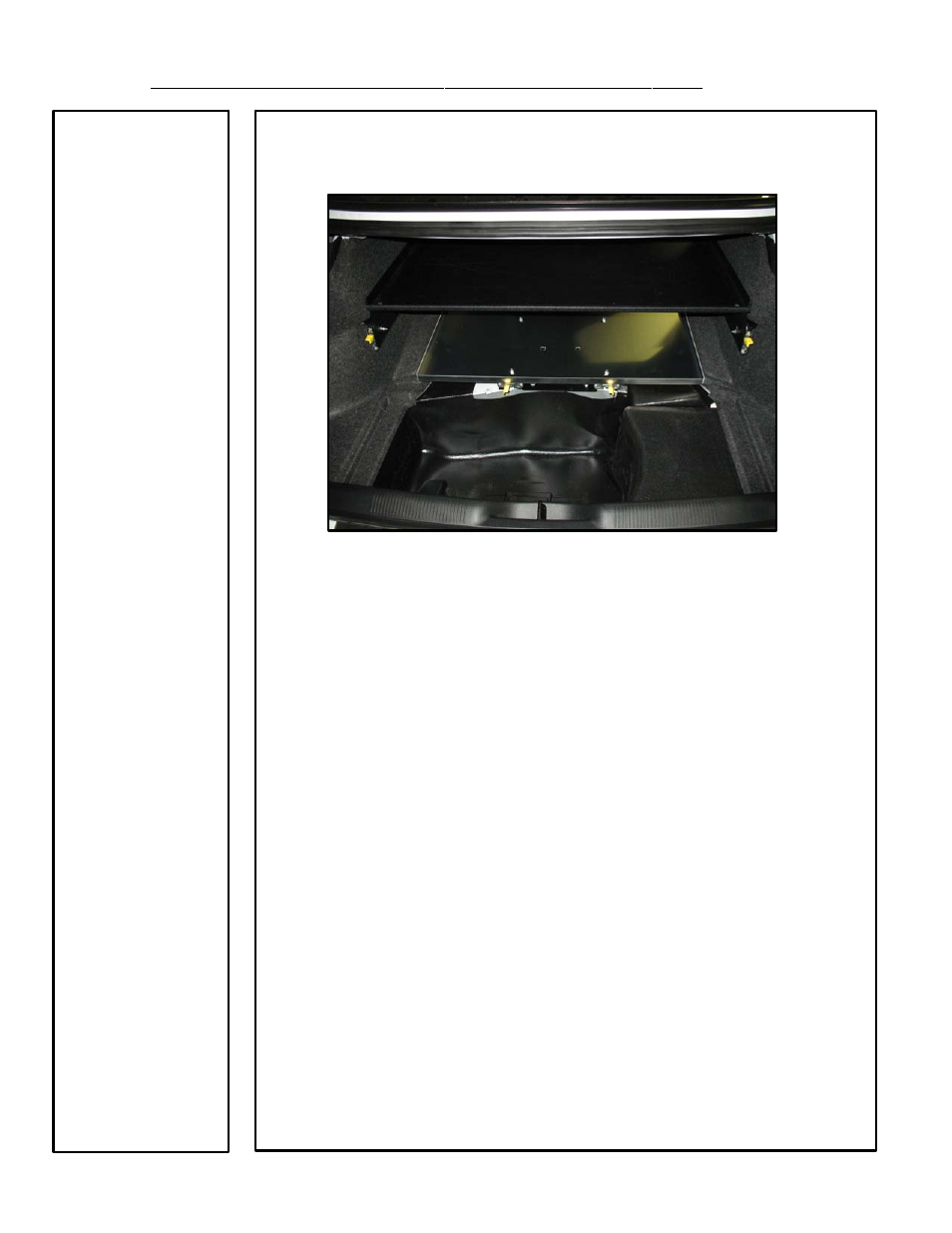

FIG. 23
Ratchet Wrench
7/16" Socket
7/16" Wrench
