Installing Upper Tray Assembly - 7160-0336 (cont'd)
FIG. 16
FIG. 15
Ratchet Wrench
7/16" Socket
7/16" Wrench
Knife
Drill
9/32" Drill Bit
6 of 9
FIG. 14
FIG. 17
FIG. 18

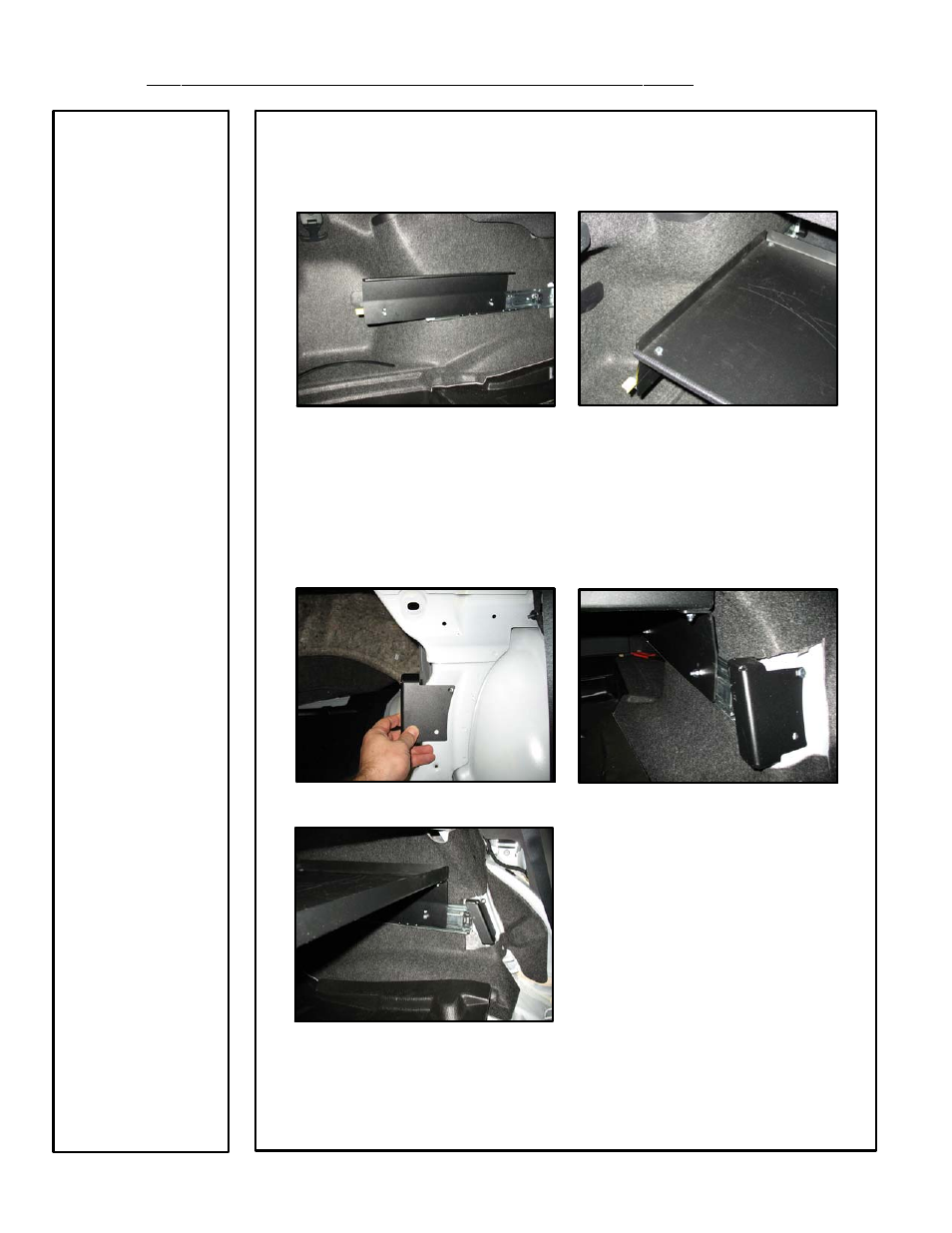

Attach RH & LH Slide Stop Brackets to the metal backseat support framework
with (2) 1/4-20 screws, nuts and (2) .25 self-drilling screws (see FIG 16 & 18).
Trim the carpeting if nescessary to access the area (see FIG 17).
Use the existing hole in the framework to mount the upper hole.
Drive the .25 self-drilling screw thru the lower hole into the framework.
Slide the tray forward and back verifying it moves freely and that the slides
lock in the closed position.
Re-install the vehicles back seat.
The screws must be installed from the slide side, with the screw heads inside the
slide assembly and the nuts must be installed from the bracket side (see FIG 14).
Attach the Upper Tray using (4) 1/4-20 screws & nuts (see FIG 15).
