System Manual Safety System CES-A-W5H-01
8

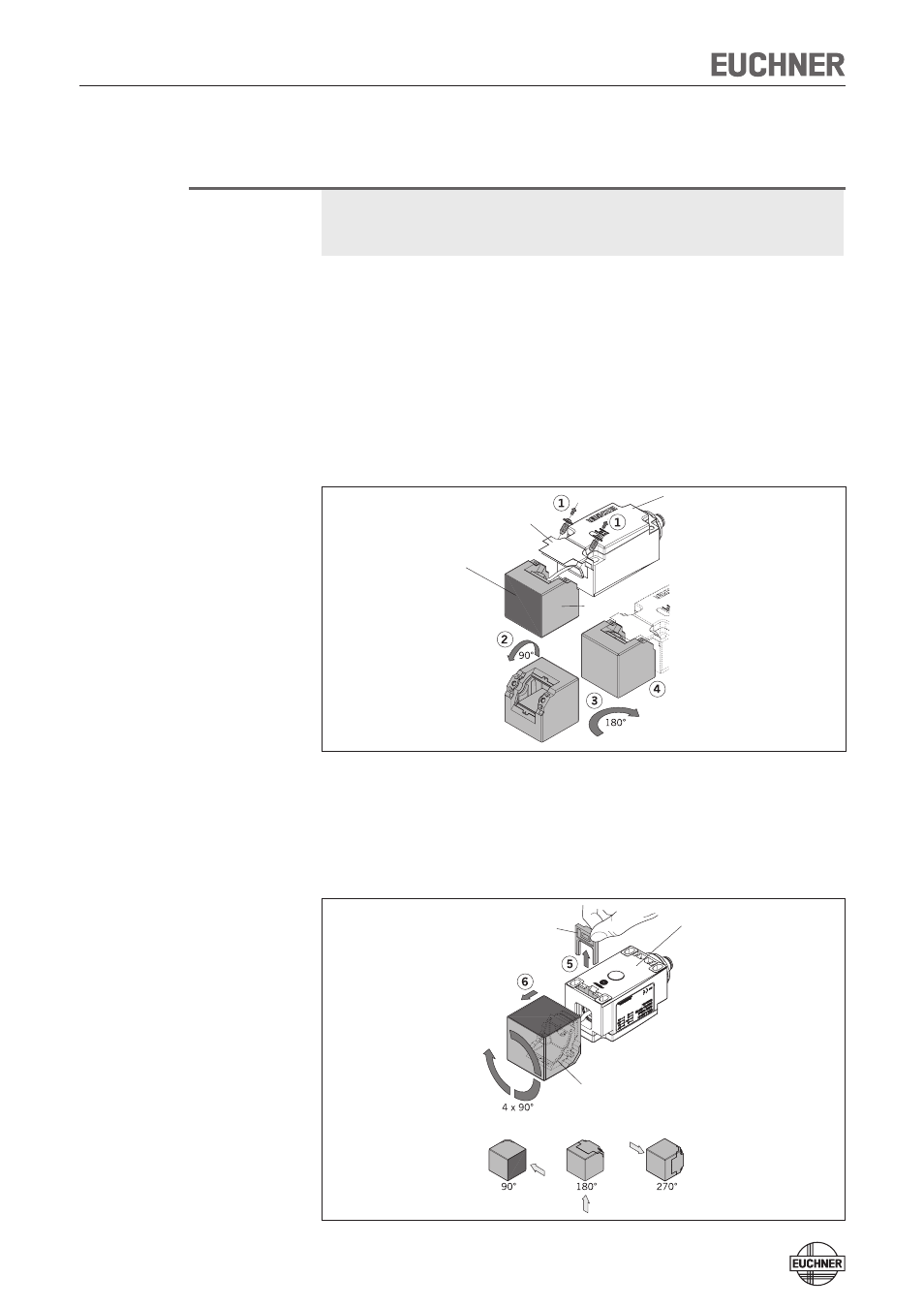

Changing the approach direction
Caution!
Risk of damage to equipment as a result of trapped cables.
Make sure that the cables are not trapped or torn off when the approach
direction is changed. 
The active face of the read head can be adjusted in 5 directions. It is marked by
the red face.
Unscrew the screws on the fastening bracket.
Pull the read head from the fastening bracket and tilt the read head by 90°
(arrow ).
The active face is now pointing downward.
Turn the read head by 180° (arrow 3).
Re-tighten the screws for the read head on the fastening bracket. Tightening
torque 0.6 Nm.
Remove the clip from the underside of the housing to change the lateral ap-
proach direction.
Pull the read head off the housing and turn it in 90°-steps in the desired ap-
proach direction.
Fit the read head to the housing and re-fit the clip.
1.
.

3.
4.
5.
6.
7.
Housing
Fastening bracket
Active face
Read
head
Housing
Read
head
Clip
Other approach directions
