System Manual Safety System CES-A-W5H-01
3
Actuator CES-A-BBA/CES-A-BCA
Cube-shaped design 4 x 5 mm
CES-A-BCA suitable for use in aggressive media (e.g. acids, alkalis)

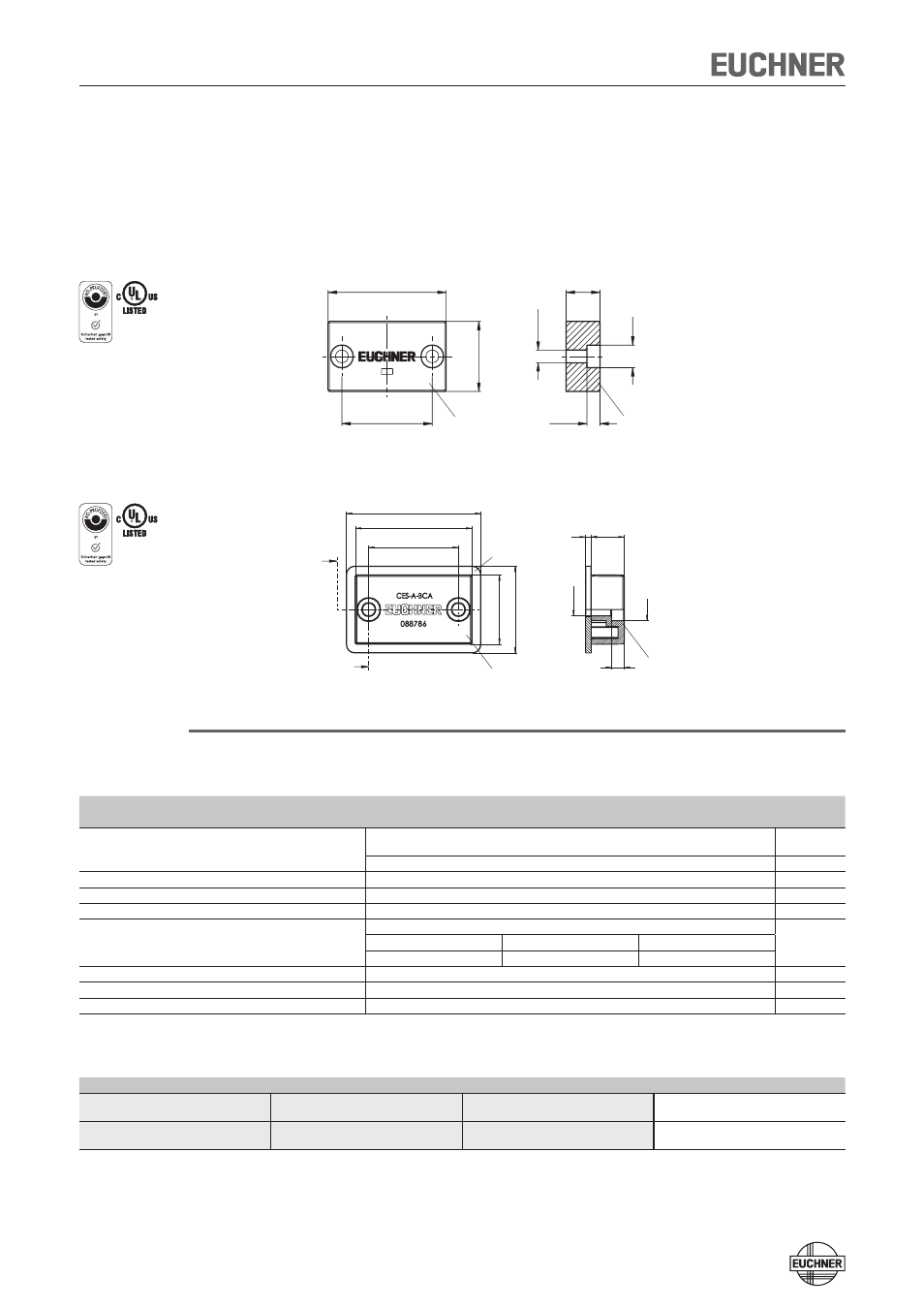

Dimension drawing CES-A-BBA
Dimension drawing CES-A-BCA
Note
CES-A-BCA: The flat seal provided must be used during assembly.
Technical Data
Parameter
Value
Unit
min. typ. max.
Housing material
- CES-A-BBA Fortron, reinforced thermoplastic, fully encapsulated
- CES-A-BCA Plastic PE-HD without reinforcement, fully encapsulated
Flat seal material (CES-A-BCA only) Fluororubber 75 FPM 4100
Dimensions 4 x 5 x 1 mm
Weight 0,0 kg
Ambient temperature
°C - CES-A-BBA -5 - +70
- CES-A-BCA -5 - +50
Degree of protection IP67/IP69K
Installation position Active face opposite read head
Power supply Inductive via read head
Ordering table
Series Comment Version Order no. / item
CES-A-BBA safety screws M4 x 14 are supplied -
071840
CES-A-BBA
CES-A-BCA
safety screws M4 x 14 are supplied
Flat seal included
Housing material PE-HD
088786
CES-A-BCA


Approvals CES-A-BBA only Approvals CES-A-BBA only
Approvals CES-A-BCA only Approvals CES-A-BCA only
CES-A-B 071840
25
ш8 ш4
,5
42
32 ±0,1
12
4,6 Active face Active face
safety screws M4 x 14
are supplied
42
32 ± 0,10
25 31
48
4,
5
8
2 12
4,6
Active face
Active face
safety screws M4 x 14
are supplied
Flat seal
