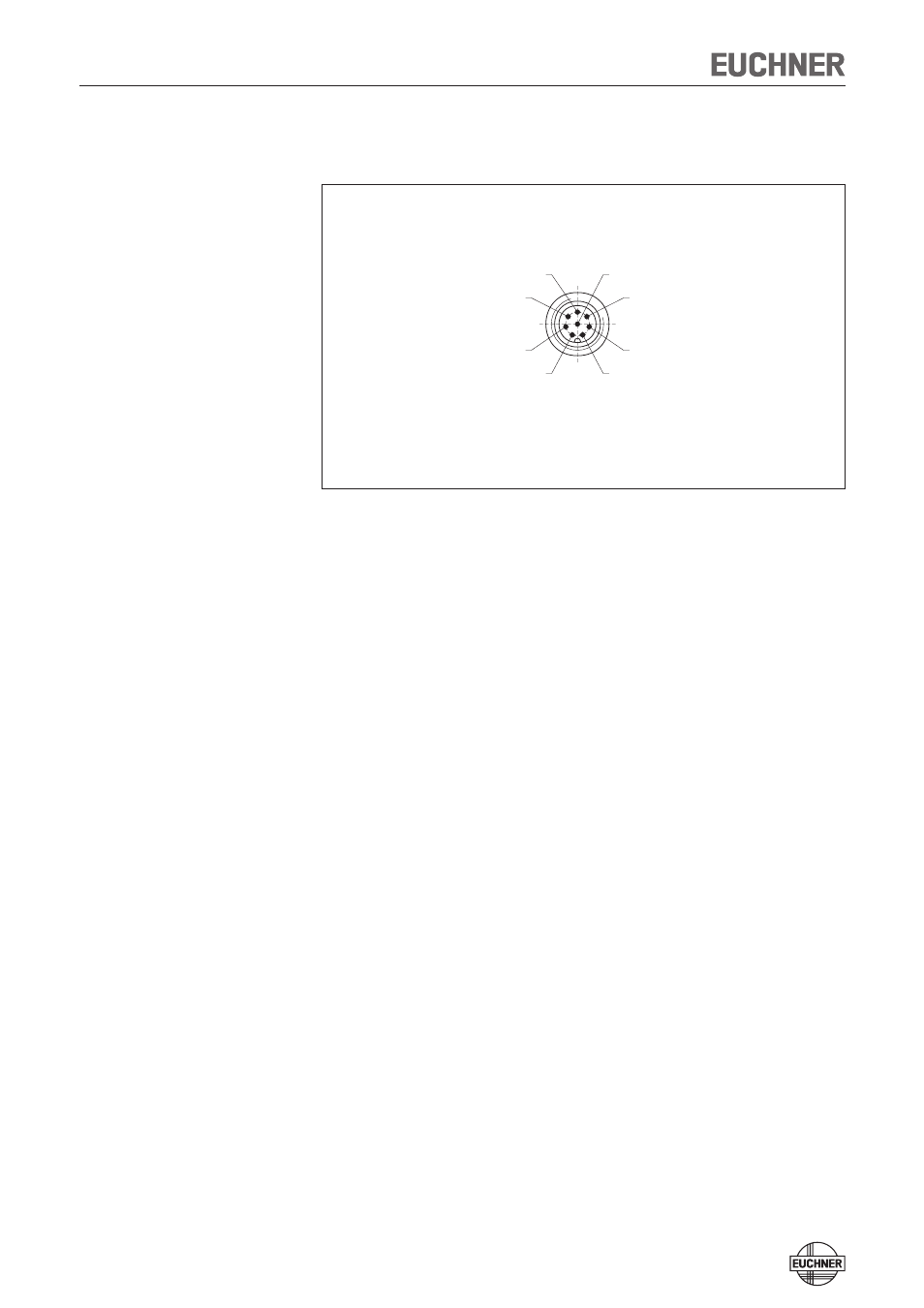

Pin assignment safety switch CES-A-W5...
LED indicators
STATE LED green Normal operation
Flashing Self-test after operating voltage is applied
OUT/ERROR LED yellow Valid actuator detected
LED red - Error message
(see status table)
Reset
In case of an operating fault, the evaluation unit can be reset to the operating state
by interrupting the power supply for approx. 10 seconds.
1  0 V 5  OUT
 + UB 6  + LA
3  LA 7  -LAB
4  LB 8  +LB
View of connection side of the device
The screen on the connection cable is con-
nected internally to the device screen bond-
ing clamp via the knurled nut on the M1
plug connector.
