Mounting
Caution!
Safety switches must not be bypassed (bridging of contacts), turned away,
removed or otherwise rendered ineffective.
Ì
On this topic pay attention in particular to the measures for reducing the pos-
sibility of bypassing according to EN 1088:1995.A2:2008, Sec. 5.7.
Ì
The evaluation unit must be mounted in a control cabinet with a minimum
degree of protection of IP 54. A snap-in element on the rear of the device is
used for fastening to standard rails.
Ì
If several evaluation units are mounted side by side in a control cabinet with-
out air circulation (e.g. fan), a minimum distance of 10 mm must be main-
tained between the evaluation units.
This distance enables the heat from the evaluation unit to dissipate.
Caution!
Risk of damage to equipment as a result of incorrect installation. Read heads
or actuators must not be used as a mechanical end stop.
Ì
Fit an additional end stop for the movable part of the safety guard.
Important:
Ì
From the assured switch-off distance S
ar
the safety outputs are safely shut
down.
Ì

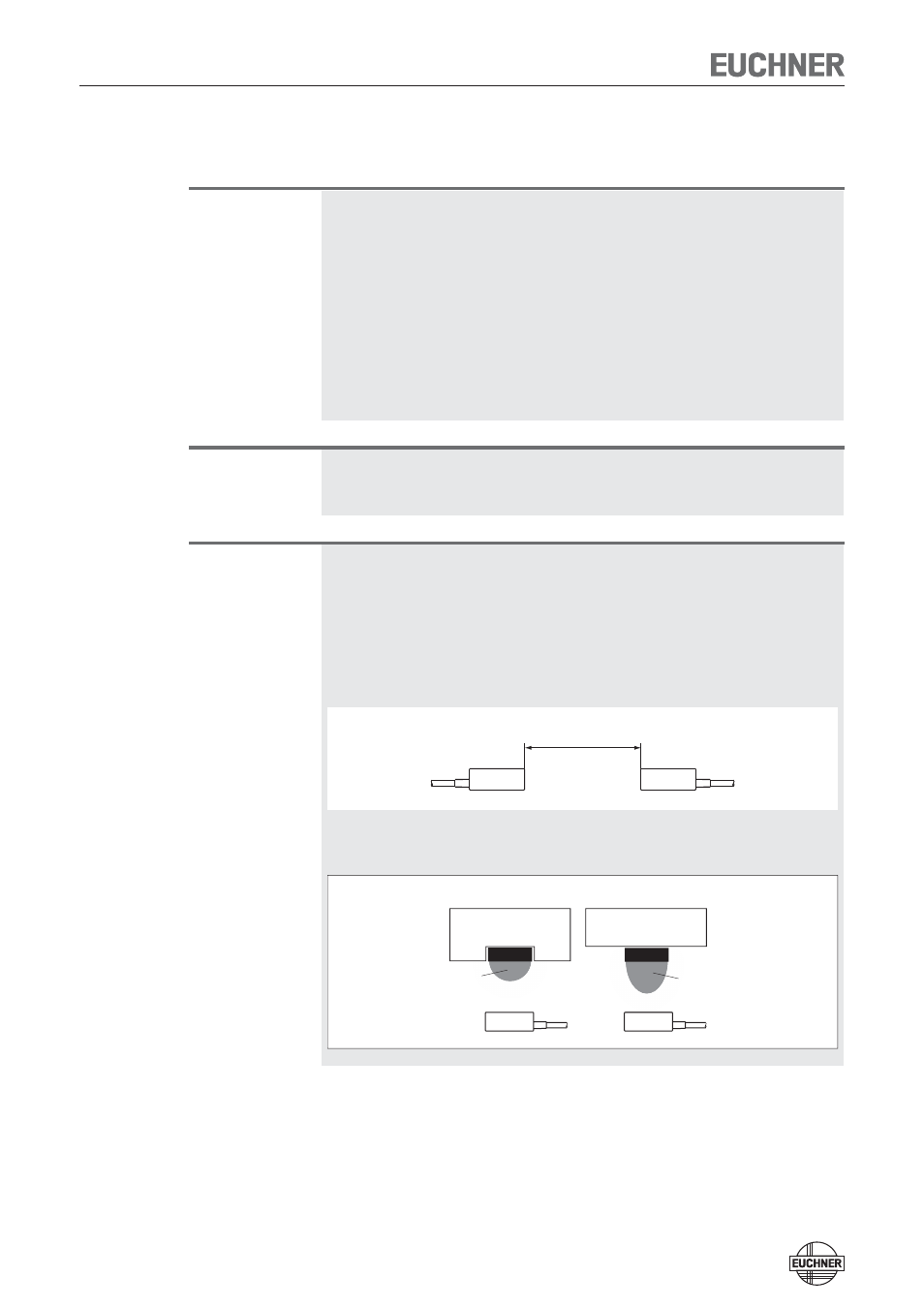

When mounting several read heads, observe the stipulated minimum distance
to avoid mutual interference.
- For CES-A-LNA/-LCA
s
min.
= 50 mm
- For CES-A-LMN s
min.
= 20 mm
- For CES-A-LQA s
min.
= 80 mm
s
min
Ì
If the actuator is installed fl ush, the switching distance changes as a function
of the installation depth and the safety guard material.
Operating
distance
Actuator
Operating
distance
Actuator
Flush mounting Surface mounting
