Actuator CES-A-BDA
Ì
Round design
∅ 20 mm
Ì
In combination with read head CES-A-LNA.../CES-A-LCA...

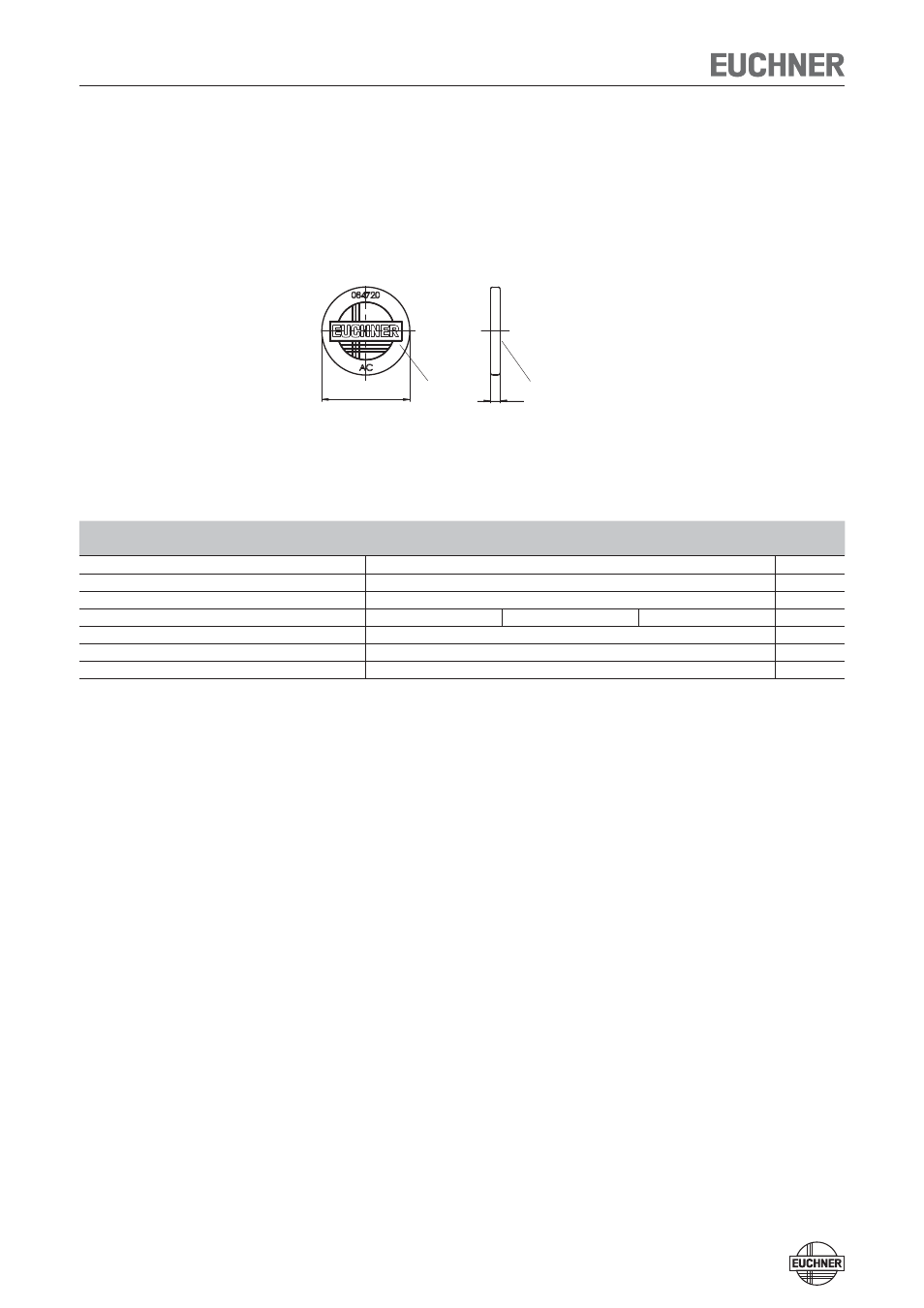

Dimension drawing
Technical data
Parameter
Value
Unit
min.
typ.
max.
Housing material
Plastic PC
Dimensions
∅ 20 x 2.2
mm
Weight
0.0008
kg
Ambient temperature
-25
-
+70
°C
Degree of protection
IP67
Installation position
Active face opposite read head
Power supply
Inductive via read head
∅ 20
2,2
Active face
Active face
