Change chasers and holders – ERICO Standard Bar Threader User Manual
Page 9
www.erico.com
9

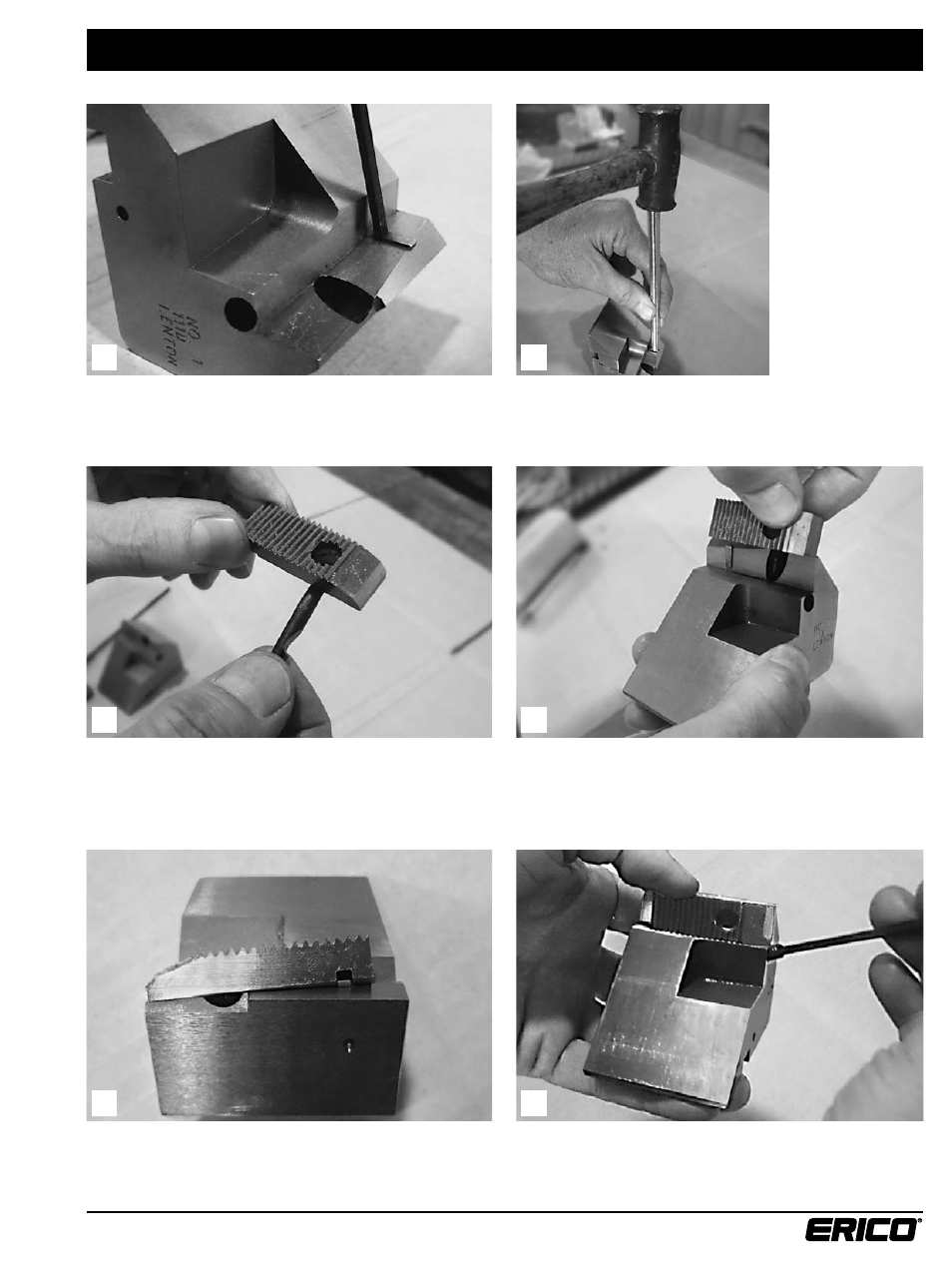

Before installing the chasers make sure the woodruff key
(ELMP223) is tight. Press on both ends of the woodruff key
with an allen wrench, it should not move.
To replace a woodruff key, set the key into the slot by hand
and drive into position using a hammer and punch.
Take the hold down pin (ELMP203PIN) and place it through
the hole of the chaser as shown above.
Insert the chaser pin into the top hole of the holder and push
down, making sure that the woodruff slot aligns with the
woodruff key, until the chaser sits completely flush on the
holder shelf.
This is what a chaser looks like when it is installed correctly
onto the holder.
After the chaser is installed correctly on the holder, hold the
chaser in place while tightening down the set screw against
the hold down pin.
Change Chasers and Holders
8
7
9
11
10
12
