ERITECH ® SYSTEM 1000 - Instruction Manual
For Standing Mast
DOWNCONDUCTOR
Bend radius of downconductor
should be equal or greater than
20 cm (8 in).
SI25i, SI40i, SI60i
Mast
Preferred
Angle
45˚ - 60˚
Do not over-tension Guy
Wires (slightly sagging)
Guy Kit*
Anchor Points not supplied
with GUYKIT
Support Base
* Guy Kit is not necessary for
Standing Mast up to 2 m.
CABTIESS

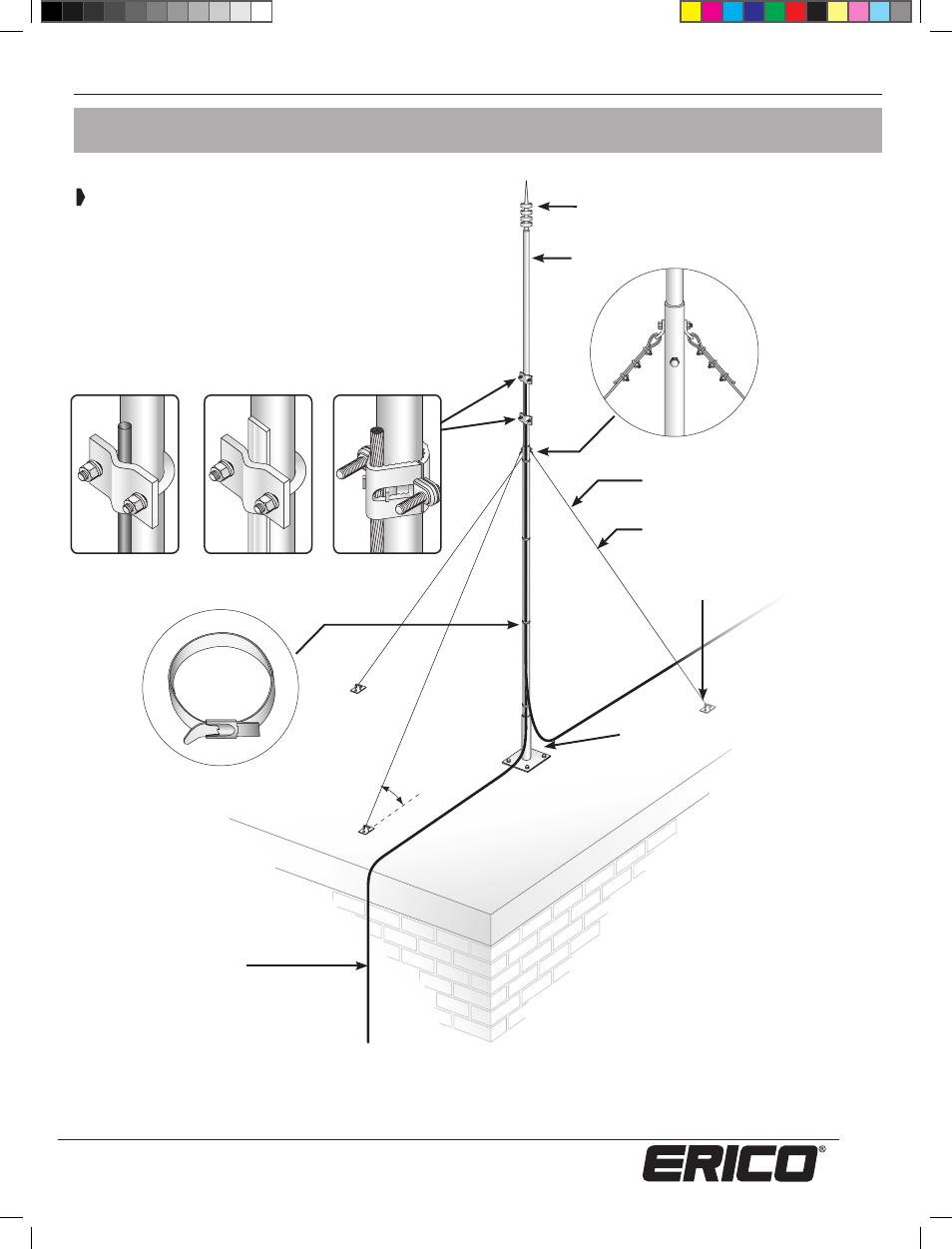

Typical MAST Installation Arrangement
Downconductor tightly compressed against mast
CABTIESS are installed 3
per meter to strap the
downconductor to the
remaining length of
lower mast.
