Typical mast installation arrangement, For cantilevered mast, Eritech – ERICO ERITECH INTERCEPTOR SI User Manual
Page 3: System 1000 - instruction manual
ERITECH
®
SYSTEM 1000 - Instruction Manual
www.erico.com
3

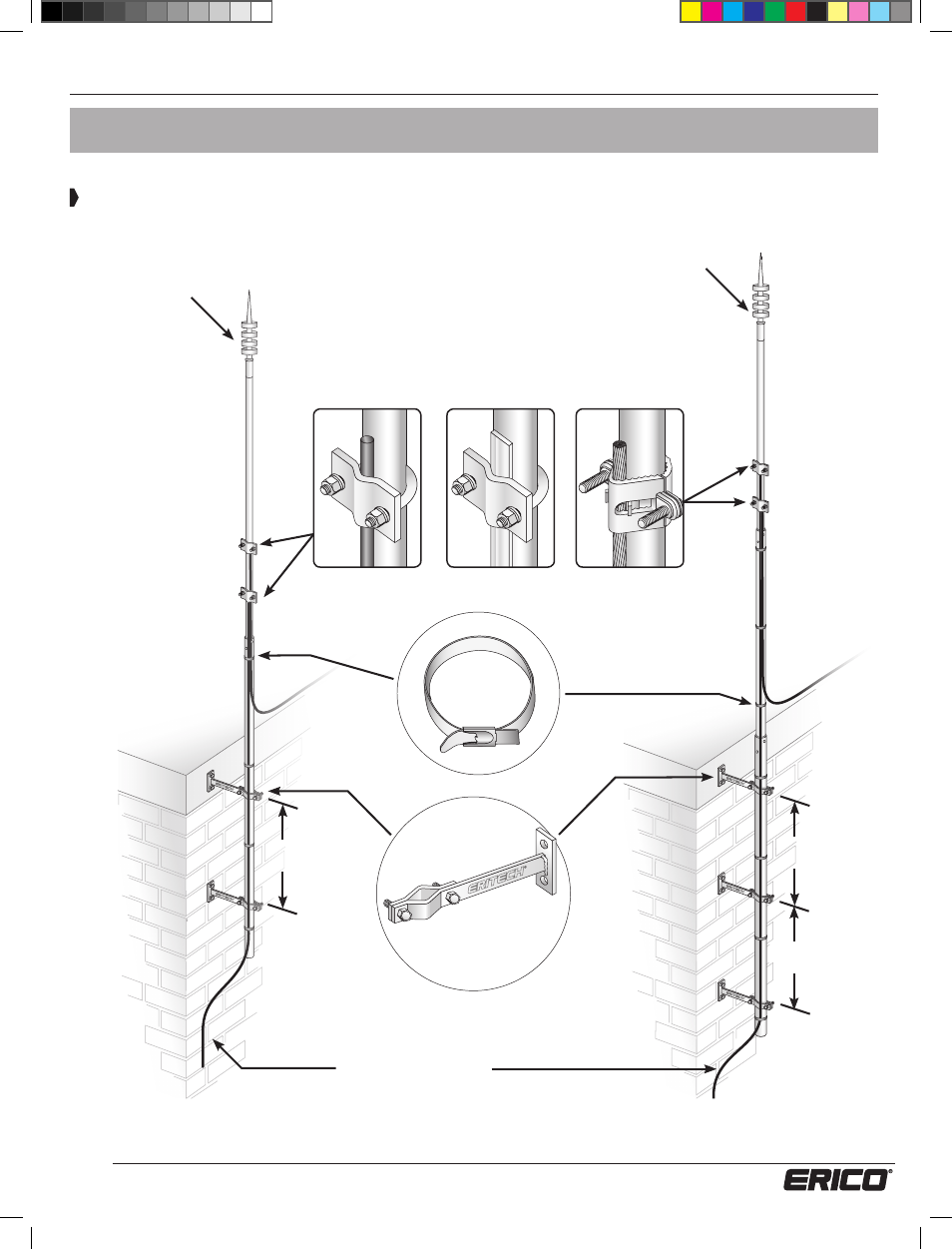

Typical MAST Installation Arrangement
For Cantilevered Mast
Downconductor tightly compressed against mast
CABTIESS are installed 3
per meter to strap the
downconductor to the
remaining length of
lower mast.
CABTIESS
ALOF-1-GS
SI25i, SI40i, SI60i
1 m
1 m
SI25i, SI40i, SI60i
DOWNCONDUCTOR
Bend radius of downconductor should be equal
to or greater than 20 cm (8 in).
For masts 5-6 m
above roof plane,
2 m lower
cantilever section
with 3 mounting
brackets
For masts 2-4 m
above roof plane,
1 m lower
cantilever section
with 2 mounting
brackets
1 m
or
or
E618IS13WWEN.indd 3
7/31/13 2:24 PM
