ERICO TDSGAPC14 Pipe Mount Grounding Bus - Manual (Page 2)

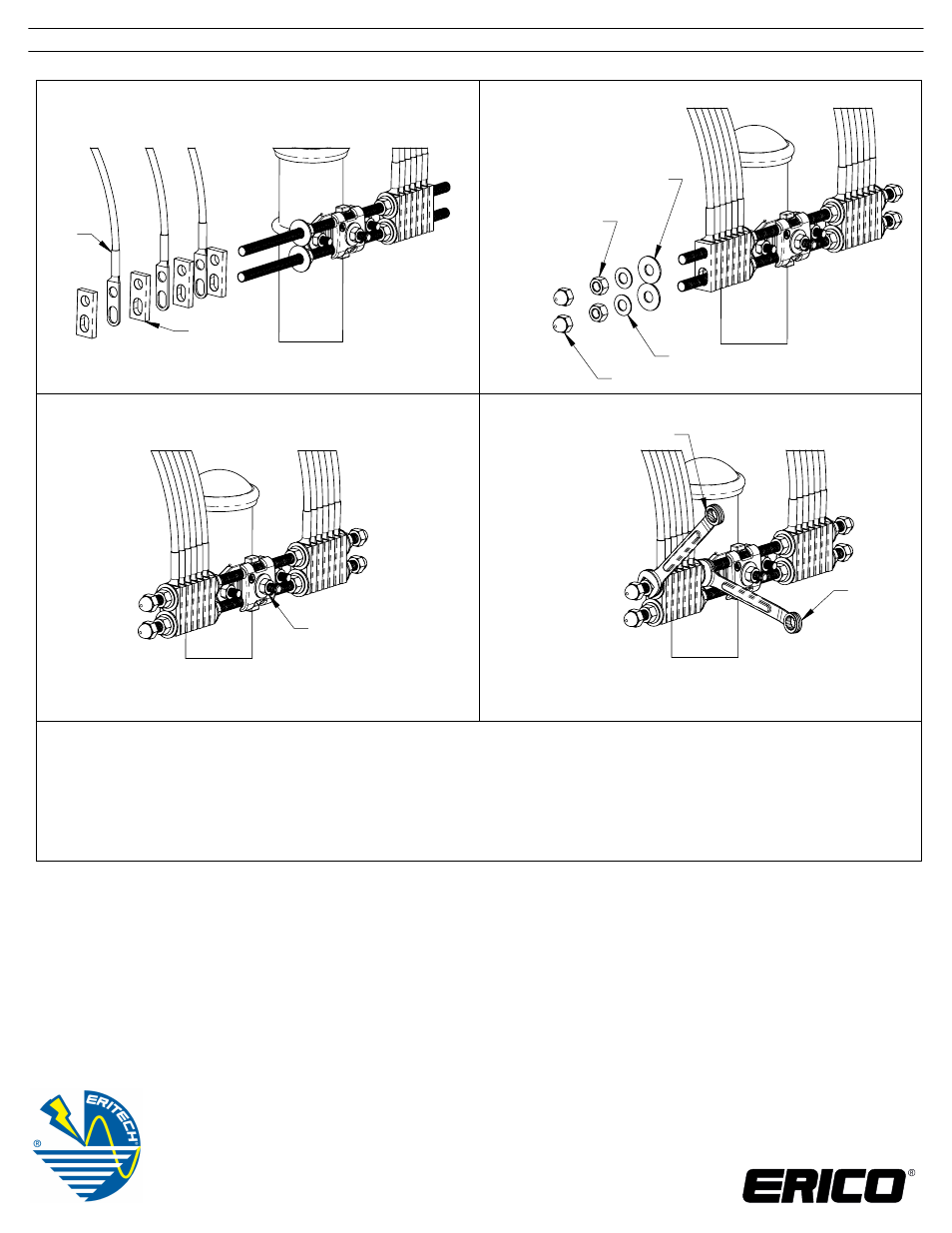

3/8-16 Acorn Nut
3/8-16 Hex Nut
Belleville Washer
3/8 Flat Washer
Tighten hex nut on rod connector.
Apply 12 ft-lbs (Max)
Note: In the absence of a torque wrench, snug bolt
and tighten 1/4-turn.
Hold
Apply 20 ft-lbs (max)
Spacer
Lug
Install lugs and spacers. Crimp lugs and wires together
prior to install. Apply anti-oxide compound to both
sides of each lug.
Maximum Lug Size: 6 AWG, two-hole lugs
Install outer hardware. Do not tighten.
Tighten inner and outer hardware.
Note: In the absence of a torque wrench, snug bolt
and tighten 1/4-turn.
After installation and welding are complete, cover exposed steel with cold galvanized coating (T372A, T358
or equivalent) if attached to a galvanized steel pipe.
The grounding bus must be electrically connected to the grounding system. Down-conductors may be used to
connect the grounding bus to the grounding system (6 AWG or larger). When using a CADWELD® exothermic
connection to connect the structure to the grounding system, remove the galvanized coating prior to welding.
TECHNICAL SUPPORT
www.erico.com IP8260_B 2 OF 2
