Sheet2, Drawing view5, Drawing view7 – ERICO Stamped Bonding Lugs User Manual

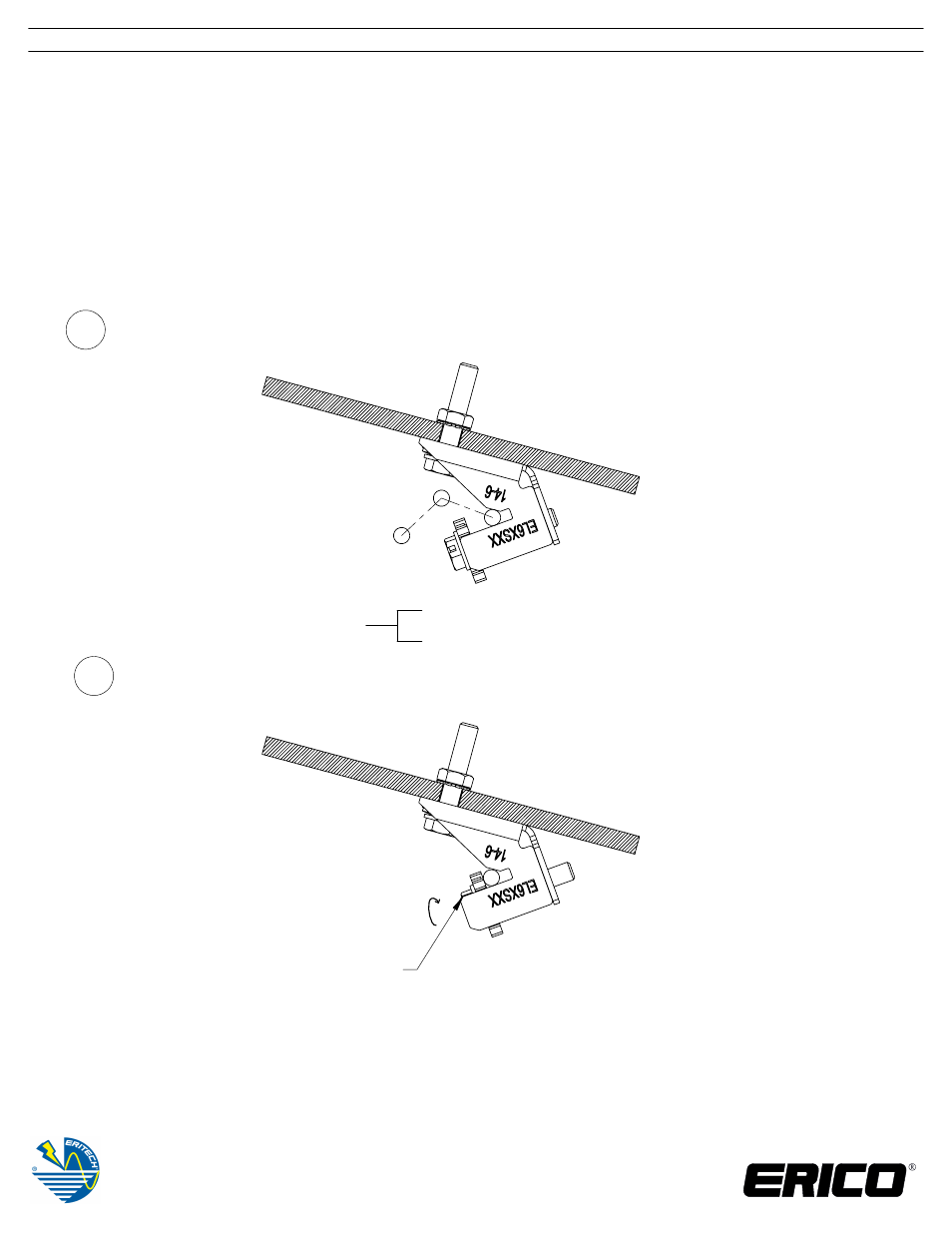

Page 2: Stamped bonding lugs, Ul® listed
2
UL® Listed
14 AWG Copper solid & stranded [1.5mm² ]
through
6 AWG Copper solid & stranded [16mm² ]
Wire installation torque:
Torque value for 14 - 6 AWG [1.5 - 16mm² ]
is 35 in-lb [4 N-m]
*see note 1
3
Installation tool:
socket or
screwdriver
(flat or phillips)
Note:
Torque value for 14 AWG stranded [1.5 - 2.5mm² ] is 15 in-lb[ 1.7 N-m]
1.
Stamped Bonding Lugs
EL6CS - Standard Tin-plated Bronze Version with #10 Hardware
EL6CSDB - Direct Burial Tin-plated Bronze Version with #10 Hardware
EL6CS8 - Standard Tin-plated Bronze Version with #8 Hardware
EL6CSDB8 - Direct Burial Tin-plated Bronze Version with #8 Hardware
EL6CSNH - Standard Tin-plated Bronze Version without Hardware
EL6CSDBNH - Direct Burial Tin-plated Bronze Version without Hardware
For 14-6 AWG [1.5 - 16mm² ] Solid & Stranded Copper Conductor
TECHNICAL SUPPORT
www.erico.com
IP8091_N
2 OF 2
INSTRUCTION SHEET
©2010,2011,2012,2013 ERICO International Corporation
