Installation – ERICO ERITECH IBTB Intersystem Bonding Termination User Manual
Page 2
DRILL
IF REQ'D
1/4" [6.4mm]
(4X)
#3
BONDING
CONDUCTORS
14 - 4 AWG
[1.5mm
2
- 25mm
2
]
SEE NOTE 3
2
1
2
NOTE 4: Torque value for 6 AWG Solid
[16mm
2
]
is 40 in-lb [4.5 n-m]
®
20 in-lb
[2.6 N-m]
(4X)
35 in-lb
[4 N-m]
(2X)
35 in-lb
[4 N-m]
6 - 2 AWG [16- 35mm
2
]
Grounding Electrode
Conductor
#1
1/8" [3.2mm]
DRILL
FOR PILOT
(4X)
NOTE 1: Mounting hardware
and anchors included.
#2
1
6 - 2 AWG [16- 35mm
2
] to
grounding electrode
conductor, equipment
grounding conductors in
service entrance enclosure
or exposed non flexible
metallic raceway
SEE NOTE 2
1
INSTRUCTION SHEET

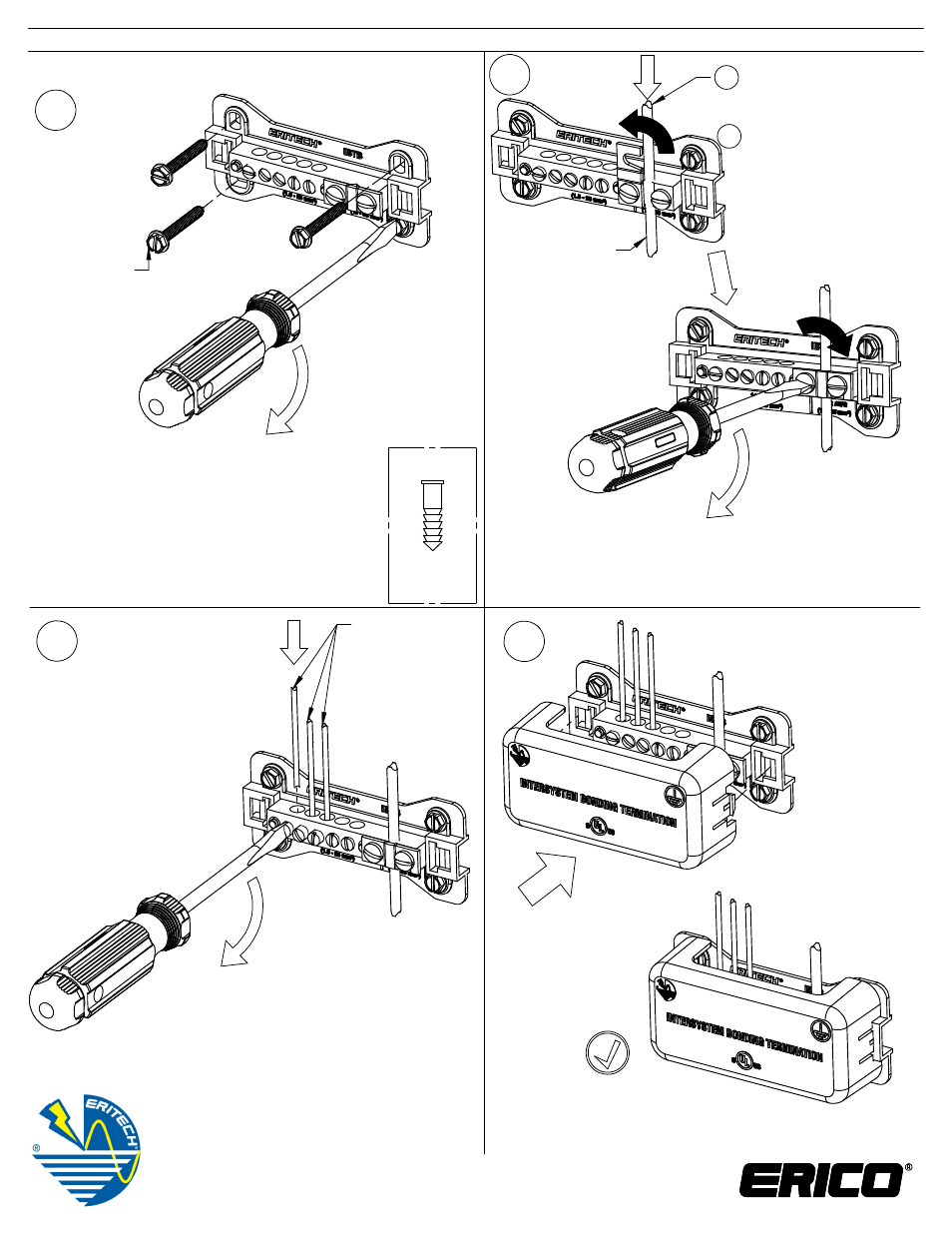

INSTALLATION:
TECHNICAL SUPPORT:
www.erico.com
2009 ERICO International Corporation
2 OF 2
©
CFS380_F
#4
NOTE 2: UL Listed for 6 - 2 AWG Solid
and 6 AWG Stranded
NOTE 3: UL Listed for 14 - 6 AWG Solid
and 14 - 4 AWG Stranded
4
3
2
