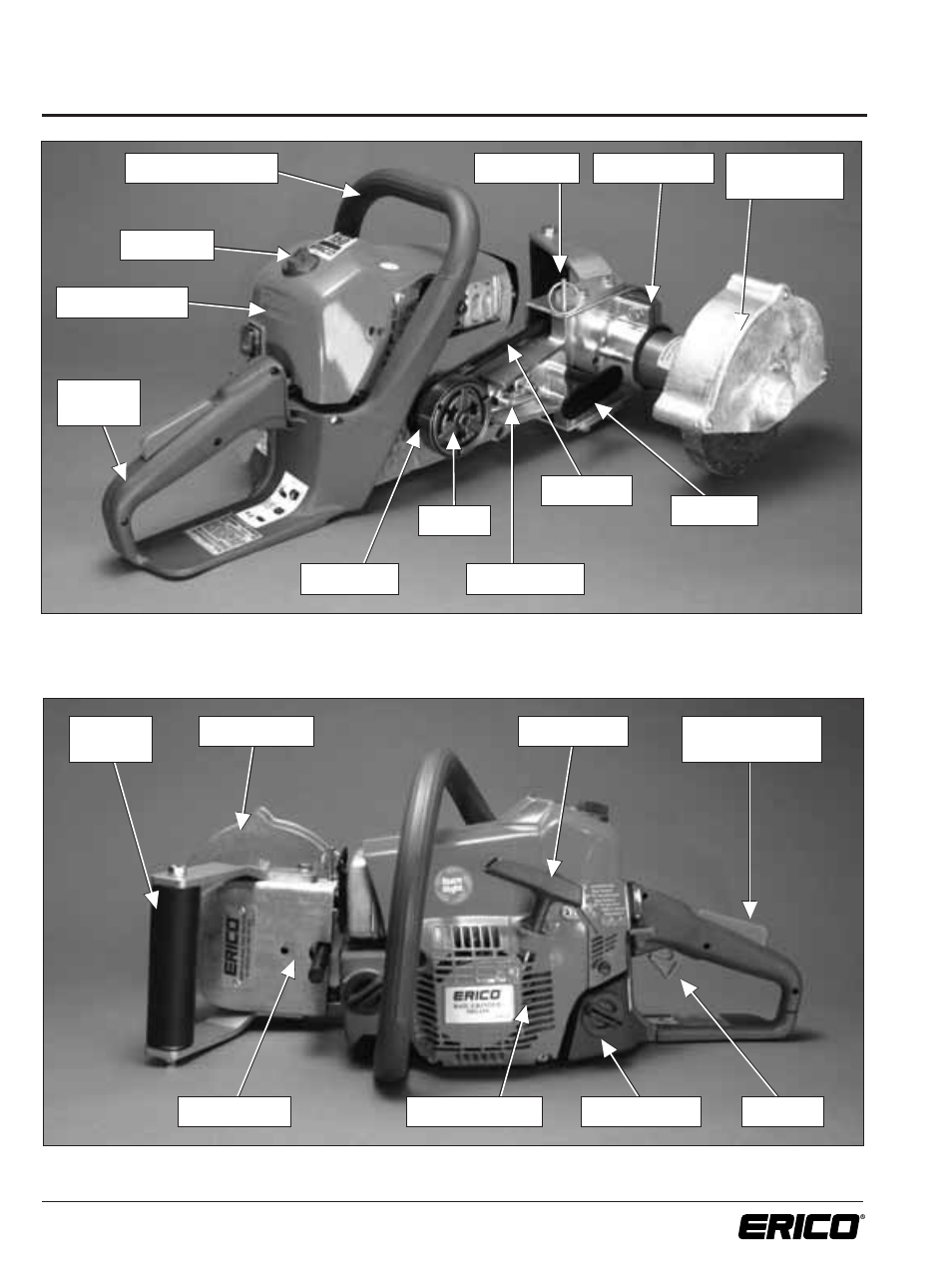

IDENTIFYING PARTS OF THE TOOL
2
www.erico.com
NOTE: Shown without side belt guard
THROTTLE
HANDLE
SUPPORT NUTS
SPRING COLLAR
TOOL REST
TWIST LOCK
AIR FILTER COVER
TRANSPORT HANDLE
WHEEL GUARD
COVER PLATE
DRIVE PULLEY
CLUTCH
DRIVE BELT
THROTTLE
FUEL RESERVOIR
COOL AIR INTAKE
PULLEY GUARD
STARTER GRIP
AUXILIARY
HANDLE
THROTTLE TRIGGER
INTERLOCK
WHEEL GUARD
LOCKING PIN
