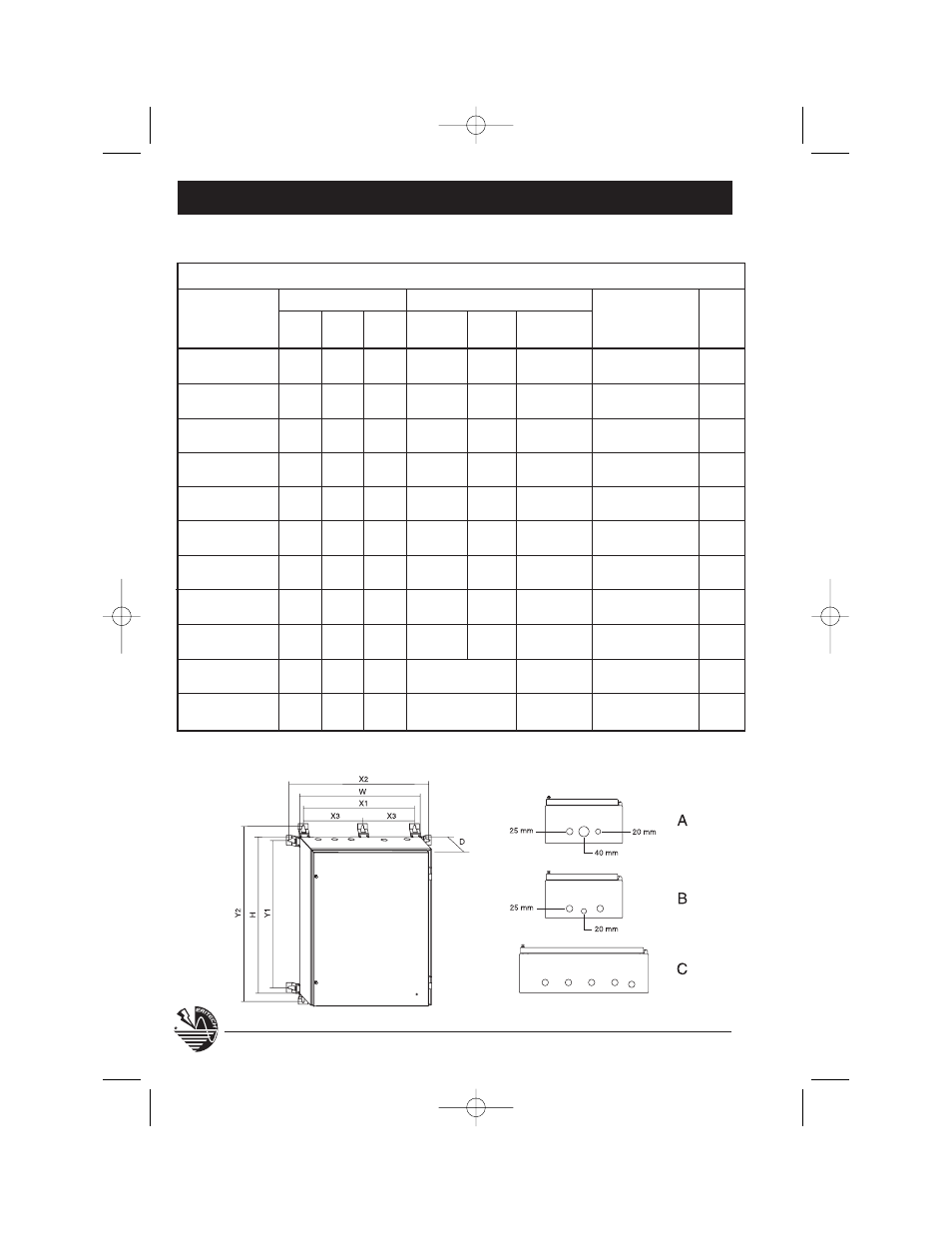

Physical Dimensions
10. PHYSICAL DIMENSIONS
Table 4. Physical dimensions of CRITEC ® TSG-SRFs
TSG-SRF DIMENSIONS
TSG-SRF ENCLOSURE SIZE MOUNTING CABLE MASS
MODEL X1 Y1 FASTENER ENTRY
W H D X2 Y2 DIAMETER
TSG-SRF140 300 400 170 260 477 Ø10 A 11
377 360
TSG-SRF163 300 400 170 260 477 Ø10 A 11
377 360
TSG-SRF1125 300 400 170 360 477 Ø10 B 13
377 360
TSG-SRF340 400 500 170 360 577 Ø10 A 20
477 460
TSG-SRF363 400 500 170 360 577 Ø10 A 20
477 460
TSG-SRF3125 500 650 175 460 727 Ø10 C (Ø25 mm) 38
577 610
TSG-SRF3200 500 780 215 460 857 Ø10 C (Ø32 mm) 52
577 740
TSG-SRF3400 650 1100 233 610 927 Ø10 GLAND PLATE 100*
727 810
TSG-SRF3630 850 1300 220 (X3) 405 1227 Ø10 GLAND PLATE 120*
927 1110
TSG-SRF31250 1200 1650 315 ON Ø12 GLAND PLATE 350*
APPLICATION
TSG-SRF32000 1200 1650 315 ON Ø12 GLAND PLATE 400*
APPLICATION
* Indicative mass only. If exact mass is critical for these
units, contact ERICO
® for confirmation.
