Sheet2, Drawing view8, Drawing view14 – ERICO Plumbing Pre-Fab Bracket User Manual
Page 2: Drawing view17, Detail view b (3 : 5)

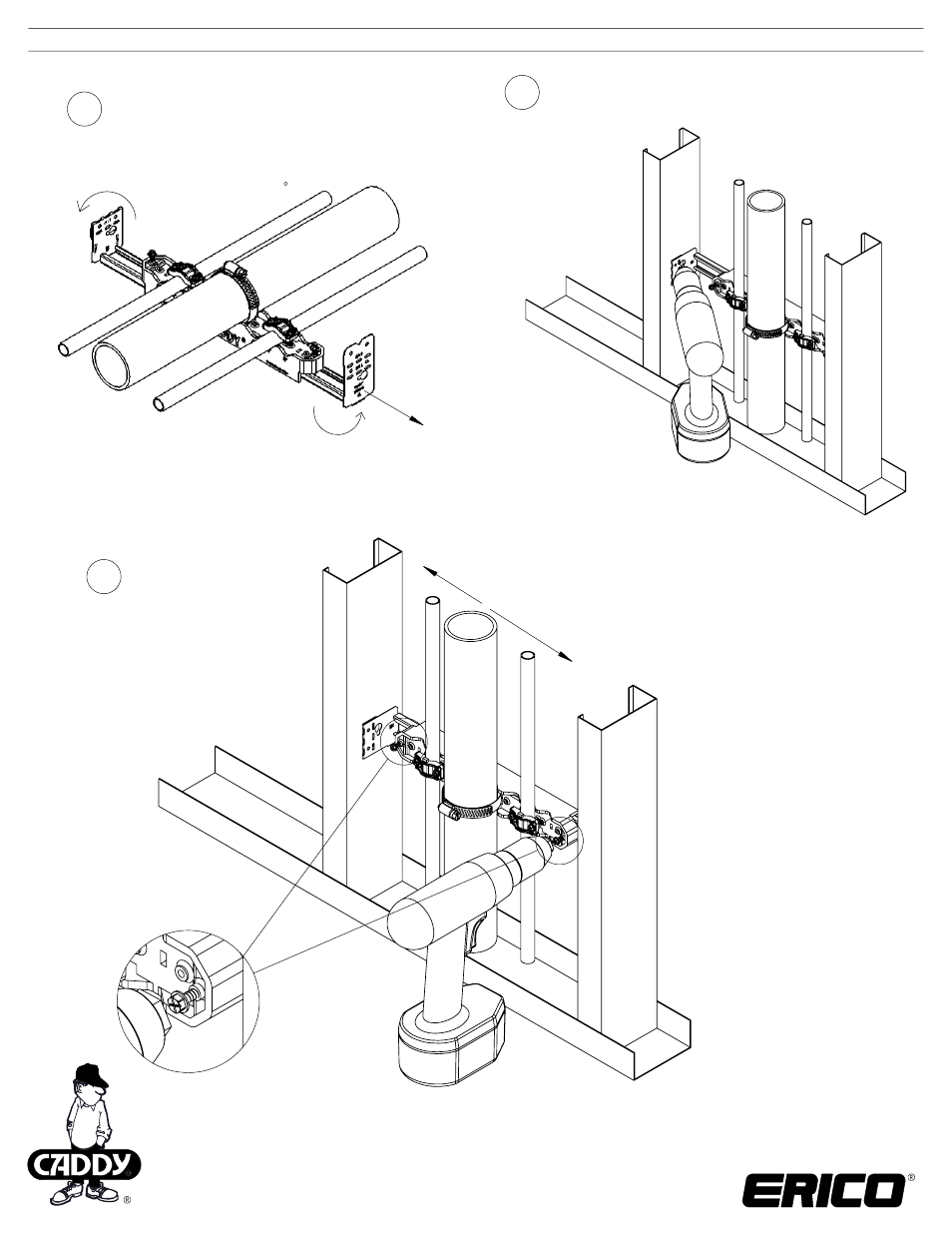

Telescope bracket out to width
of studs and bend ends up
5
Telescope out
Bend ends up
Contractor tip:
Bend tab back 180
for added room
6
Attach fastner to side face of the
stud with a screw gun
Slide assembly side to side to locate
7
Slide pipe assembly to desired
location and lock down with
pre-installed screws
TECHNICAL SUPPORT:
www.erico.com
CFS492_B
INSTRUCTION SHEET
2 OF 2
