Sheet4, Csbezu – ERICO CSBEZU - Sway Brace Fitting, Easy Universal Sway Brace User Manual
Page 4
CSBEZU is a Sway Brace Fitting. It is intended to be combined with a CADDY®
brand Structural Attachment Fitting and "Bracing Pipe" to form a complete bracing assembly.
Sway Braces are intended to be installed in accordance with NFPA®-13 and the manufacturer's
assembly and instructions.

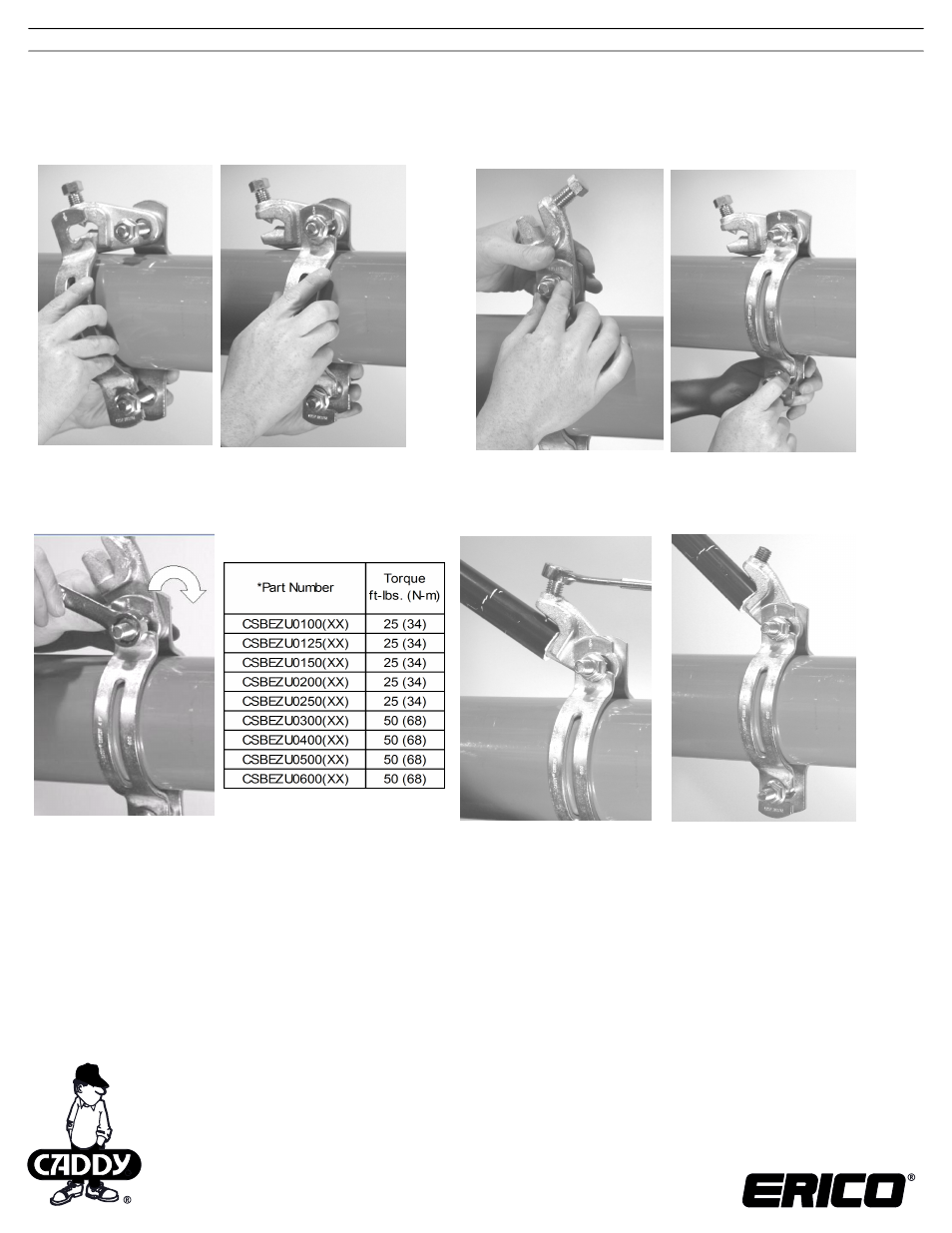

Rotate slotted stamped component over bolts.
(Hardware does not have to be removed)
*Slot should face away from brace pipe.
Finger tighten nuts and rotate assembly to desired
orientation.
Tighten bolt that passes through CSBUNIV (brace clamp)
to proper torque (reference torque chart) first, then
proceed with other bolt.
Insert brace into clamp as far as possible.
Tighten shear head set screw until head snaps off.
#1
#2
#3
#4
*(XX) Finish Specifier
* All Brace and
Service Pipes shown,
not included
TECHNICAL SUPPORT:
www.erico.com
CFS386_H
INSTRUCTION SHEET
4 OF 17
© 2009, 2011, 2012, 2013, 2014 ERICO
International Corporation.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
CSBEZU
Easy Universal Sway Brace or Restraint Device
Sway Brace Fitting
