Page 2
#2
#1B
#1A
be tightened securely to flange prior to other structural attachments or brace materials being secured to CSBBARJ.
#6
Sway Braces are intended to be installed in accordance with NFPA-13 and the manufacturer's assembly and instructions.
#5
#4
#3

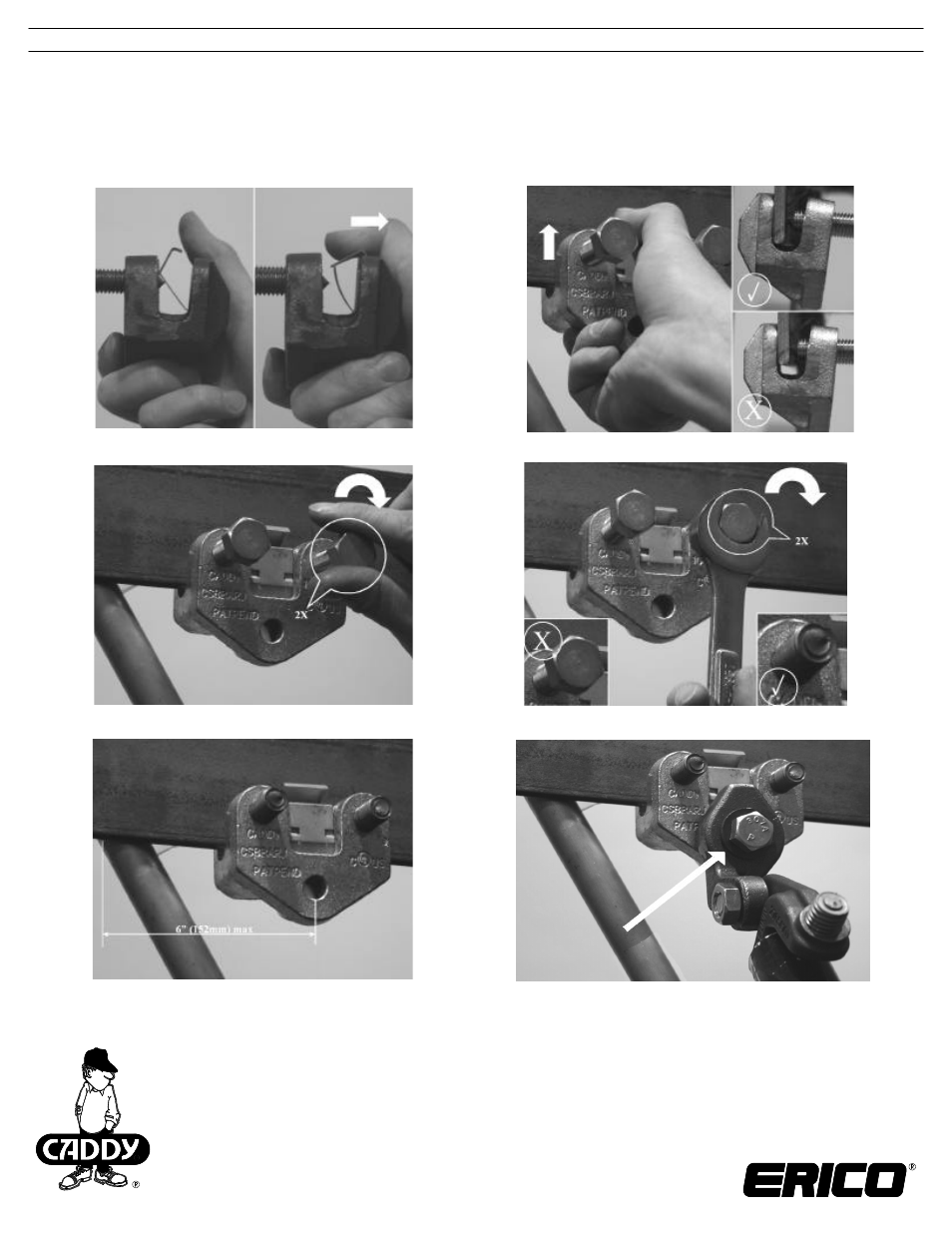

CSBBARJ is a Structural Attachment Fitting. It is intended to be combined with CSBUNIV, TP225, and SB55N Structural
Attachment Fittings, "Bracing Pipe" and a CADDY® brand Sway Brace ("Braced Pipe") Fitting to form a complete bracing
assembly.
CAUTION : Spring only to be used as installation aid and is designed to support weight of CSBBARJ only. CSBBARJ must
MINIMUM INSTALL TORQUE
55ft-lb (75 N-m)
CFS390_C
© 2009 ERICO International Corporation
2 OF 2
www.erico.com
TECHNICAL SUPPORT:
INSTRUCTION SHEET
CSBBARJ
STRUCTURAL ATTACHMENT FITTING
BAR JOIST ADAPTER
