Brother 565 User Manual
Page 105
12 - 12 TROUBLESHOOTING AND ROUTINE MAINTENANCE
6

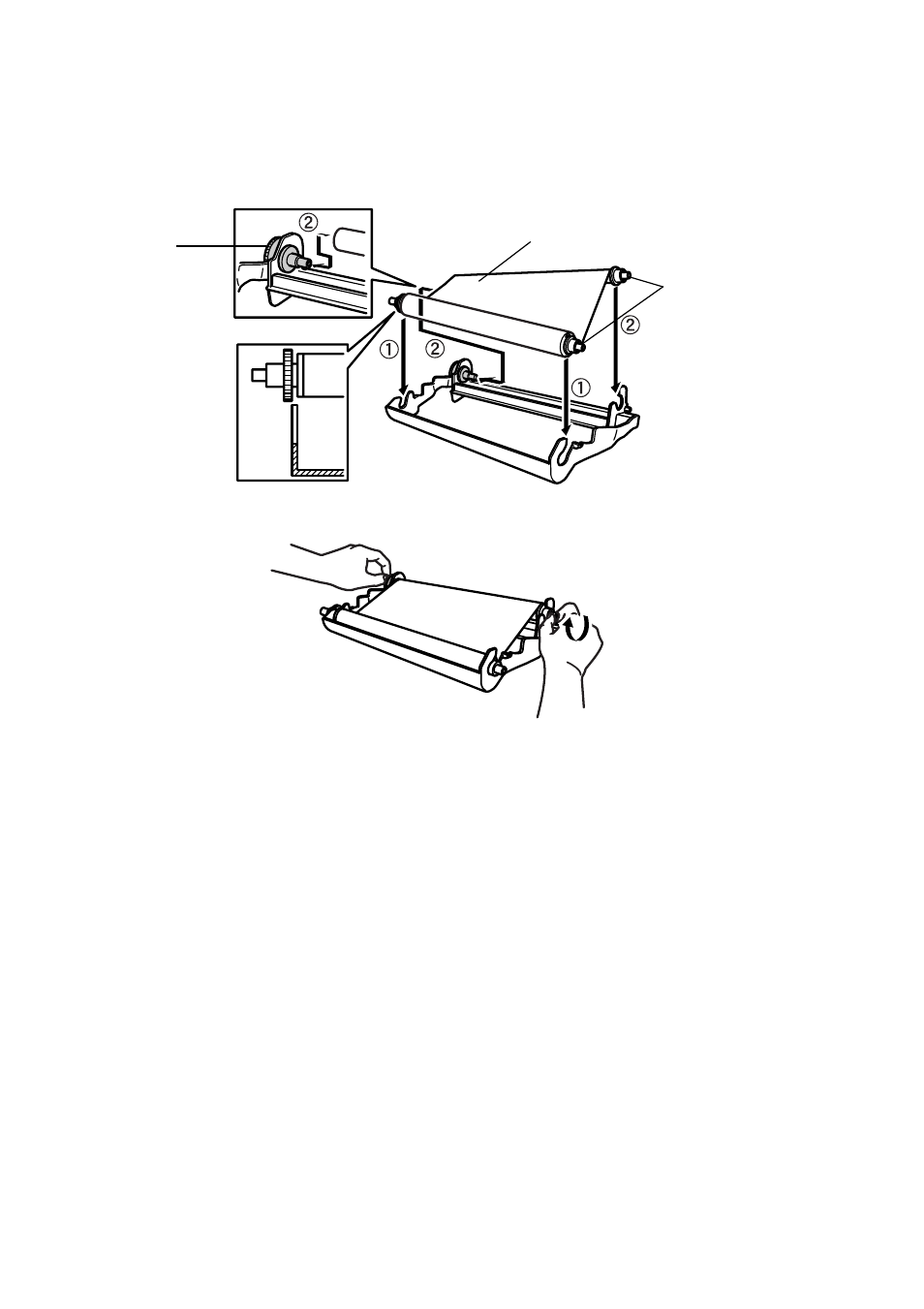

Install the new ribbon in the cartridge:
1 Insert the lower roll into the cartridge holders.
2 Slip the upper left cardboard core onto the blue gear of the cartridge and
insert the upper roll into the cartridge holders.
7
Turn the upper right white spool clockwise to tighten the ribbon, as shown.
White Spool
Blue
Gear
Shiny side is face down.
