Gold Trombone Installation Guide (EtherCAT and CAN) Installation
MAN-G-TROIG-EC (Ver. 1.604)
www.elmomc.com
74
Pin (J2) Signal Function
26 3.3 V 3.3 V for Ethernet LEDs
27 PHY_IN_RX+ Ethernet RX + Line
29 PHY_IN_RX- Ethernet RX – Line
31, 32 Ethernet COMRET Ethernet Communication return
33 PHY_IN_TX+ Ethernet TX + Line
35 PHY_IN_TX- Ethernet TX – Line
39 PHY_IN_SPEED Indicates Ethernet Speed
37 PHY_IN_LINK_ACT Indicates Ethernet LINK
Table 23: Ethernet - Pin Assignments

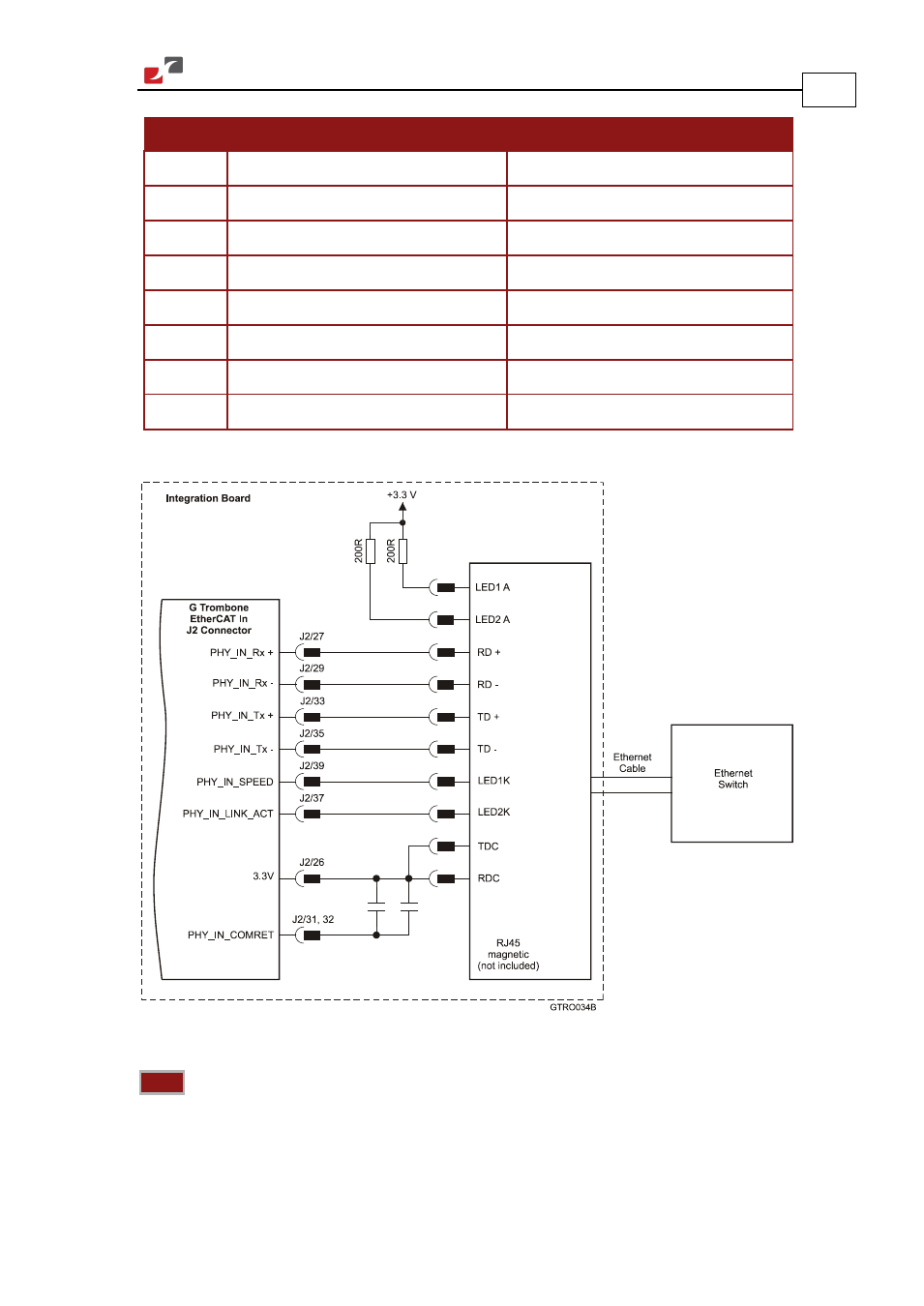

Figure 35: Ethernet Network Schematic Diagram
Note: The diagram above ignores line interface for simplicity.
