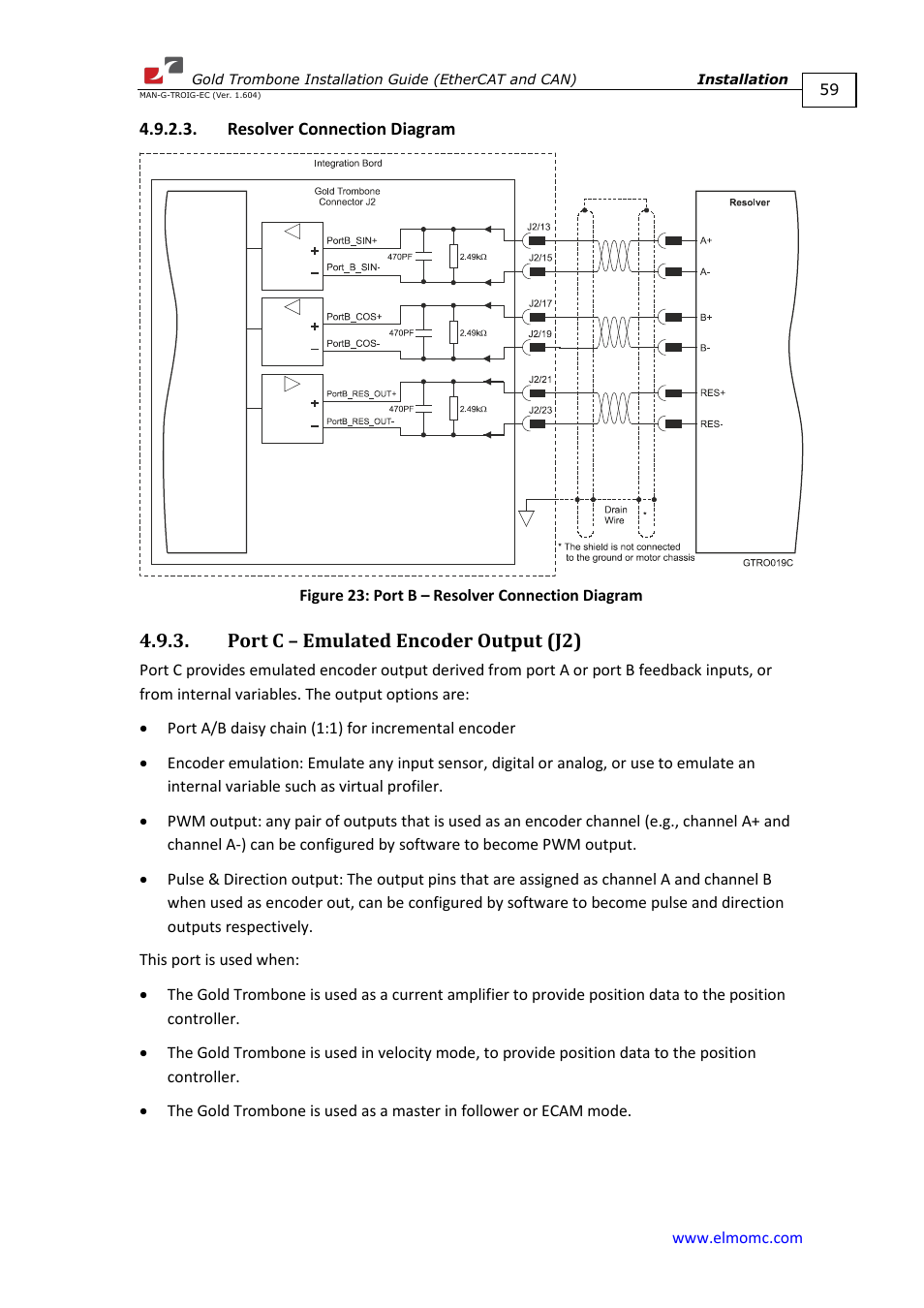

Resolver connection diagram, Port c – emulated encoder output (j2) – ElmoMC Gold Line Digital Servo Drives-Gold Trombone User Manual
Page 59
