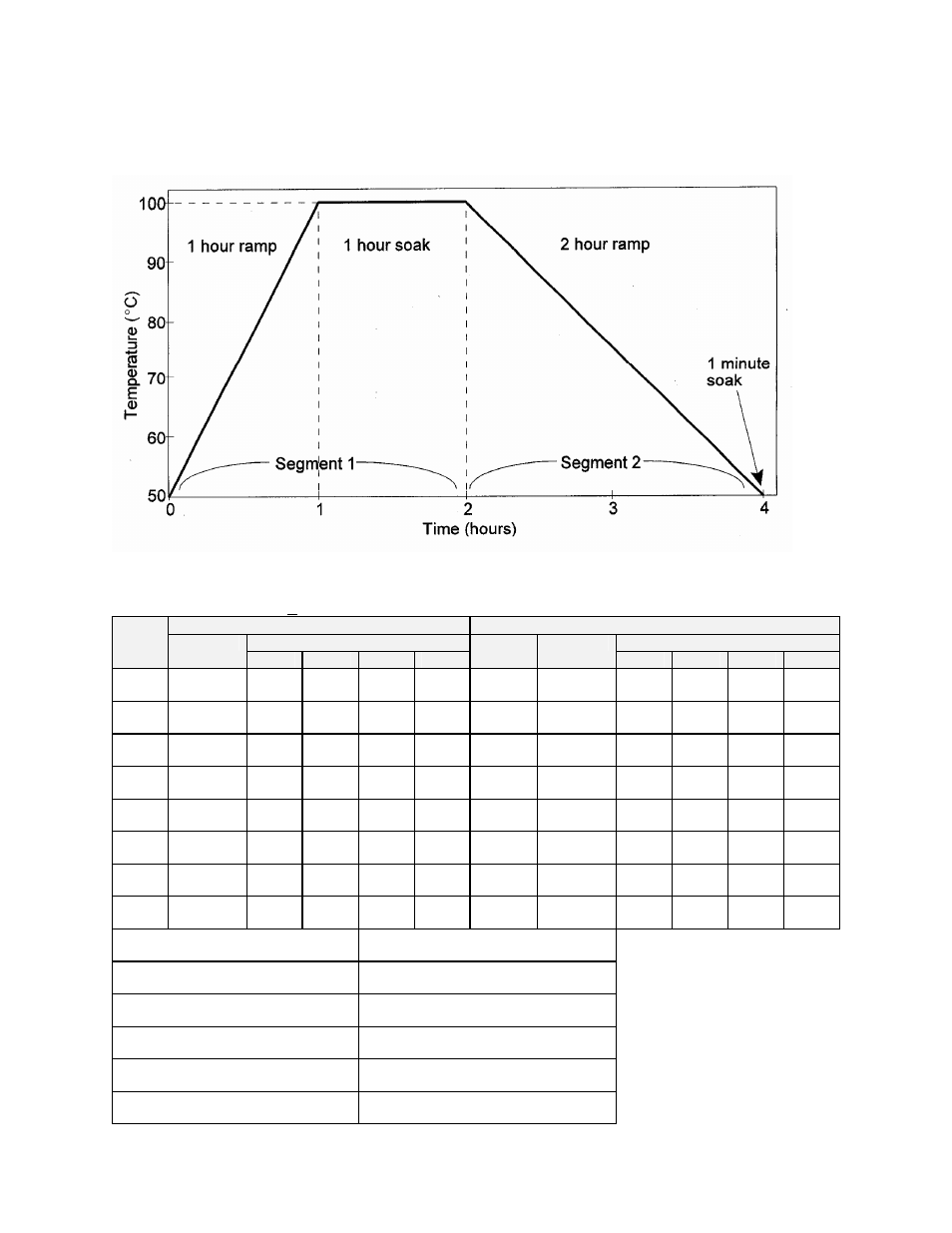

Sample Profile (Blank Program Table on Page 67)
Programming Table
Profile Number____1______
Profile Name__________
Ramp Soak
Events Events
Seg-
ment Time
1 2 3 4
Temp-
erature
Time
1 2 3 4
1 01h00 100 01h00
2 02h00 50 00h01
3 00h00
4
5
6
7
8
High Limit Setpoint 115
Loop From Seq No
Loop To Seq No
Loop Number 0
Link To Pro No
Guar Soak Band 10
