11

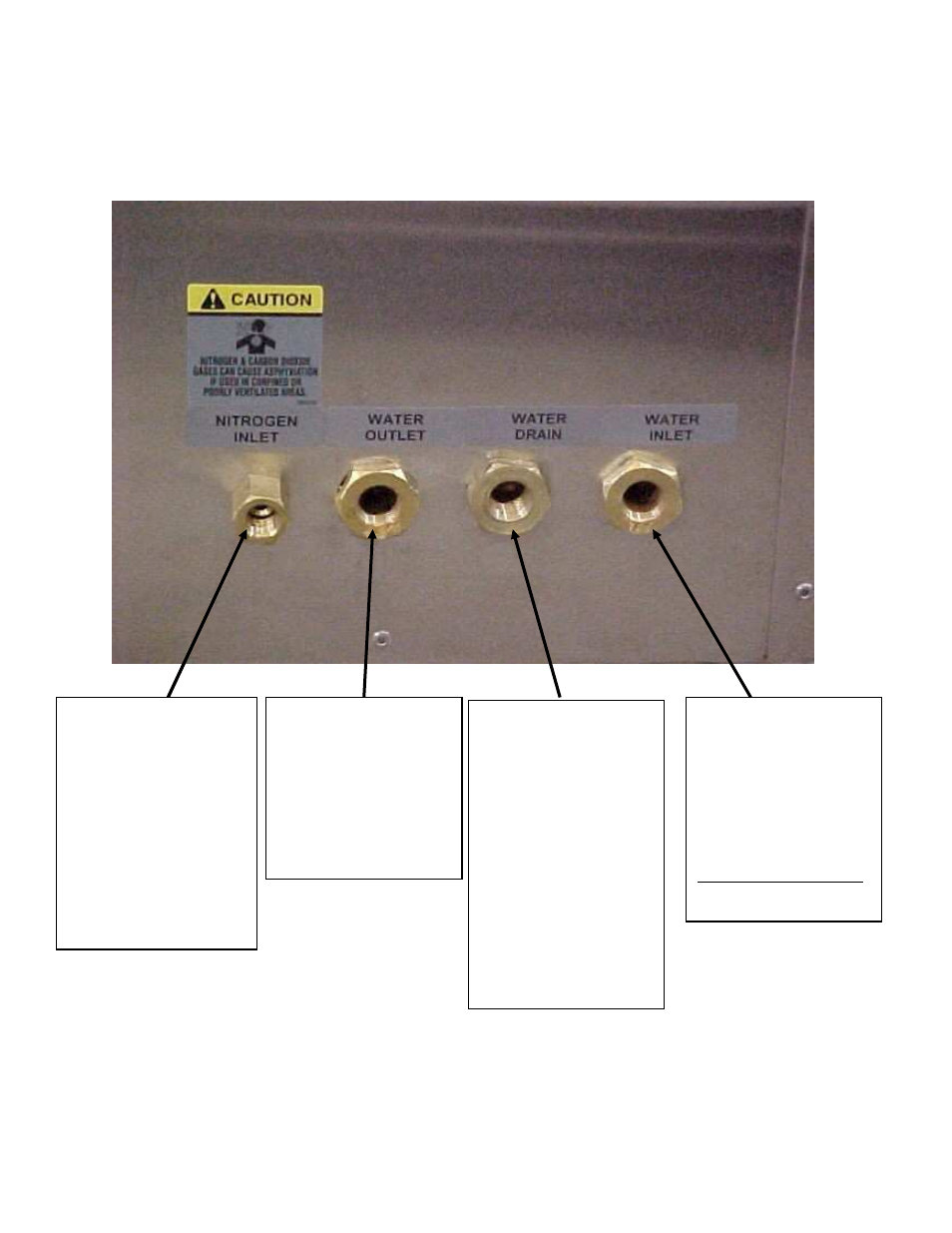

LCC/LCD1-16N & 51N-3 UTILITY CONNECTIONS
Nitrogen or Clean Dry Air
Inlet.
70 to 80 PSI (4.83 to 5.52
Bar).
Used for Nitrogen/Clean
Dry Air Purge and
Maintain Inlet and to
purge water out of the
coil prior to heating the
oven.
3/8” NPT female brass
connections are
provided.
During cooling cycle,
water flows through the
water coil and out this
connection.
3/8” NPT female brass
connections are
provided.
Piping must be rated for
up to 250
°
F (121
°
C)
At the end of a cooling
cycle, Nitrogen or Clean
Dry Air is purged
through the water coil.
Water and pressurized
nitrogen/air exit this
connection for 30
seconds. Must be
connected to gravity
style drain (no
backpressure).
3/8” NPT female brass
connections are
provided.
Piping must be rated for
up to 250
°
F (121
°
C)
Water Inlet for cooling.
3/8” NPT female brass
connections are
provided.
Requires 3 GPM flow at
61
°
F (16
°
C) to meet
published cooling rates.
MAXIMUM PRESSURE
100 PSI (6.89 Bar)
