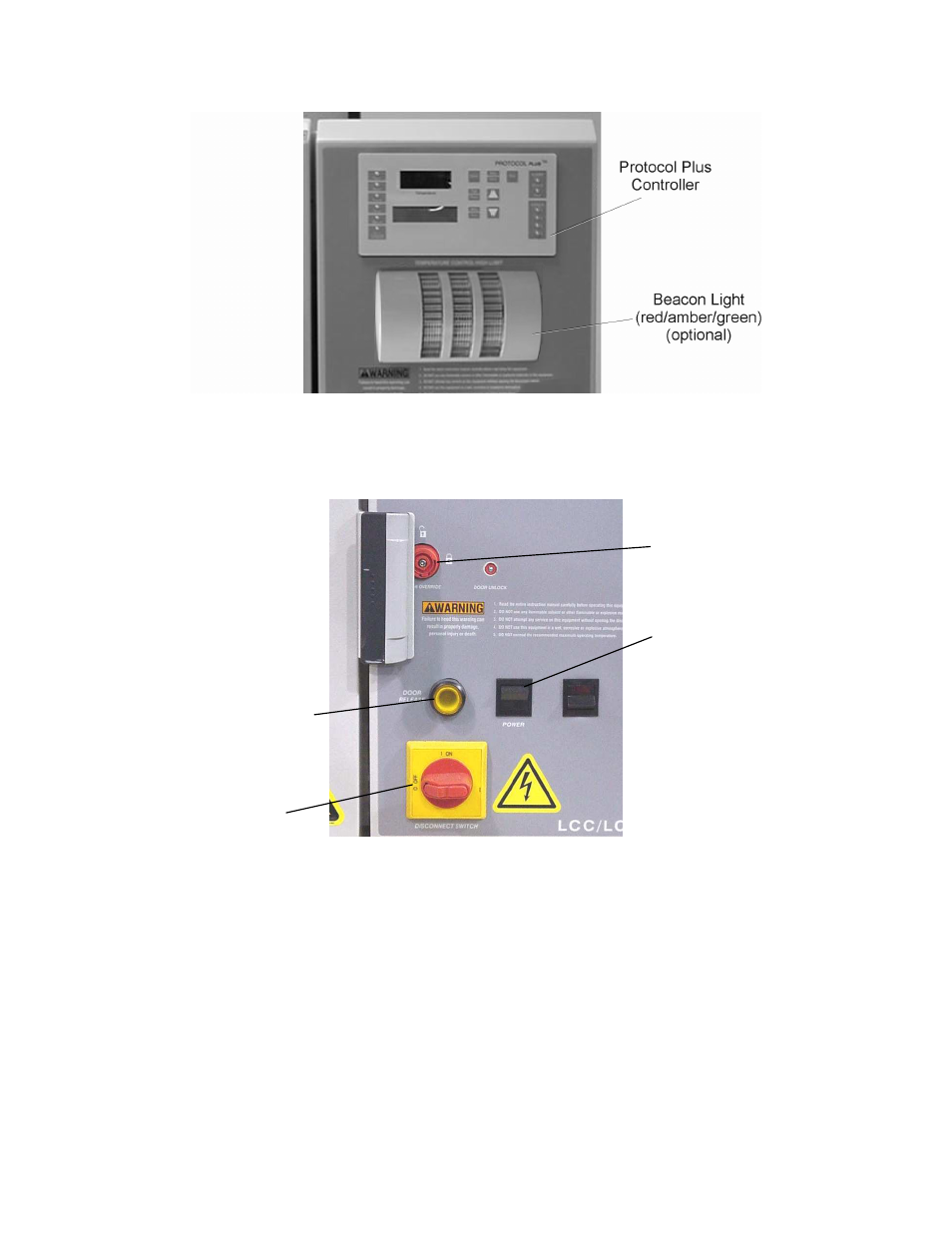

Upper Portion of Control Panel (optional beacon light installed)
Lower Portion of Control Panel
Manual Unlock: In the event of power failure, a torx tip tool (provided) may be inserted
and rotated 90 degrees counterclockwise to allow the chamber door to open. It must be
turned back to the locked position to allow electrical operation again.
Main Disconnect Switch: This disconnect switch (yellow with red knob) is connected to
the load break switch behind the panel that disconnects or connects power from the
main line.
Main
Disconnect
Switch
Door Release
Pushbutton
Power ON
Switch
Secondary
Chamber Lock
