16
Wiring
NOTE that the oven must be directly
hardwired to the disconnect switch
on the equipment panel. Please see
the picture for the wiring conduit (rear
and front). A conduit opening is provided at the rear of the oven. A conduit run is
provided from the rear oven equipment area to the front equipment panel, through
which line voltage power wiring can be connected to the disconnect switch labeled line
connection in the front of panel. Consult the electrical drawings included with the oven
for wiring details.
WARNING:
All grounding and safety equipment must be
in compliance with applicable codes,
ordinances and accepted safe practices.

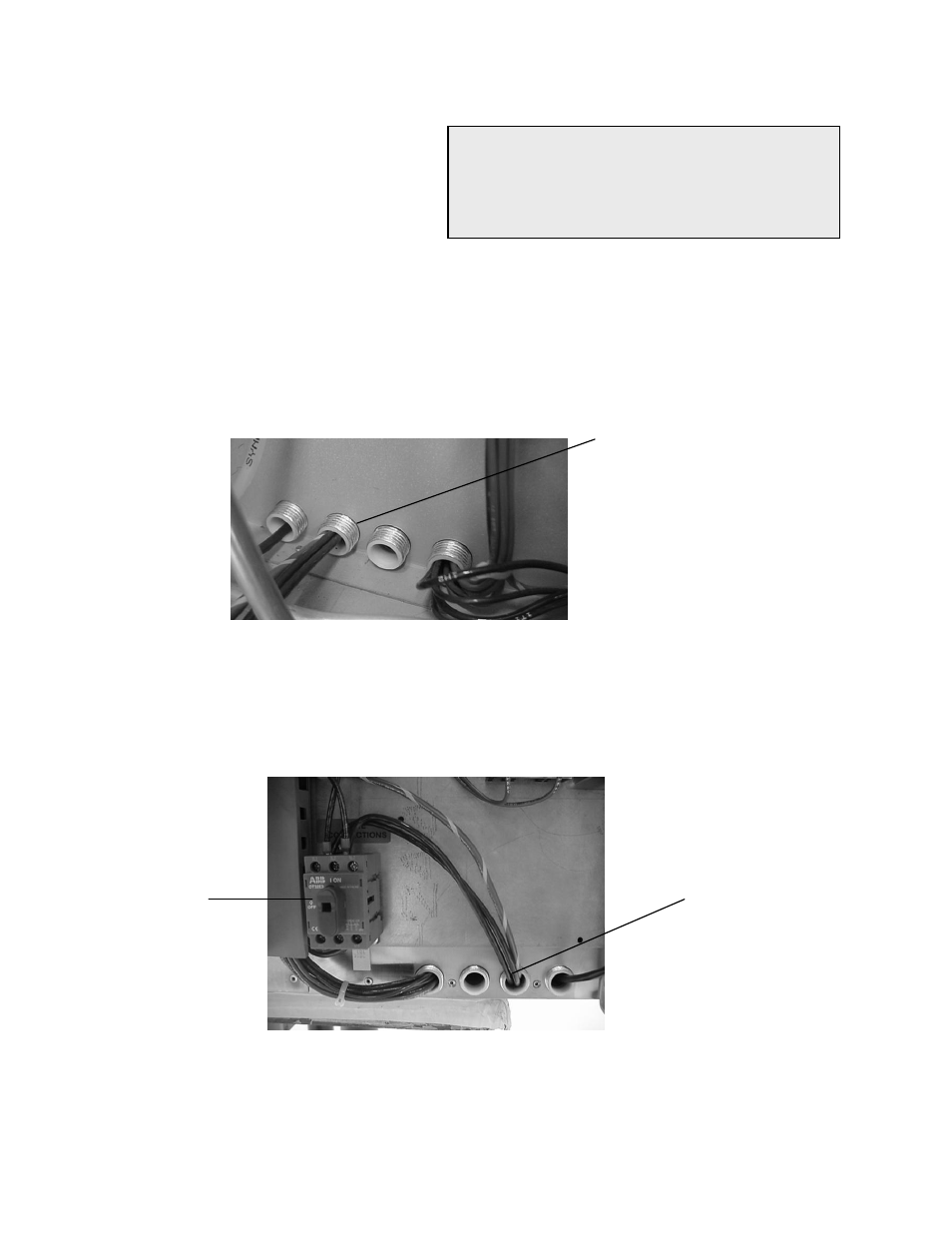

Rear View of Wiring Conduit
Inlet of line
voltage power
Front View of Wiring Conduit
Outlet of line voltage
power (connect to the
main disconnect switch)
Load break switch
(line connection)
