13

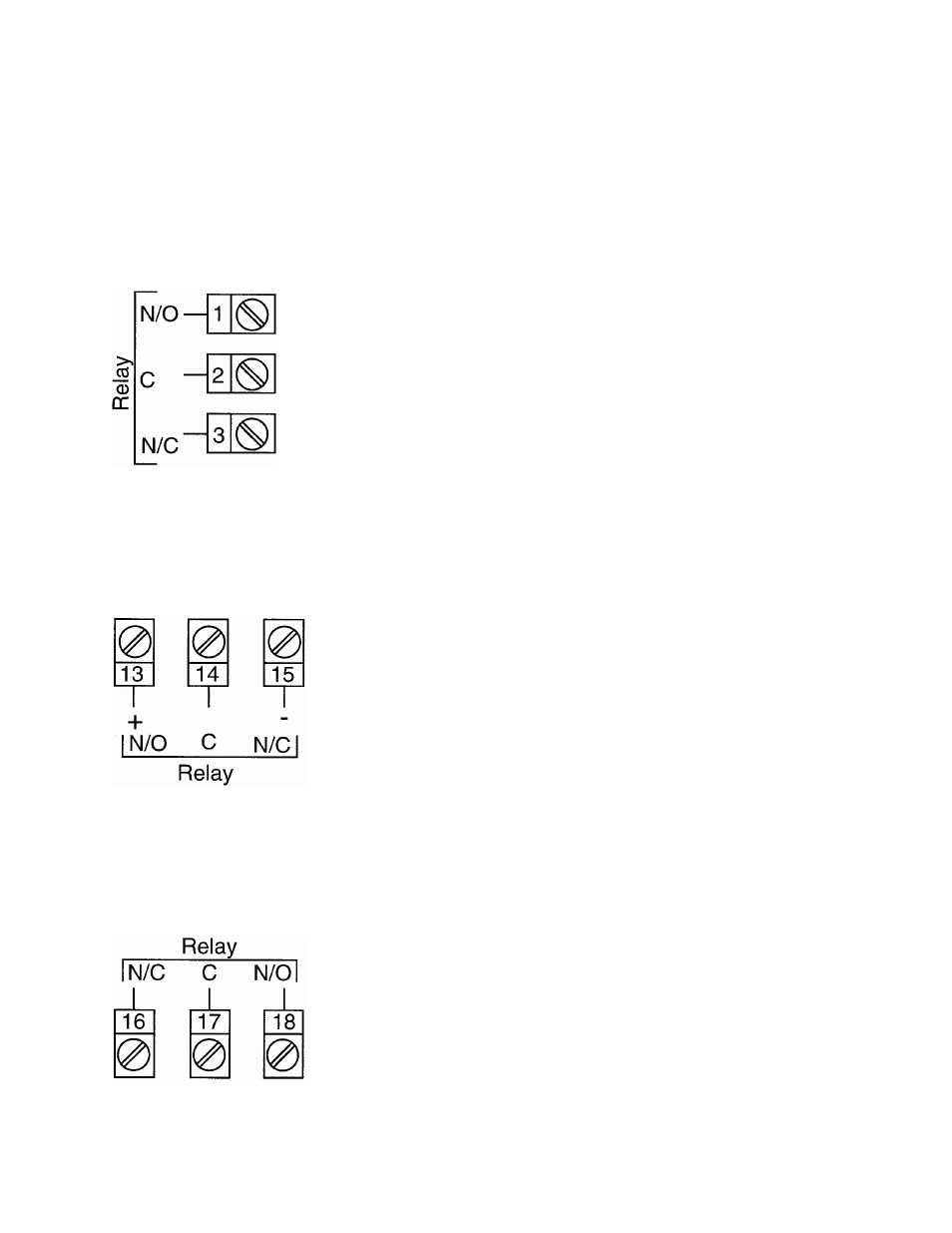

2.5 Output Connections


FIGURE 2-13
Relay Output 1
Connections are made to Output 1 relay as illustrated below. The contacts are rated at
5 amp resistive, 120/240 VAC.



FIGURE 2-14
Relay Output 2 (Alarm or Annunciator)
Connections are made to Output 2 relay as illustrated below. The contacts
are rated at 2 amp resistive, 120/240 VAC.



FIGURE 2-15
Relay Output 3 (Alarm or Annunciator)
Connections are made to Output 3 relay as illustrated below. The contacts are rated at
2 amp resistive, 120/240 VAC.
