Despatch MIC1162 Hi-limit - Manual (Page 15)

11

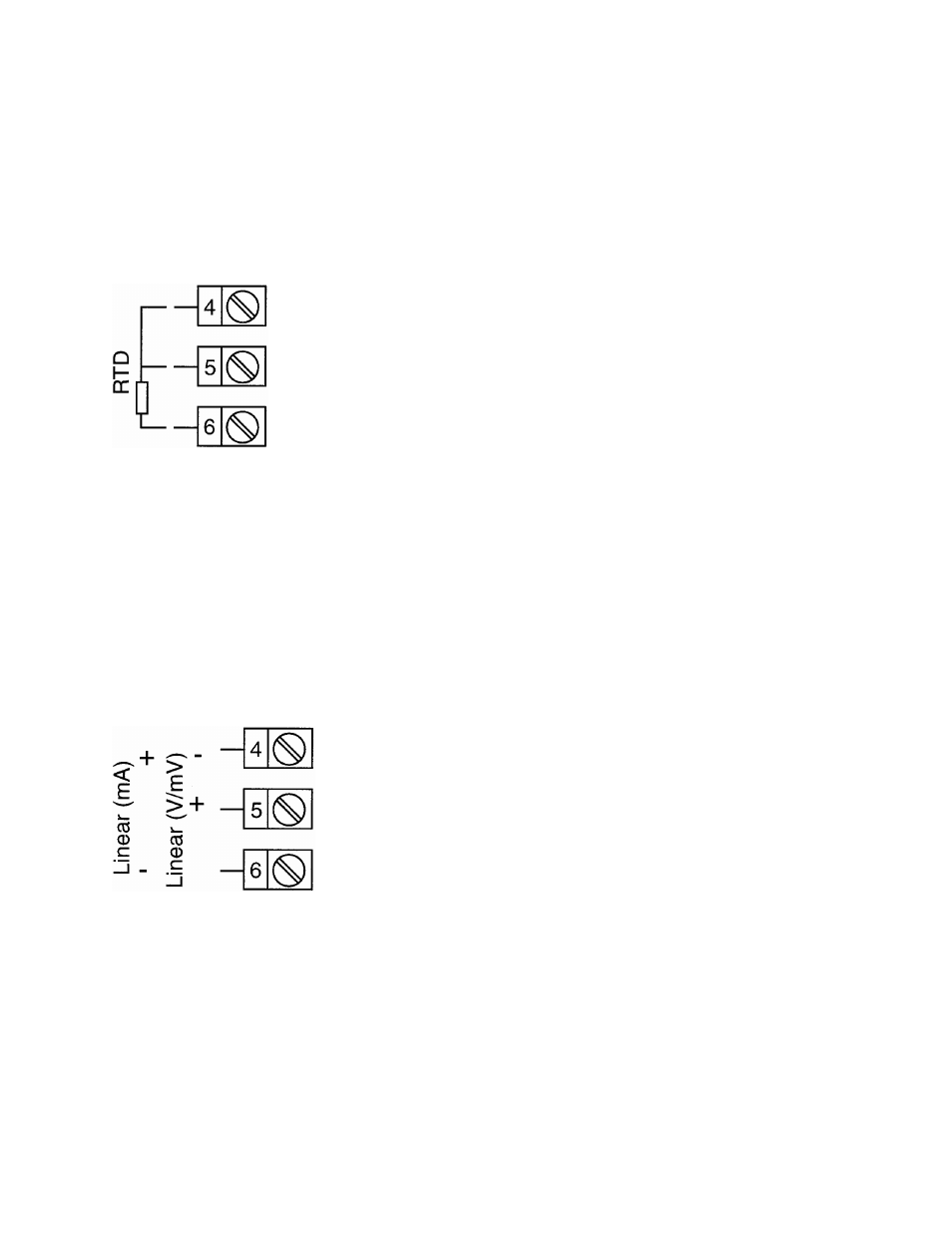

RTD Input
Make RTD connections as illustrated below. For a three wire RTD, connect the
resistive leg of the RTD to terminal 6 and the common legs to terminals 4 and 5. For a
two wire RTD, connect one leg to terminal 5 and the other leg to terminal 6 as shown
below. A jumper wire supplied by the customer must be installed between terminals 4
and 5. Input conditioning jumper must be positioned correctly (see Appendix A) and
Hardware Definition Code must be correct (see Appendix B).
FIGURE 2-10
Volt, mV Input
Make volt and millivolt connections as shown below. Terminal 5 is positive and terminal
4 is negative. Input conditioning jumper must be positioned correctly (see Appendix A)
and Hardware Definition Code must be correct (see Appendix B).
mADC Input
Make mADC connections as shown below. Terminal 4 is positive and terminal 6 is
negative. Input conditioning jumper must be positioned correctly (see Appendix A) and
Hardware Definition Code must be correct (see Appendix B).
