COATS RC150EX, RC200EX Tire Changer User Manual
Page 16
12 •
Important: Always read and follow operating instructions.
Demounting Small 6-inch To 8-inch Diam-
eter Wheels/Tires

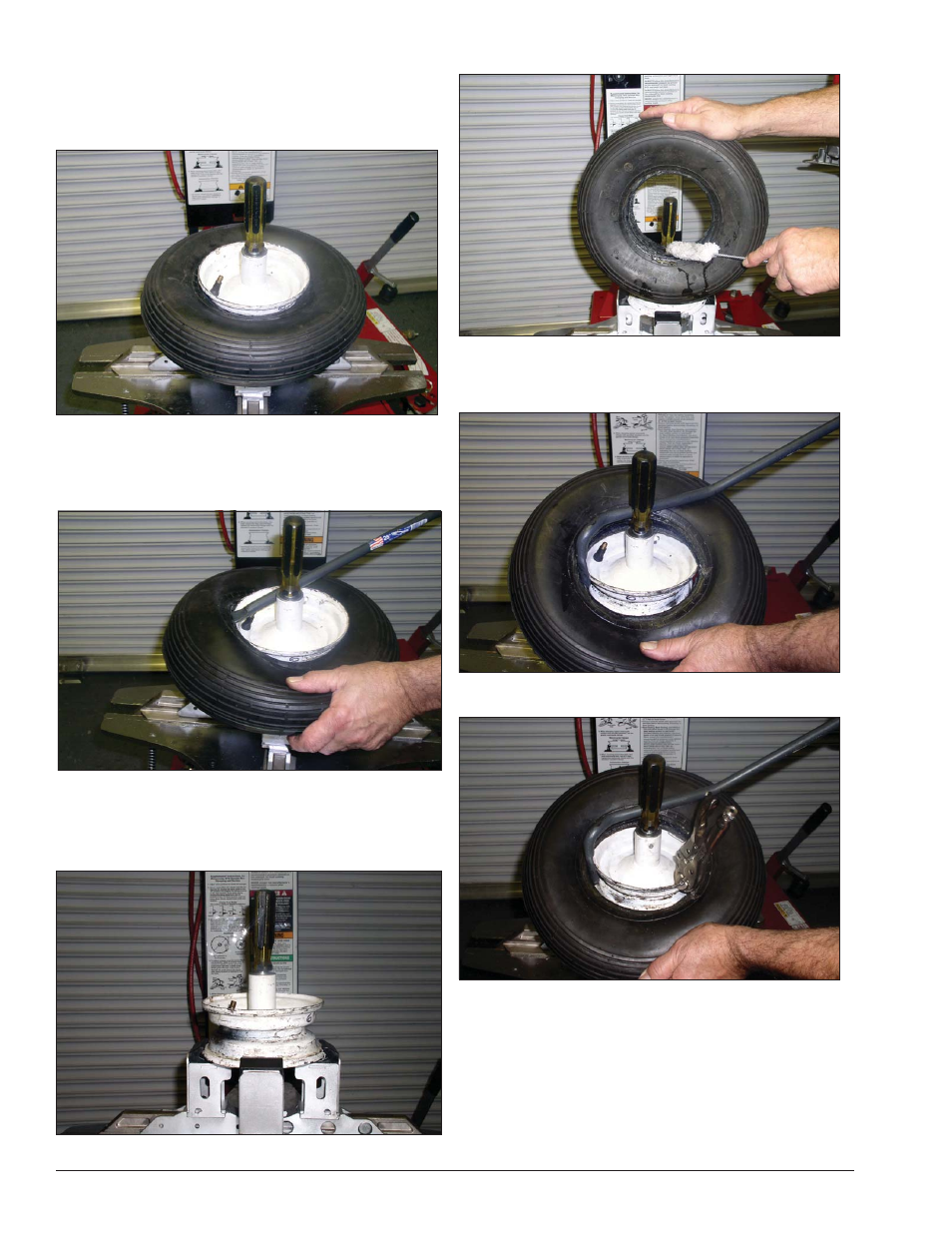

B201.
After loosening beads, clamp the wheel and
lubricate the tire beads; also place a fulcrum into the
wheel center hole.
B202.
Position the Snake™ tool and remove the top
bead. Next remove the second bead.
Note: The Snake™ tool is a product of Ken-Tool® and
can be purchased through most tire supply companies.
Mounting Small 6-inch To 8-inch Diameter
Wheels And Tires
B203.
Wheel shown clamped with a fulcrum placed
in the wheel center.
B204.
Lubricate the beads and rim.
B205.
Use Snake™ tool to install both beads.
Note: The Snake™ tool is a product of Ken-Tool® and
can be purchased through most tire supply companies.
B206.
A pair of regular vice-grip type pliers attached
to the rim may be used to hold the bead lock.
