Important: Always read and follow operating instructions.

• 7

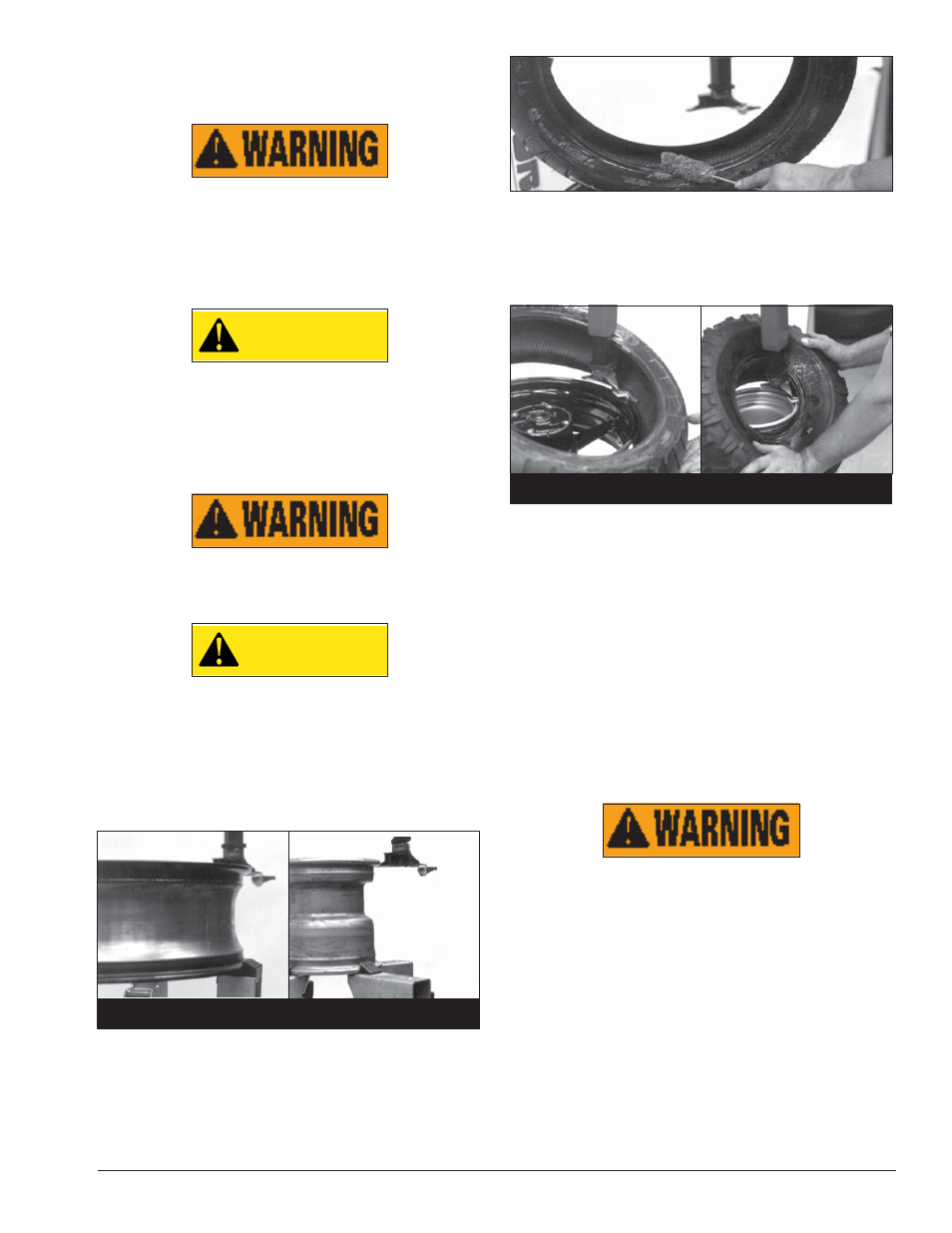

Tire Mounting

This information must be read and followed carefully to

prevent accidents and injuries during mounting.

Check tire and wheel carefully before mount-
ing. Make sure the tire bead diameter and
wheel diameter match exactly. Consult
the Rubber Manufacturer’s Association
for approved rim widths for tire sizes. Mis-
matched tires and wheels explode.

CAUTION

Never Mount a tire and wheel handed to you
by anyone without checking both tire and
wheel for damage and compatibility. Be extra
cautious of persons without knowledge of
tire service. Keep by-standers out of service
area.

Never mount a damaged tire. Never mount a
tire on a rusty or damaged wheel. Damaged
tires and/or wheels may explode.

CAUTION

If you damage the tire bead during mounting,
STOP!, remove the tire and mark it as dam-
aged. Do not mount a damaged tire.

Inspect the wheel closely for damage. Clean the

wheel and remove any light corrosion or rubber residue

(Figure 12). Do not attempt to service heavily corroded

wheels.

Figure 12 - Inspect and Clean the Wheel

Inspect tire for damage, paying close attention to the

beads. Verify size match between tire and wheel (Figure

12).

Lubricate tire beads liberally with tire manufacturer

approved lubricant (Figure 13).

Figure 13 - Lubricate Beads

Place tire over wheel and move swing arm into posi-

tion. Position the tire so that the lower bead is above the

rear extension of the mount/demount tool and below the

front knob (Figure 14).

Figure 14 - Position Tire Against Mount/Demount Tool

Depress table top pedal and rotate the wheel to

mount the lower bead. Use the drop center of the wheel

to reduce the tensional force on the bead by pressing

down on the tire directly across from the mount tool.

Rotate table top until lower bead is fully mounted.

For top bead, rotate the table top until the valve

stem is directly across from the mount tool. Lift the

upper bead up and over the rear of the mount tool. With

your left hand press down on the tire between the mount

tool and the valve stem to hold the tire in the drop center.

Depress the table top pedal and rotate the tire until the

bead is mounted. Continue to press down on the tire

during the remaining mounting process.

Do not force the tire onto the rim. Bead dam-
age could result making the tire unsafe and/
or creating the risk of injury.

NOTE: If table top rotation stalls, reverse the table top

momentarily until the tire bead is again loose on the

wheel. Reposition the mount tool, make sure the bead is

correctly positioned in the drop center of the wheel, then

attempt mounting again.

NOTE: For low profile or stiff sidewall tires, it may be

advantageous to use the bead lifting tool to initially hold

the upper bead down in the drop center, or use drop

center tools.

NOTE: For tube type tires, mount the lower bead first,

move swing arm out, install the tube, and then mount

the upper bead.
