Parts identification – COATS Kit 85000443, PAX Accessory User Manual
Page 4
85000454 02 08/09
© Copyright 2007 Hennessy Industries and COATS
All Rights Reserved
Printed in USA
Parts Identification

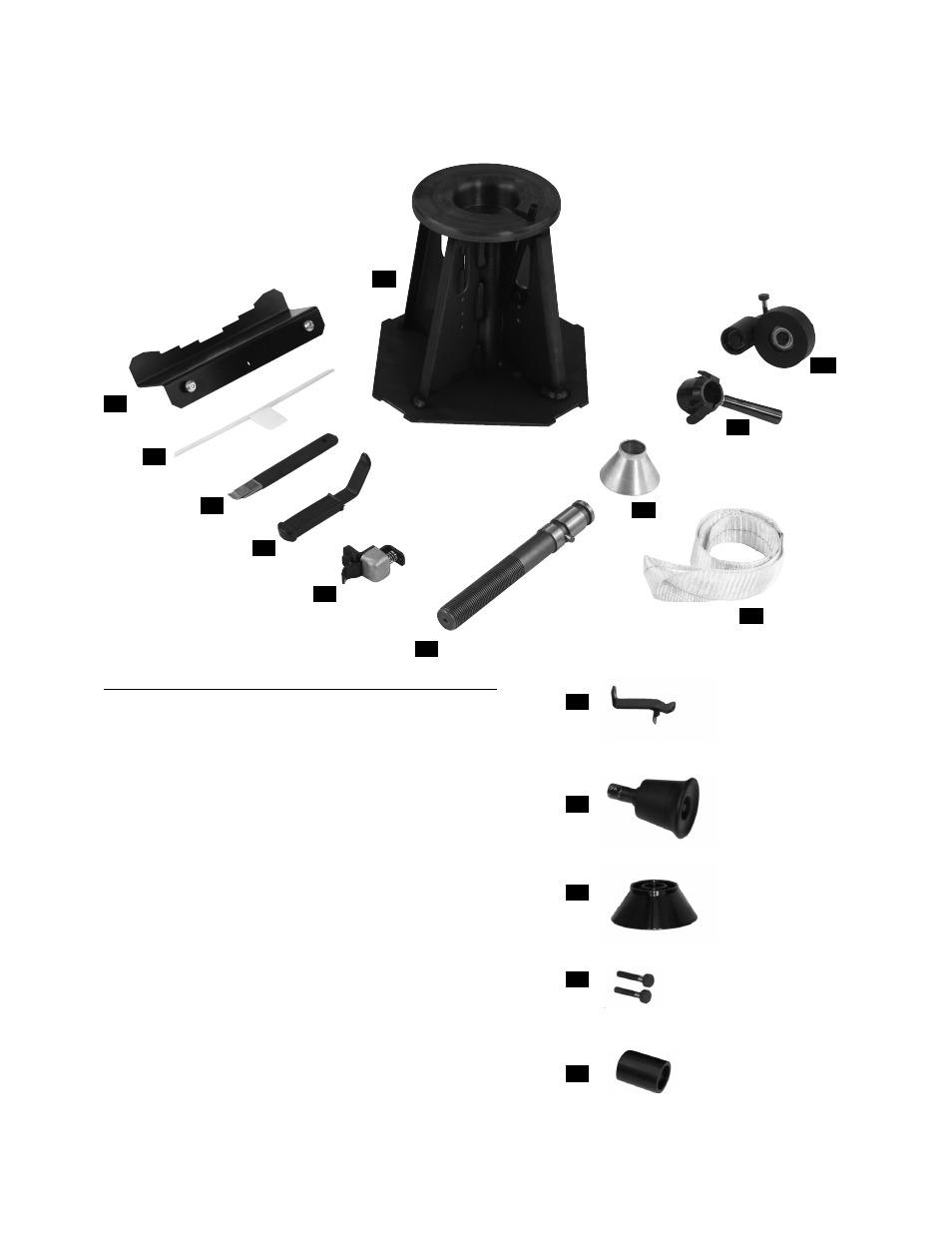

Kit 85000443 includes the following Items
Item
Part No.
Description
1
85000300
PAX Riser
2
85000203
Zee Bracket Assembly
3
85000447
Plastic Protectors
4
85000448
PAX Bead Lift Tool
5
85000449
Bead Flip Tool
6
85000451
Spring Loaded Bead Lock Tool
7
85000301
Removable Center Shaft
8
85000444
Centering Cone, 40-100 mm
9
85000446
Hub Nut
10
85000453
Dual Roller Tool
11
85000385
PAX Nylon Web Slings (2)
12
85000455
Plain Bead Lock Tool
13
85000456
Tapered Roller
14
85000445
Centering Cone, 88-175 mm
15
85000726
Tool Holder Pin
16
85000450
PVC Nylon Roller
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
