12 - System Map: Front, Left, Right & Rear Views (Models C & D)
Concise User’s Guide
English
System Map: Front, Left, Right & Rear Views (Models C & D)
Front

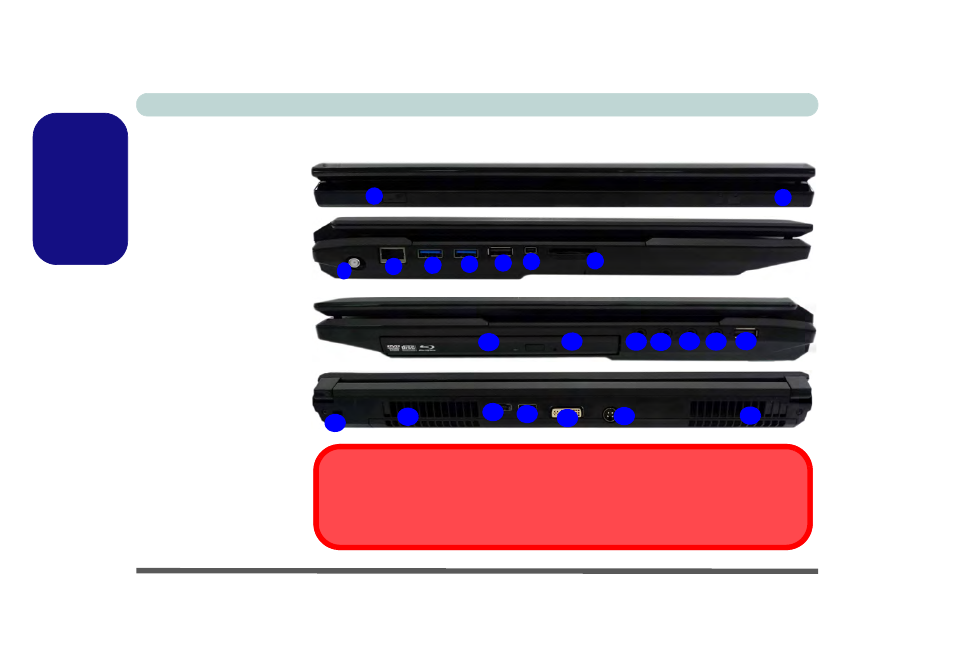

Figure 7 - Front, Left, Right &
Rear Views (Models C & D)
1. Infrared Receiver
2. LED Power Indicators
3. RJ-45 LAN Jack
4. USB 3.0 Ports (see USB on
page 11 )
5. USB 2.0 Port (see USB on
page 11 )
6. Cable (CATV) Antenna Jack
7. Mini-IEEE 1394a Port
8. Multi-in-1 Card Reader
9. Optical Device Drive Bay
10. Emergency Eject Hole
11. Headphone Jack
12. Microphone Jack
13. S/PDIF-Out & Surround-Out
Combo Jack
14. Line-In Jack
15. USB 2.0 Port
16. Security Lock Slot
17. Vent
18. eSATA/USB 2.0 Combo Port
19. HDMI-Out Port
20. DVI-Out Port
21. DC-In Jack

Overheating
To prevent your computer from overheating make sure nothing blocks any vent while the com-
puter is in use.
5 8
6
7
2
3 4
9 10 12 14 13
4
16
18
15
17 17 19
20 21
1
11
Front
Left
Right
Rear
