1

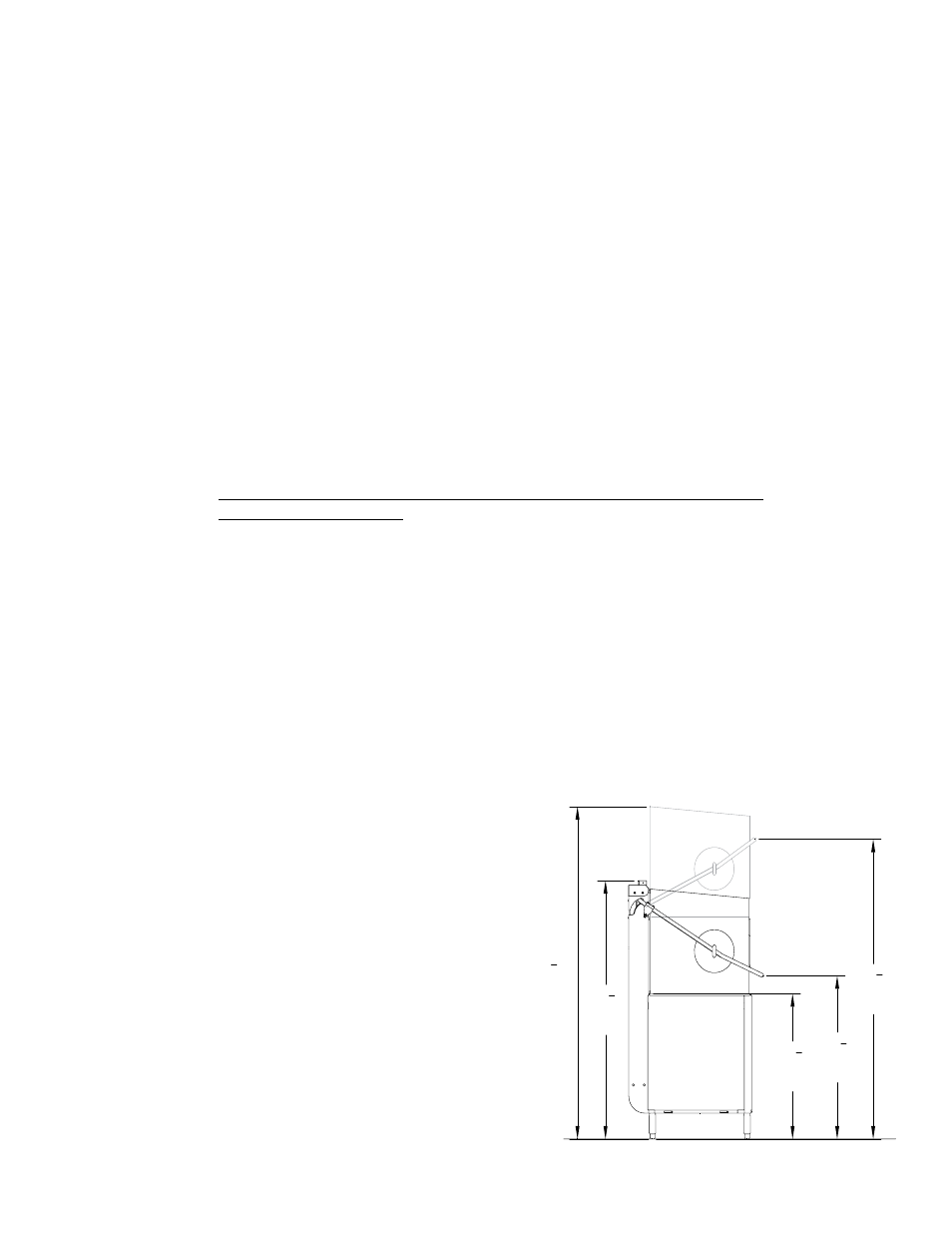

1. Move the dishwasher near its permanent location.
2. Compare the installation site utility connections with the dishwasher utility connections and
make sure they are the same.
3. The typical dishwasher load height is 33¾" [857mm].
4. The machine height is 60-1/8" [1526mm].
5. The dishwasher hood requires an open height of 77¼" [1963mm].
6. For straight-through operation, provide 20" [508mm] clearance out from the front of the
machine and 20" [508mm] out from the left-side of the machine by 27" [686mm]
clearance above the floor for servicing.
7. For servicing a corner operation
machine, provide 35" [889mm]
clearance out from the front of
the machine under the right-hand
tabling, 35" [889mm] out from the
left-hand of the machine under the
left-hand tabling and 35" [889mm]
out from the front of the machine.
Provide 27" [686mm] clearance
above the floor on all sides.
NOTE:
The installation of your dishwasher must be performed by qualified service personnel.
Problems due to improper installation are not covered by the Warranty.
NOTE:
The installation of the dishwasher must comply with all local electrical, plumbing, health and
safety codes or in the absence of local codes, installed in accordance with the applicable
requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC),
Part 1, CSA C22.1; and the Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations, NFPA 96.
NOTE:
The installation of the dishwasher must comply with local health codes.
1. Inspect the outside of the dishwasher carton for signs of damage.
2. Remove the carton and inspect the dishwasher for damage.
3. Check for any options or accessories that may have shipped with your dishwasher.
4. Turn to the front of this manual and follow the instructions to register your
product online or by fax.
Installation
Receiving
60 18
[1526]
33 34
[857]
37 78
[963]
HOOD
OPEN
HEIGHT
77 14
[1963]
69 34
[1770]
"
"
"
"
"
Placement
CAUTION:
Be careful when lifting and moving the dishwasher to prevent damage to the machine.
